FR-2000-AA

19″ Rack for Mini-type Products with Redundant AC Power Inputs

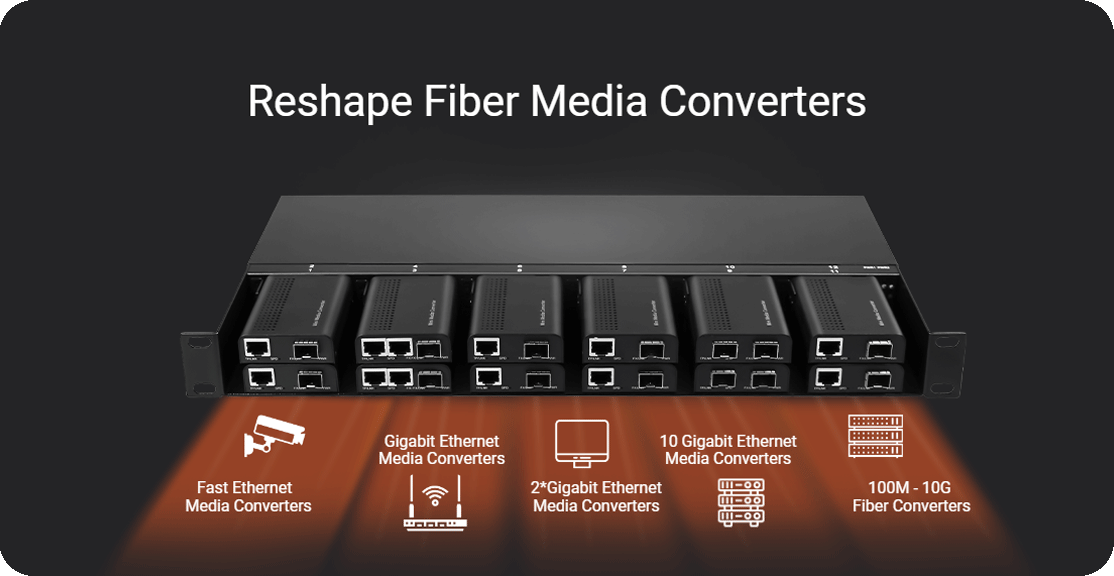

FR-2000-AA is a 19-inch rackmount chassis that accommodates up to 12 standalone media converter modules with hot-swappable installation. By default, the system is powered by an AC power supply and supports a redundant power module to ensure 24/7 continuous operation and network reliability.

Redundant AC
Rack mount
0-60℃

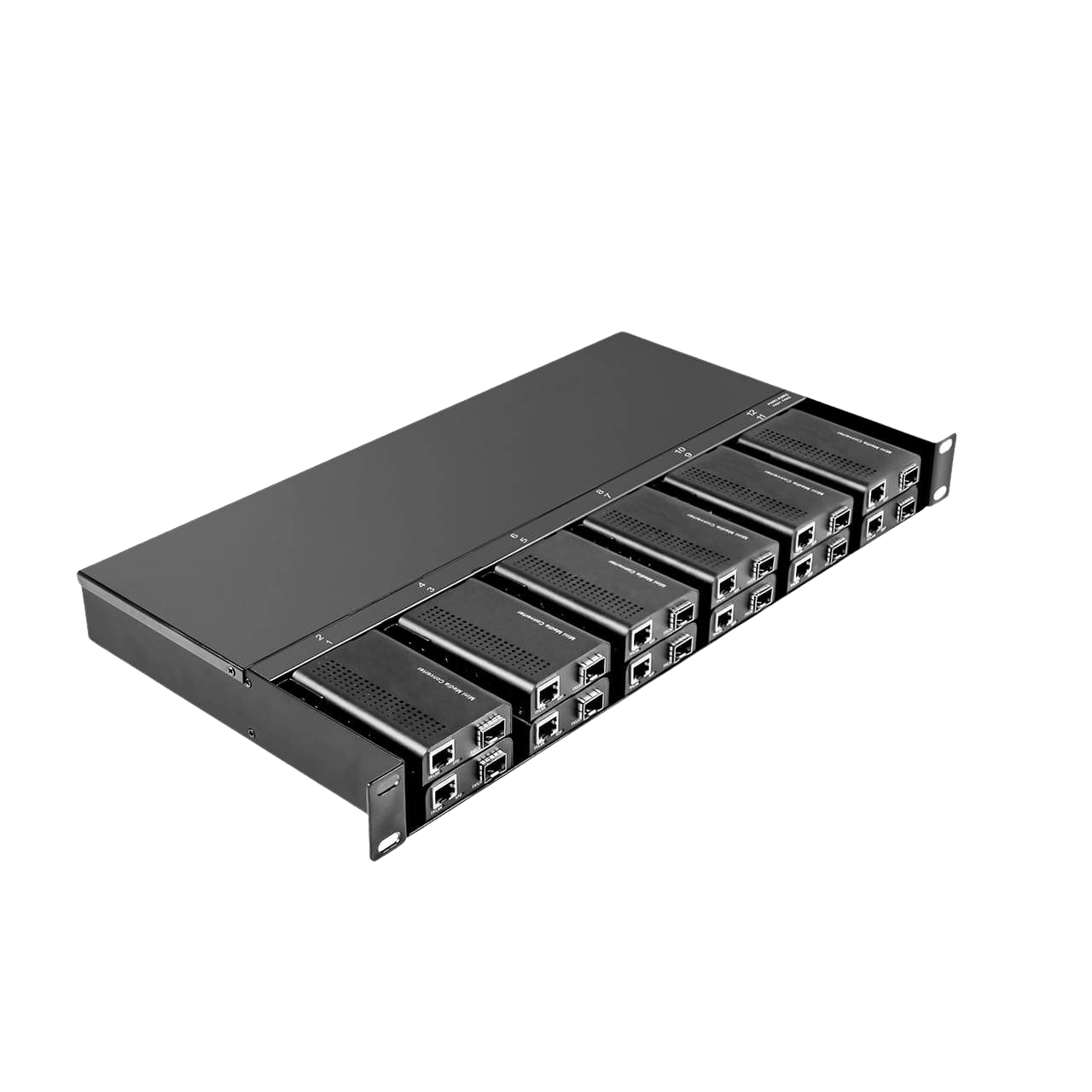

Houses and Powers up to 12 Mini Media Converters

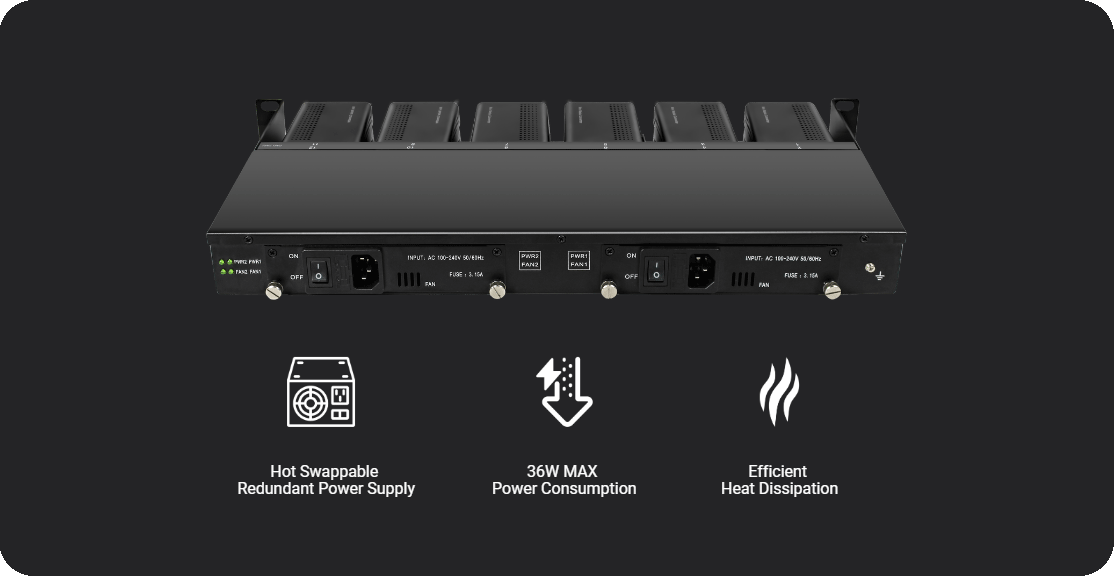

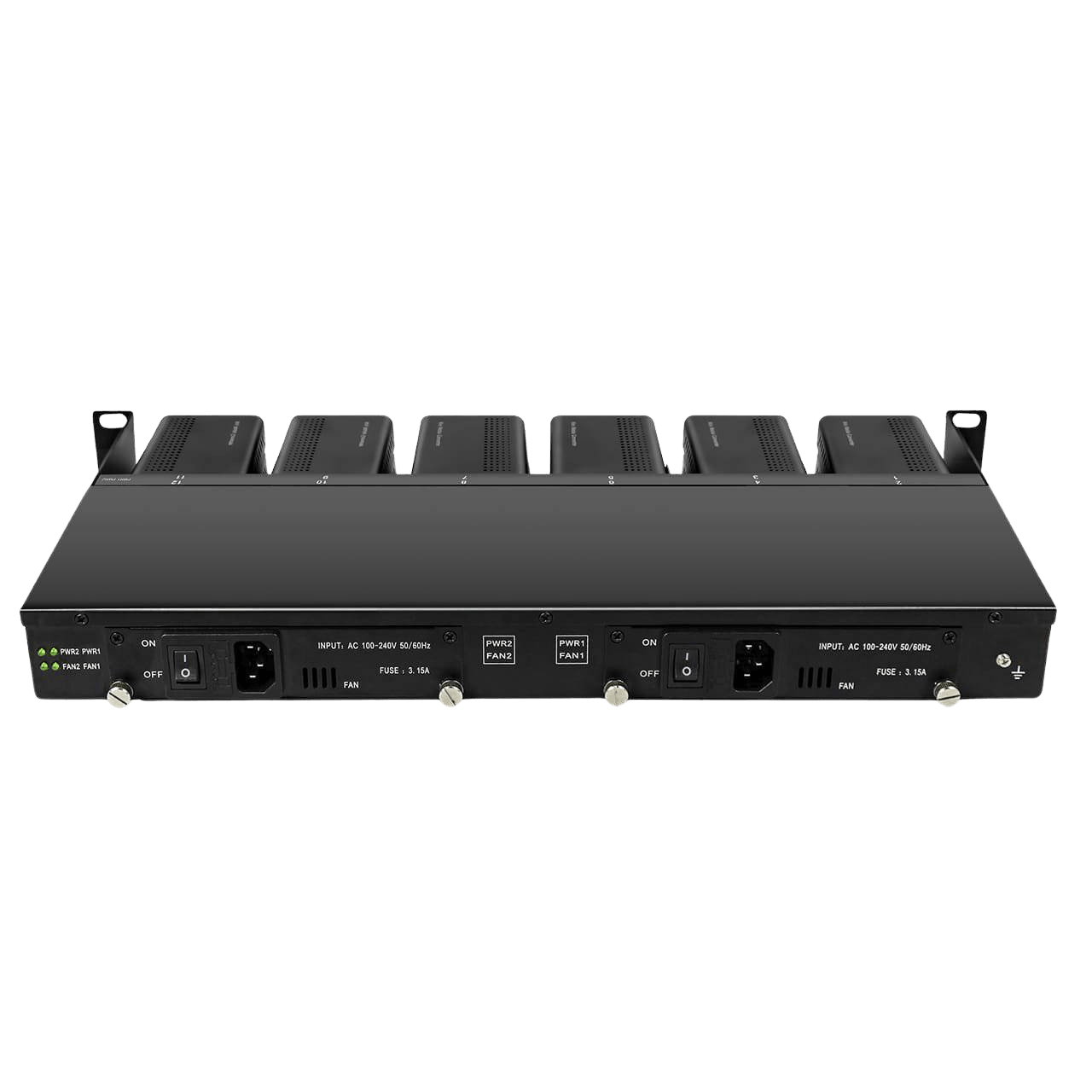

Redundant Power Supply to Ensure Non-stop Reliable Operation
Mounted Two Cooling Fans for Better Ventilation
Hot-swappable Mini Unmanaged Media Converters Modules
Fits A Standard 19” Rack – 1U Height
LED Indicators Keep You Informed at A Glance for Input Power

Specifications

Slots

12-solts in front for silde-in-modules

LED Indicators

Power, Fan A, Fan B (On: operating; Off: device or fan fail)

Dimensions

440mm×245mm×45mm

Enclosure

Metal

Power Requirement

Universal input 100~240V, 50/60Hz, 3.0~1.5A Redundant Power Supply

Shipping Weight

3.2kg

Environment

Temperature: 0~60℃ (operating) -20~70℃ (storage) Humidity: 0~90% (non-condensing)

Compliance

FCC Class A, CE-mark

AVAILABLE MODELS

19″ Rack for Mini-type Products with Redundant AC Power Inputs

TypeVersionRelease Date

Datasheet

FR-2201-XX Series_FR-2203-XX Series_FR-2000-AA_Compact Media Converters Datasheet

Datasheet

Dimensions (W×D×H)

440mm×245mm×45mm
