FR-2206

Mini-Type 2-port 10/100/1000Base-TX to 1-port 1000Base-SFP Ethernet Media Converter

The Mini Type Ethernet Media Converter provides flexible solutions for extending Ethernet communication over fiber through SFP interfaces. It supports high-speed Ethernet transmission and includes intelligent features such as link fault pass-through, auto laser shutdown, and port speed configuration for stable network operation.

Unmanaged
Single DC
Mini-type
Desktop
0-60℃

Enquire Now

Auto-Negotiation – automatically determines the best connection speed
Wall mountable using the integrated mounting holes

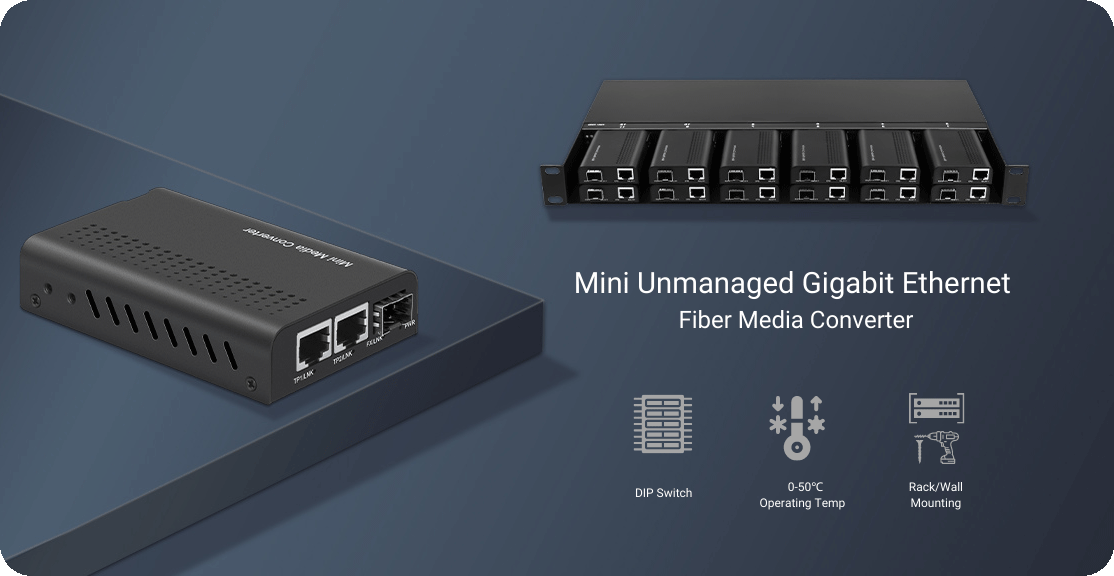

Rack mountable using the optional 19 inch 1U rack
Gigabit ethernet, SFP supports single-mode and multimode, single or dual fiber options up to 120km
1Gb LAN to 10G SFP+ port supports Single-mode and multimode, single or dual fiber options
Supports up to 10K Bytes Jumbo Frame

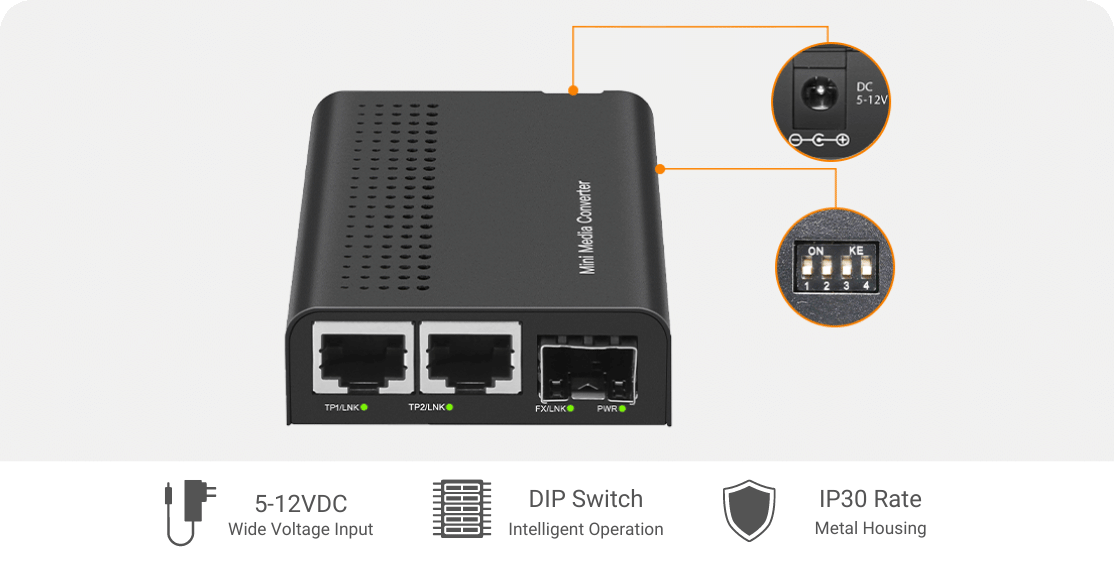

Build-in DIP switch supported including LFPT, auto laser shutdown, port speed setting, etc.

Physical Port

Model

FR-2206

Copper Port

2× 10/100/1000Base-TX

Optical Slot

1× 1000Base-SFP

LEDs

Power, SFP Link/Activity, RJ45 Link/Activity, RJ45 Speed

Cables

UTP

CAT5 or above, Max. length up to 330 ft. (100 m)

Fiber Optic

1000BASE-SX: 50/125, 62.5/125, or 100/140-µm Multimode 550m; 1000BASE-LX: 8.3/125, 8.7/125, 9/125, or 10/125-µm Single-mode 10km

Ordering Information

Mini-Type 2-port 10/100/1000Base-TX to 1-port 1000Base-SFP Ethernet Media Converter

TypeVersionRelease Date

Datasheet

FR-2222_FR-2206_FR-2000-AA_Compact Media Converters Datasheet

Datasheet

Download

2D Drawing

Download

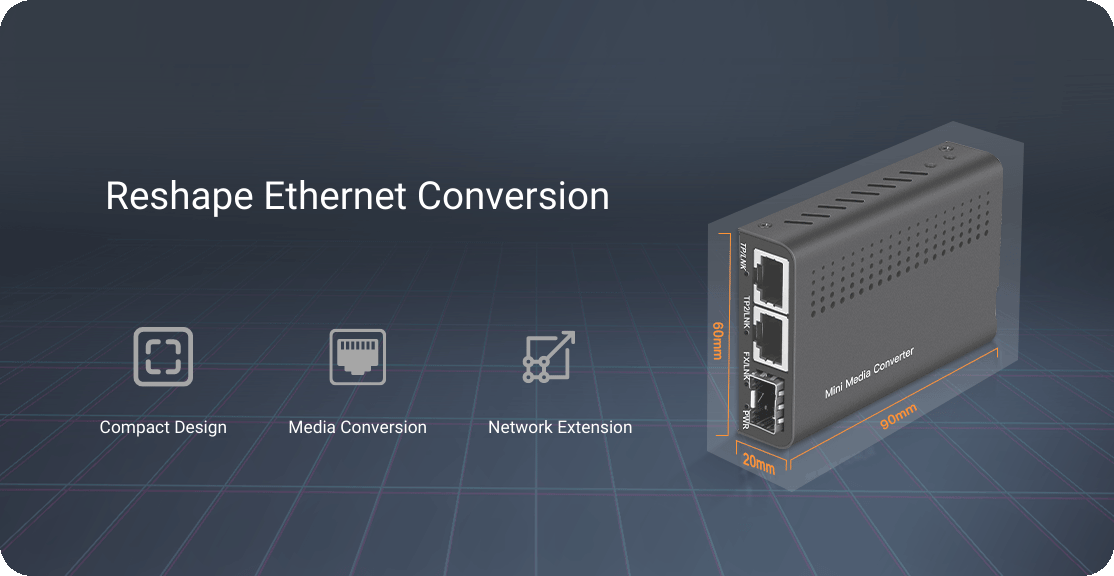

Dimensions (W×D×H)

2 Port Fiber Media Converter

Gigabit Ethernet Converter

2 Port Gigabit Fiber Media Converter
