Media Converters

Compact Media Converters

FR-2222

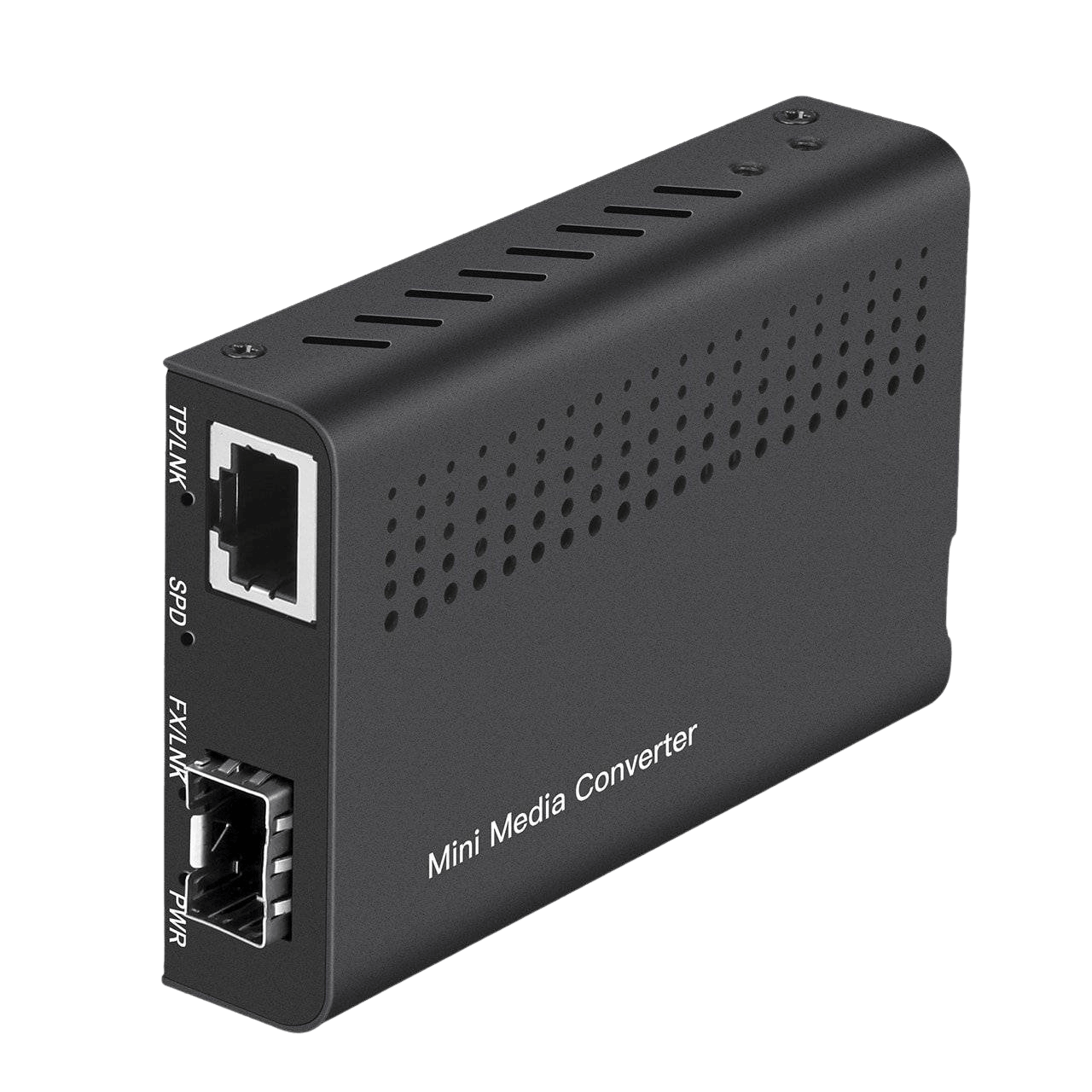

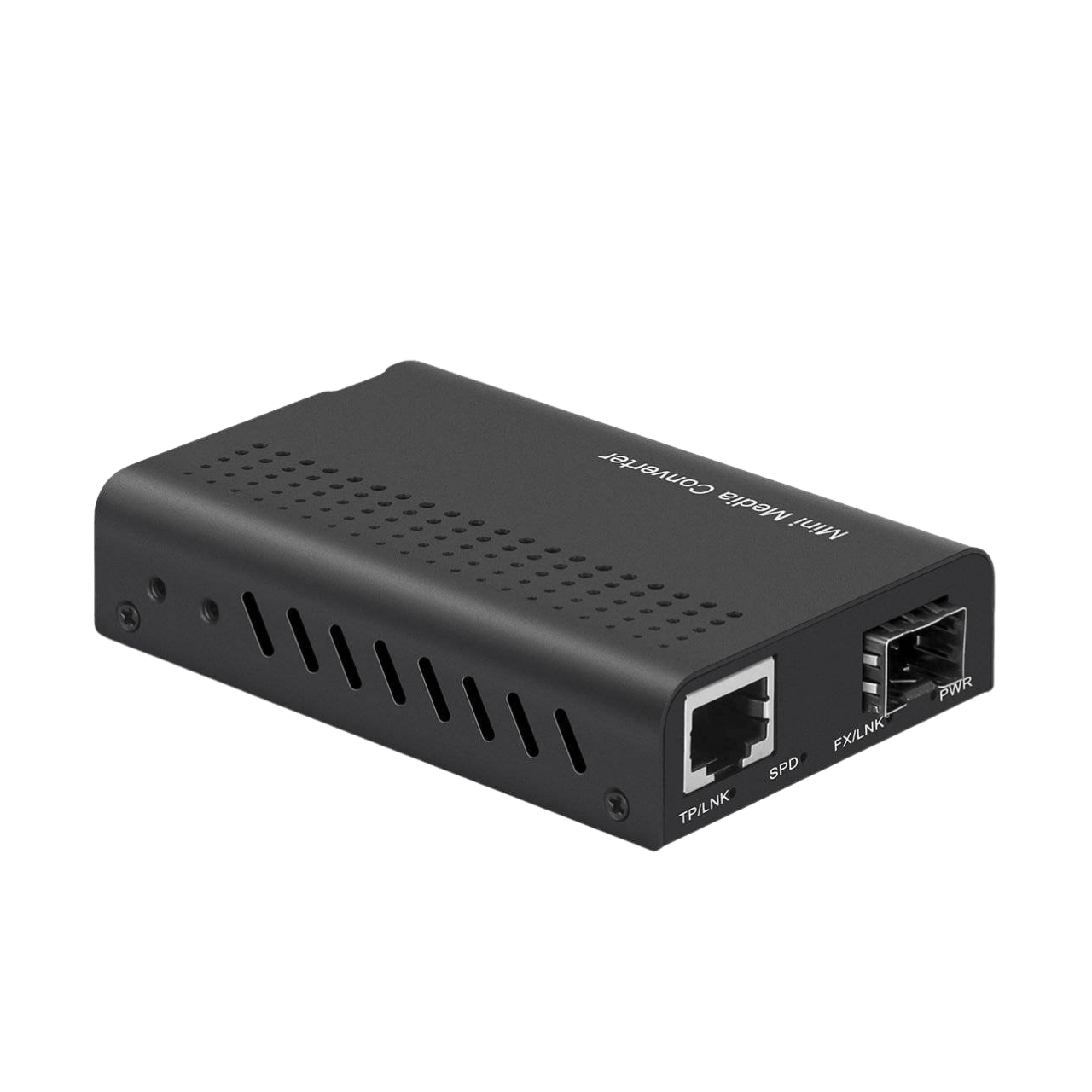

Mini-Type 10/100/1000M/2.5G/5G/10GBase-TX to 1.25G/2.5G/5G/10GBase-SFP Plus Ethernet Media Converter

The Mini Type Ethernet Media Converter provides flexible solutions for extending Ethernet communication over fiber through SFP interfaces. It supports high-speed Ethernet transmission and includes intelligent features such as link fault pass-through, auto laser shutdown, and port speed configuration for stable network operation.

  • Unmanaged
  • Single DC
  • Mini-type
  • Desktop
  • 0-60℃
Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
  • Auto-Negotiation – automatically determines the best connection speed
  • Wall mountable using the integrated mounting holes
  • Rack mountable using the optional 19 inch 1U rack
  • Gigabit ethernet, SFP supports single-mode and multimode, single or dual fiber options up to 120km
  • 1/2.5G/10Gb LAN to 10G SFP+ port supports Single-mode and multimode, single or dual fiber options
  • Supports up to 10K Bytes Jumbo Frame

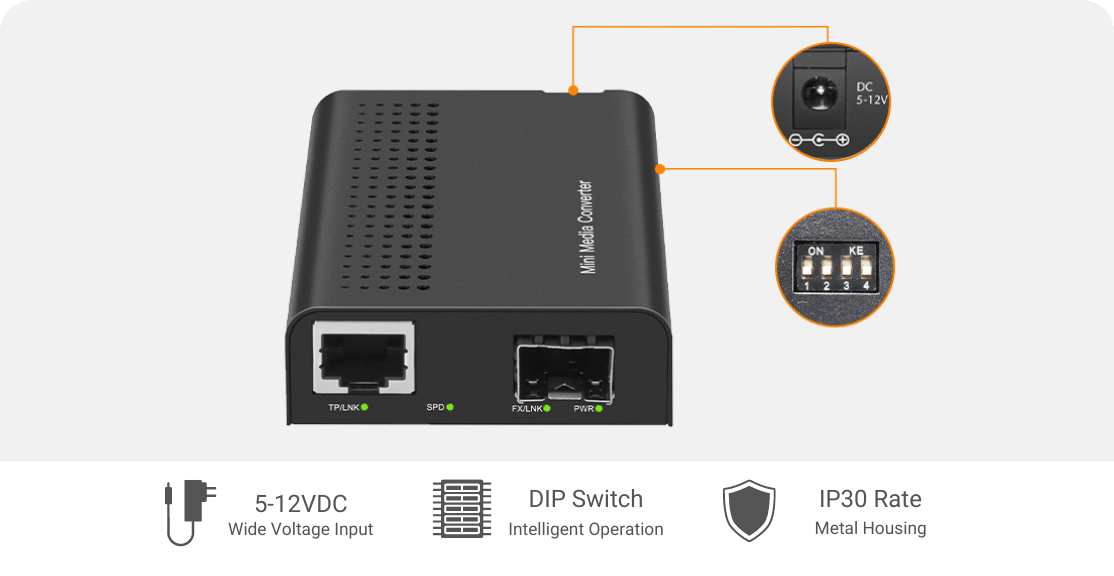

  • Build-in DIP switch supported including LFPT, auto laser shutdown, port speed setting, etc.
Physical Port
Model
FR-2222
Copper Port
1× 10GBASE-T RJ45
Optical Slot
1× 10G SFP+
LEDs
Power, SFP Link/Activity, RJ45 Link/Activity, RJ45 Speed
Cables
UTP
CAT6 or above, Max. length up to 100m (CAT6a)
Fiber Optic
Multimode up to 400m; Single-mode up to 10-80km

Ordering Information

Mini-Type 10/100/1000M/2.5G/5G/10GBase-TX to 1.25G/2.5G/5G/10GBase-SFP Plus Ethernet Media Converter

TypeVersionRelease Date
Datasheet
FR-2222_FR-2206_FR-2000-AA_Compact Media Converters Datasheet
Datasheet
2D Drawing
2D Drawing
2D Drawing

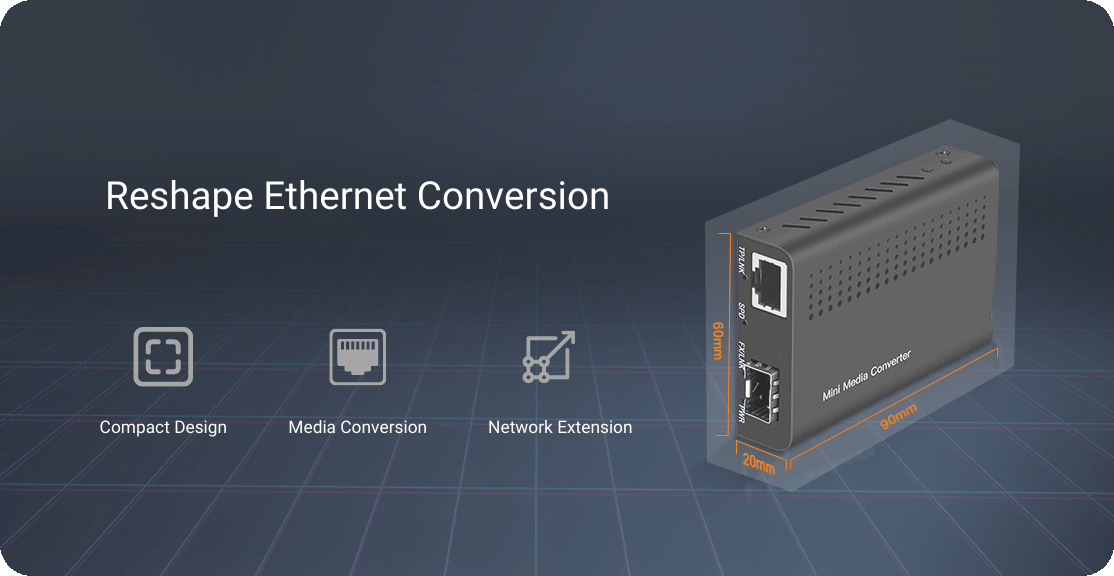

Dimensions (W×D×H)

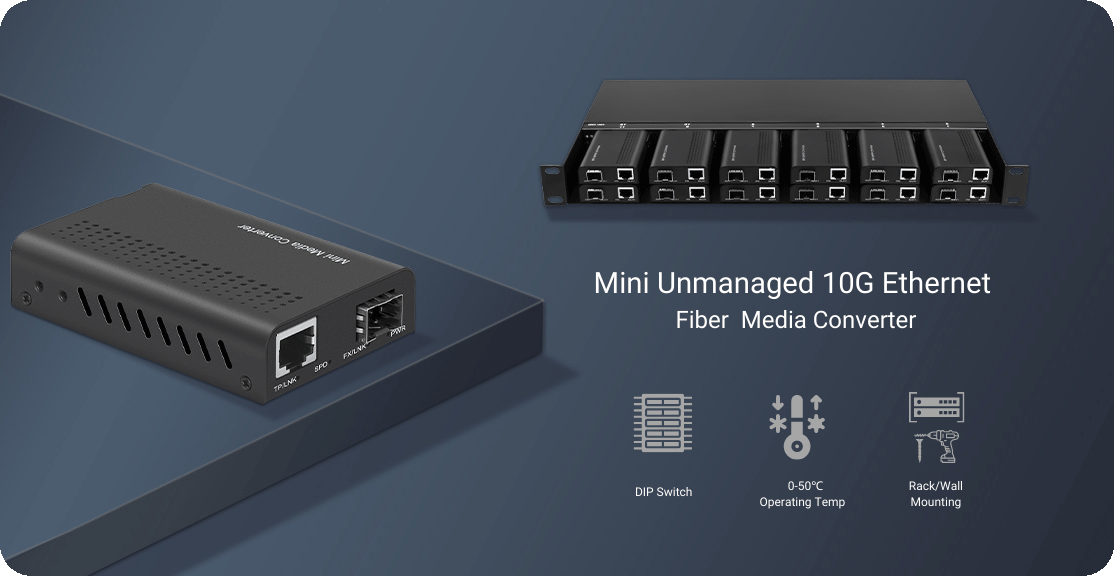

10G Media Converter
10G Media Converter
10G Media Converter Application
10G Media Converter Application
10G Media Converter Deployment
10G Media Converter Deployment
