FR-IPM2003M-1GF1GE-P-30

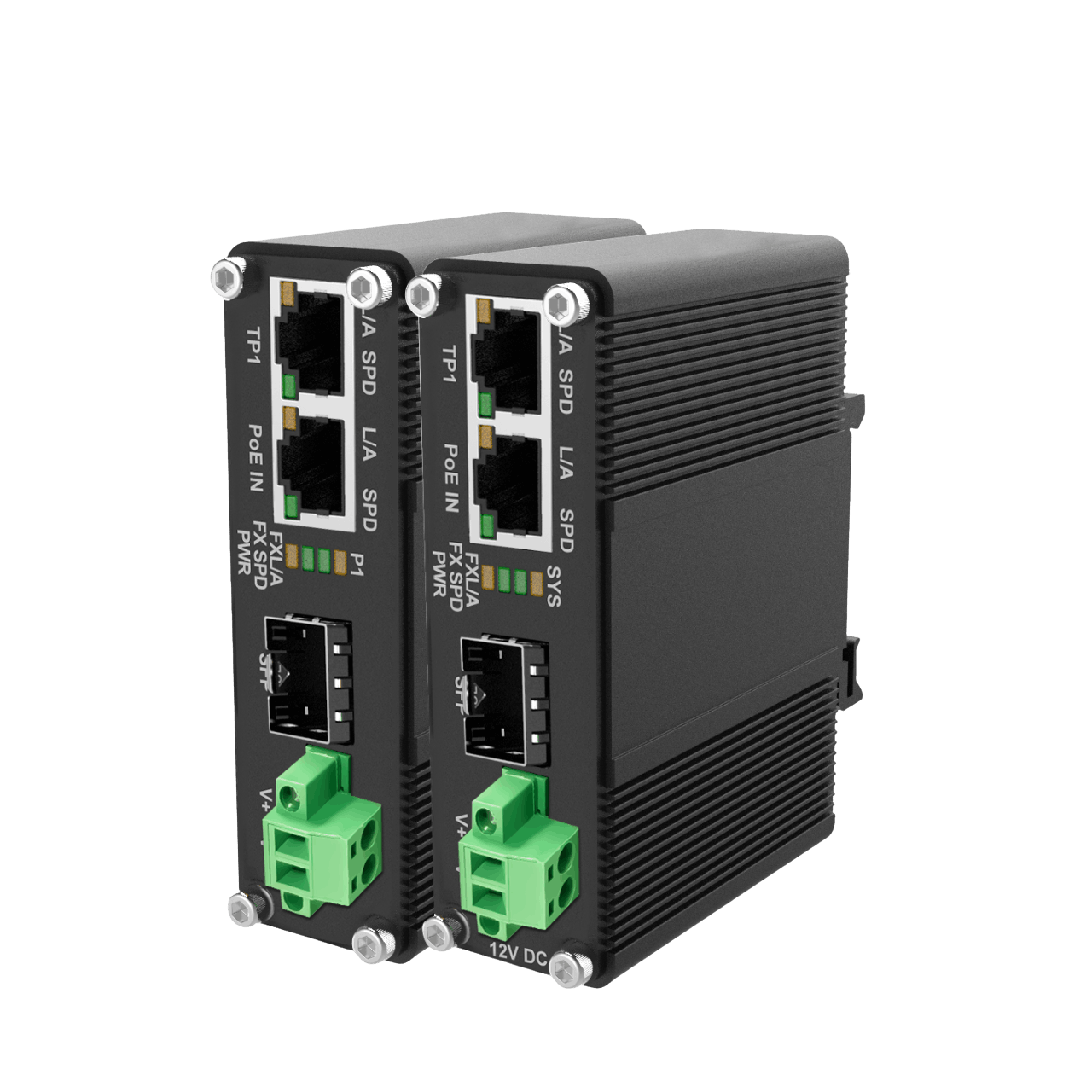

Industrial Gigabit Media Converter (Powered Device) and PoE (802.3at) Splitter with Wide Range DC Power Output

This rugged industrial media converter is engineered for reliable operation in the most demanding environments, supporting an operating temperature range of -30℃ to +70℃. It offers exceptional deployment flexibility by accepting power via either the IEEE 802.3at/bt Standard as a Powered Device (PD) or a traditional DC 36-48V power input. The unit seamlessly bridges fiber and copper networks, featuring one 10/100/1000BASE-T RJ45 port that supplies IEEE 802.3af/at PoE+ to connected devices like wireless access points or IP cameras, and one 1000BASE-X SFP slot for versatile fiber uplink connectivity. This robust design ensures critical network extensions remain stable and powered in harsh industrial, outdoor, and utility settings.

PoE+
Single DC

Enquire Now

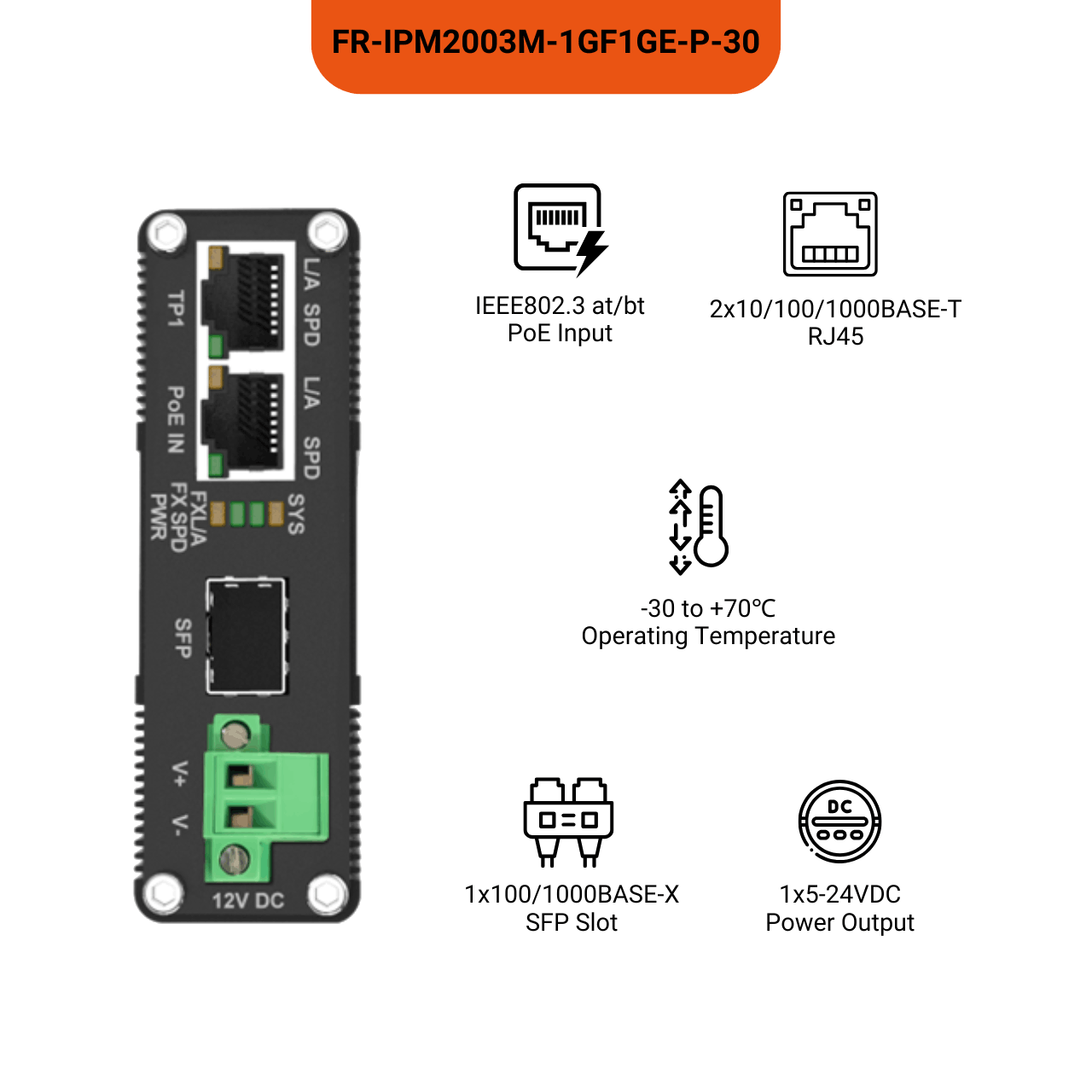

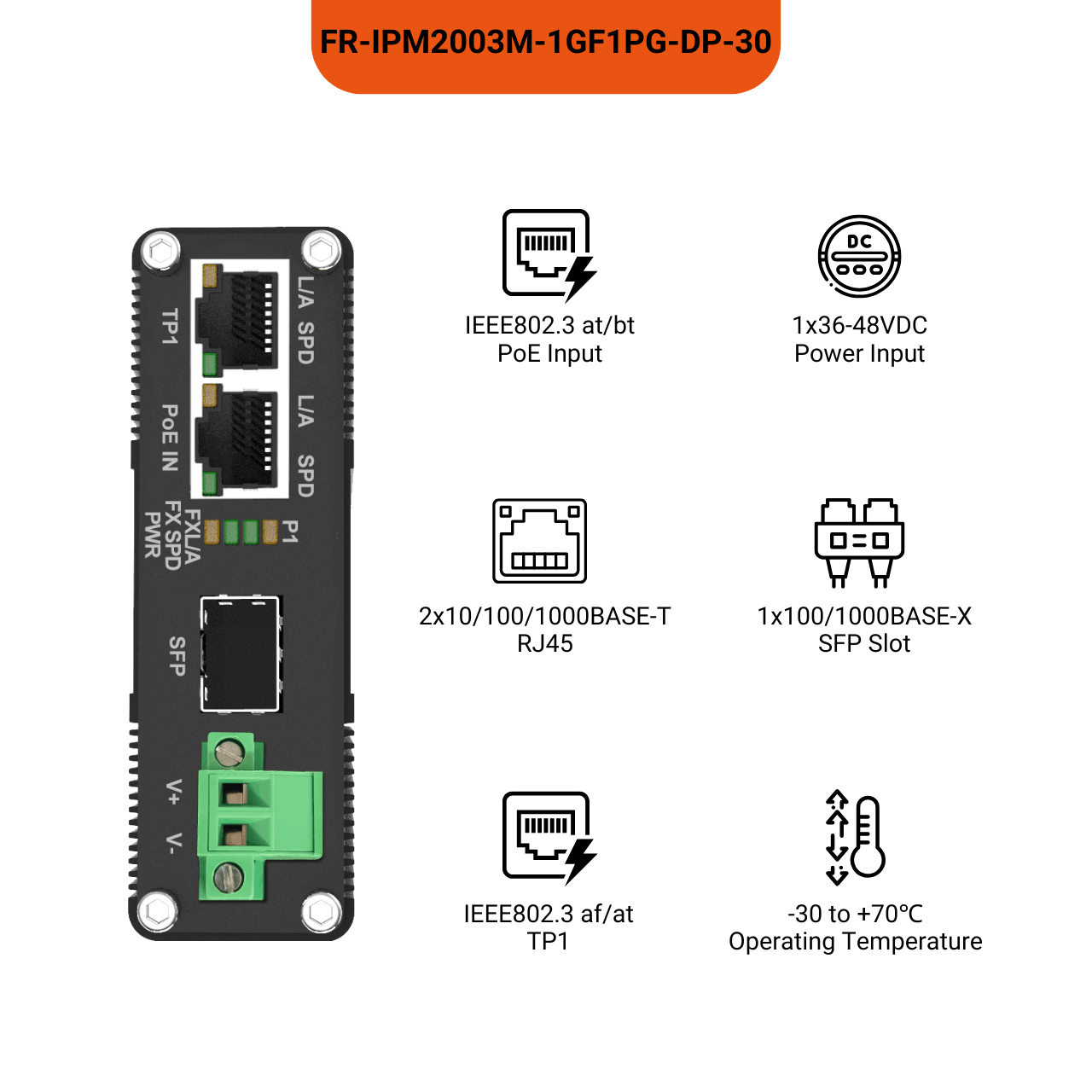

1 x 100/1000BASE-T PoE input port
1 x 10/100/1000BASE-T RJ45
1 x 100/1000BASE-SX/LX SFP slot
SFP slot accommodates multimode or single-mode modules
-30℃ to +70℃ Operating Temperature

Hardware Specifications

Copper Ports

2×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1 and PoE IN), Auto-Negotiation

Fiber Ports

1×100/1000BASE-X SFP Slots

Enclosure

IP40 aluminum case

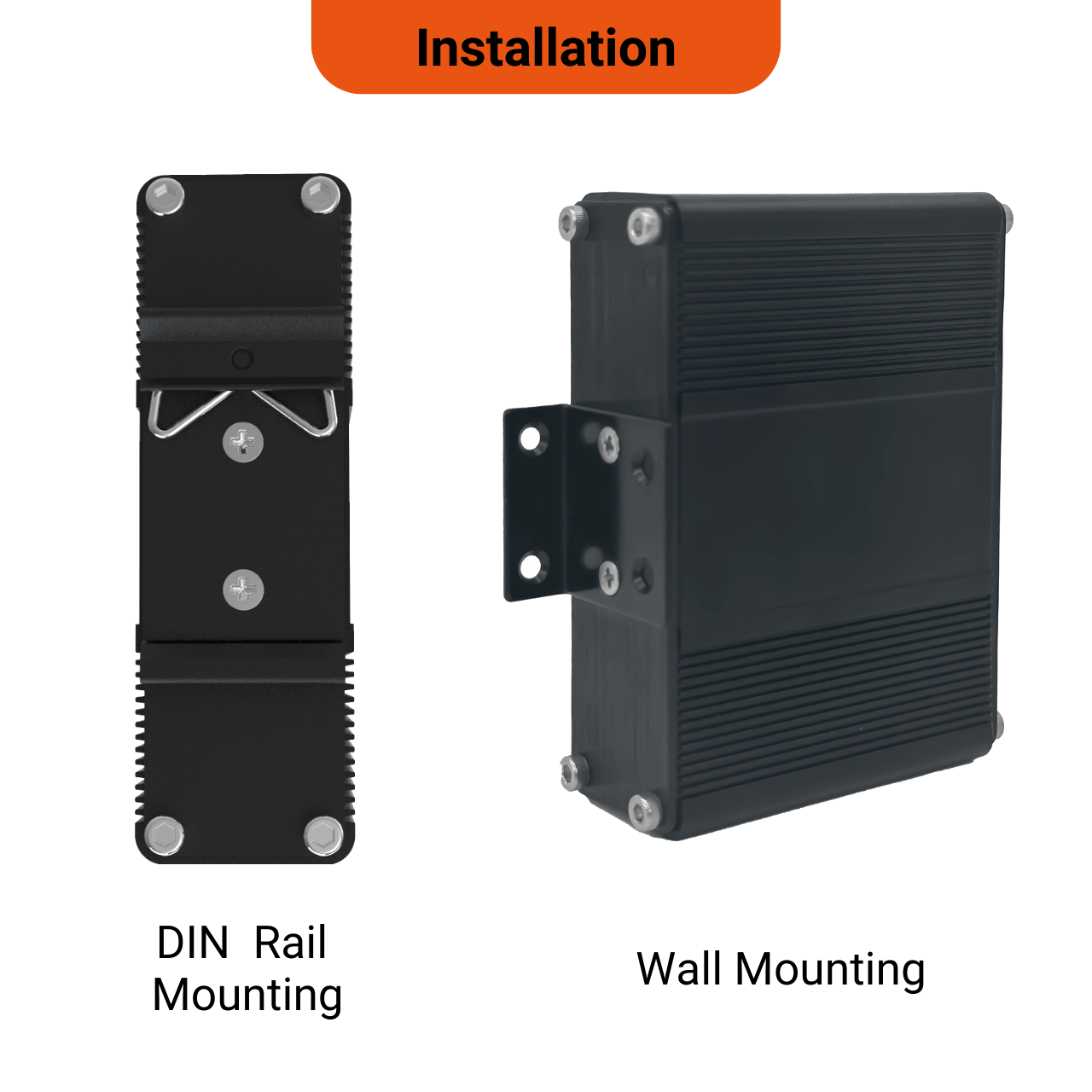

Installation

DIN-Rail and Wall-mount

Dimension

95mm x 70mm x 30mm (L x W x H)

Weight

250g(Bare weight)

Network Cable

10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters), EIA/TIA-568 100-ohm STP (maximum 100 meters) | 100BASE-FX/1000BASE-SX/LX: Multi-mode 50/125um or 62.5/125um optical fiber, Single-mode 9/125um optical fiber

Power Supply and PoE

Power Input (PD Port/DC Terminal)

PoE Input(TP2), IEEE802.3 at/bt or DC36-48V (V+/V-)

Input Voltage

PoE Input: DC48-57V or DC Input: DC36-48V (Option)

DC Power Output (Connector)

1 removable 2-contact terminal blocks

Output Voltage

5-24VDC (Shared 60W power)

Power Consumption

5 Watts Max (without PoE load)

Total Power Budget

30W Maximum (Depending on power input)

Environmental

Operating Temperature

-30℃ to +70℃ (-22 to 158 ℉)

Storage Temperature

-40℃ to +85℃ (-40 to 185 ℉)

Operating Humidity

5%~90% (non-condensing)

Cooling

Passive Cooling

MTBF

＞500,000 hours @MIL-HDBK-217F GF 25℃

LED Indicators

PWR

ON: Power is being supplied, OFF: Power is not being supplied

RJ45 Port Green LEDs(L/A)

ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active

RJ45 Port Amber LEDs(SPD)

ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s

P1 (Model Dependent)

ON: Connected PD load

SYS

ON: System running well

FX L/A

ON: Optical fiber cable is connected well, but no data transmission. Blinking: Receiving data

FX SPD

ON: FX 1000M running, OFF: FX 100M running

AVAILABLE MODELS

Industrial Gigabit Media Converter (Powered Device) and PoE (802.3at) Splitter with Wide Range DC Power Output

TypeVersionRelease Date

Datasheet

FR-IPM2003 Series Datasheet

Datasheet

Download
