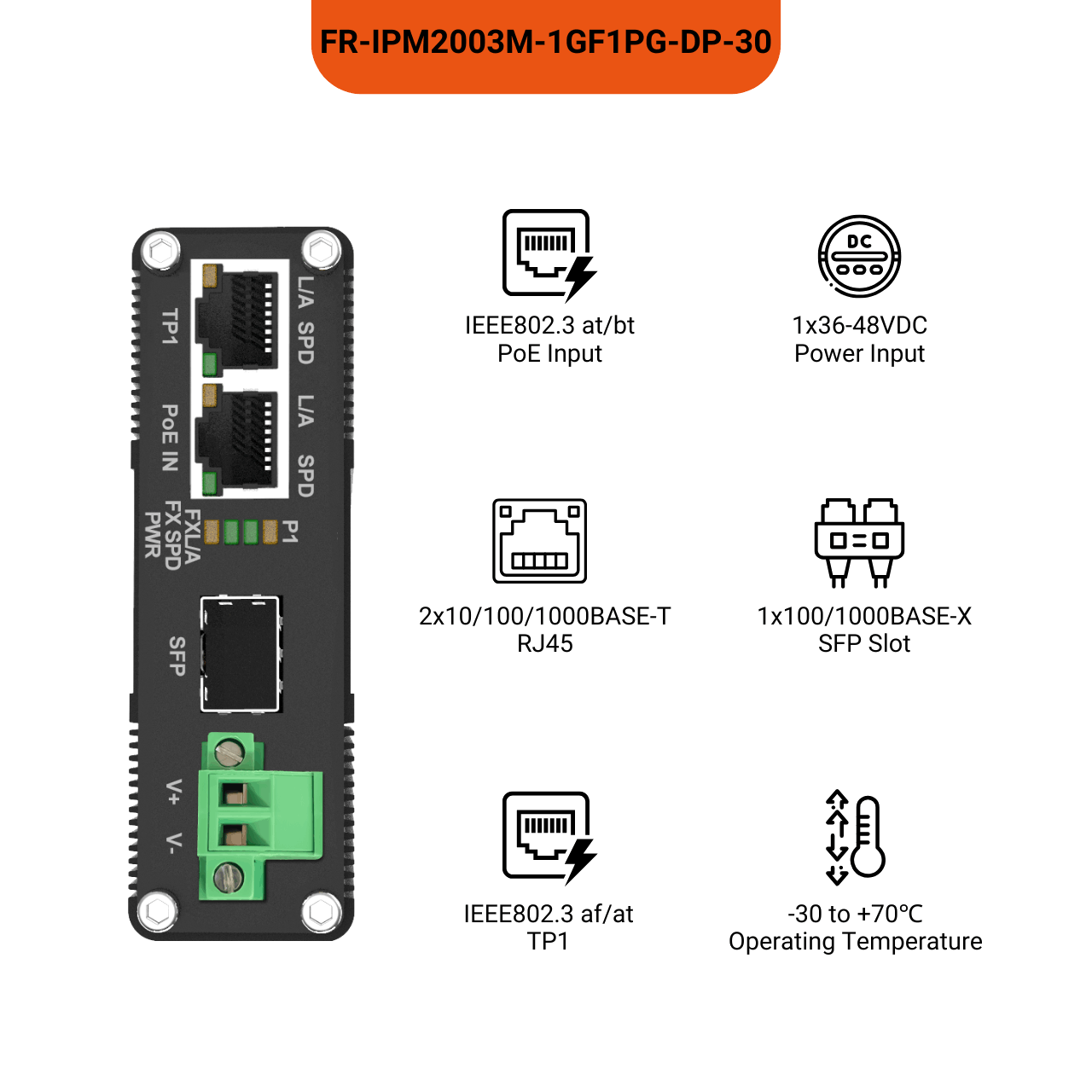

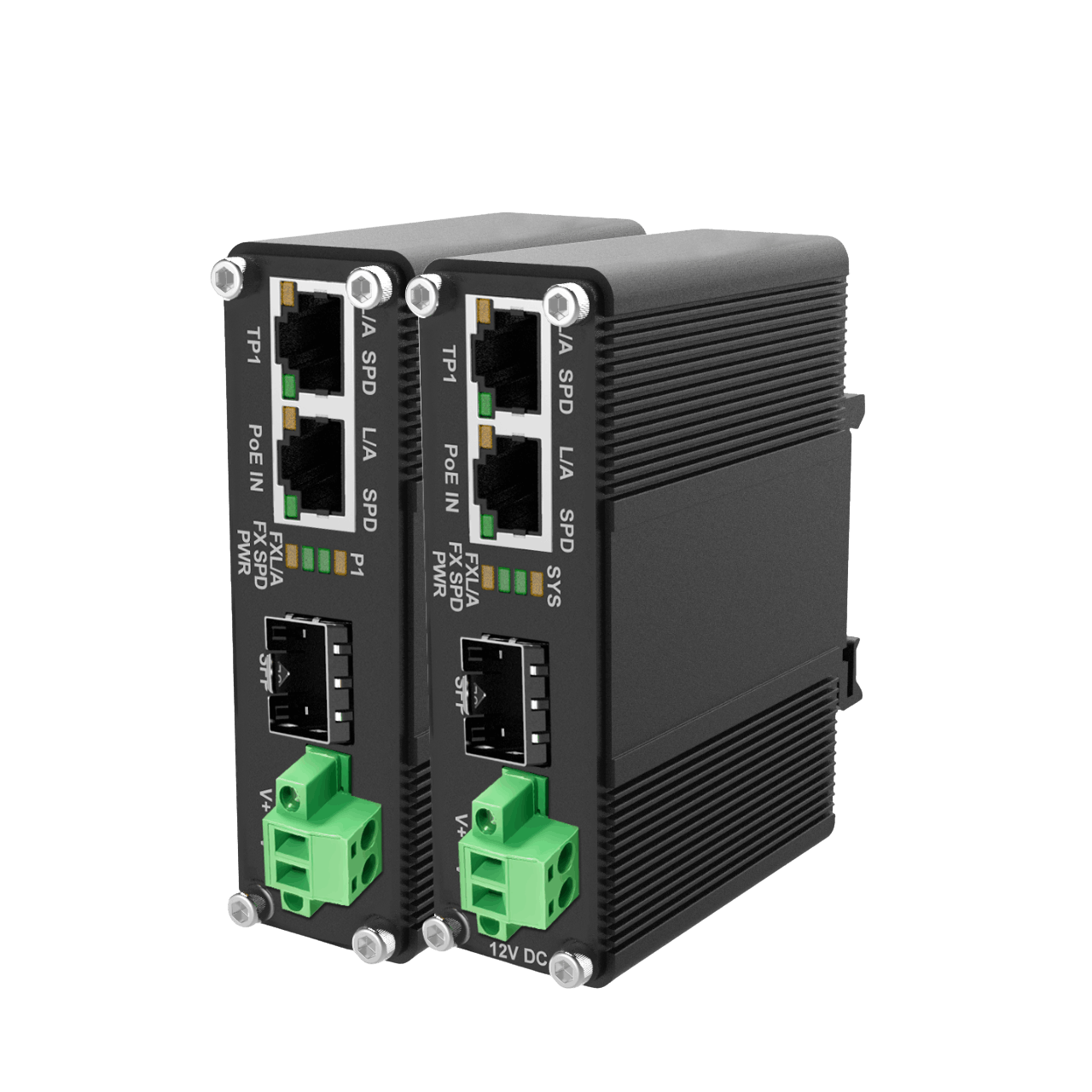

FR-IPM2003M-1GF1PG-DP-30

Industrial Gigabit PoE (802.3at) Media Converter (Powered Device)

The FR-IPM2003 Series is a flexible, industrial PoE Media Converter that extends network connections via its 100/1000BASE-X SFP port. It simplifies deployment with IEEE 802.3at/bt PoE input and offers versatile power options, providing either PoE+ or DC 5-24V output to support a wide array of devices.

PoE+

Enquire Now

1 x 10/100/1000BASE-T PoE input port/DC36-48V Power Input
1 x 10/100/1000BASE-T RJ45 with IEEE802.3 af/at Standard
1 x 100/1000BASE-SX/LX SFP slot
SFP slot accommodates multimode or single-mode modules
-30℃ to +70℃ Operating Temperature

Hardware Specifications

Copper Ports

2×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1 and PoE IN), Auto-Negotiation

Fiber Ports

1×100/1000BASE-X SFP Slots

Enclosure

IP40 aluminum case

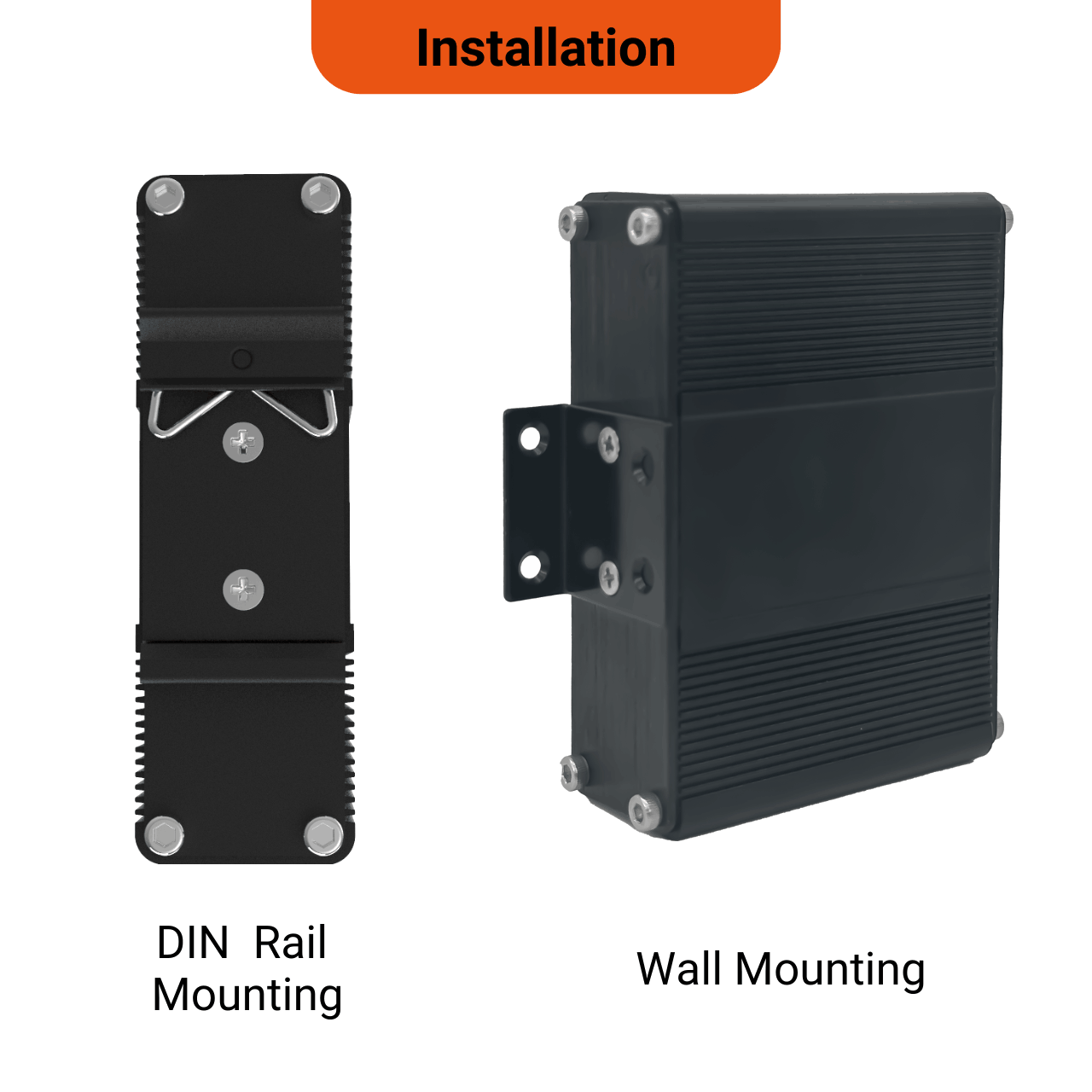

Installation

DIN-Rail and Wall-mount

Dimension

95mm x 70mm x 30mm (L x W x H)

Weight

250g(Bare weight)

Network Cable

10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters), EIA/TIA-568 100-ohm STP (maximum 100 meters) | 100BASE-FX/1000BASE-SX/LX: Multi-mode 50/125um or 62.5/125um optical fiber, Single-mode 9/125um optical fiber

Power Supply and PoE

Power Input (PD Port/DC Terminal)

PoE Input(TP2), IEEE802.3 at/bt or DC36-48V (V+/V-)

Input Voltage

PoE Input: DC48-57V or DC Input: DC36-48V (Option)

Power Consumption

5 Watts Max (without PoE load)

PoE Ports

TP1 IEEE802.3 af/at

PoE Power Supply Type

End-span

Power Supply Pin

1/2(+), 3/6(-)

Max Power Per Port

30W

Total Power Budget

30W Maximum (Depending on power input)

Environmental

Operating Temperature

-30℃ to +70℃ (-22 to 158 ℉)

Storage Temperature

-40℃ to +85℃ (-40 to 185 ℉)

Operating Humidity

5%~90% (non-condensing)

Cooling

Passive Cooling

MTBF

＞500,000 hours @MIL-HDBK-217F GF 25℃

LED Indicators

PWR

ON: Power is being supplied, OFF: Power is not being supplied

RJ45 Port Green LEDs(L/A)

ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active

RJ45 Port Amber LEDs(SPD)

ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s

P1 (Model Dependent)

ON: Connected PD load

SYS

ON: System running well

FX L/A

ON: Optical fiber cable is connected well, but no data transmission. Blinking: Receiving data

FX SPD

ON: FX 1000M running, OFF: FX 100M running

AVAILABLE MODELS

Industrial Gigabit PoE (802.3at) Media Converter (Powered Device)

TypeVersionRelease Date

Datasheet

FR-IPM2003 Series Datasheet

Datasheet

Download

Dimensions (W×D×H)

Send Enquiry

Our team typically responds within 1 business day.

Your data is handled in accordance with our Privacy Policy.

POE SOLUTIONS

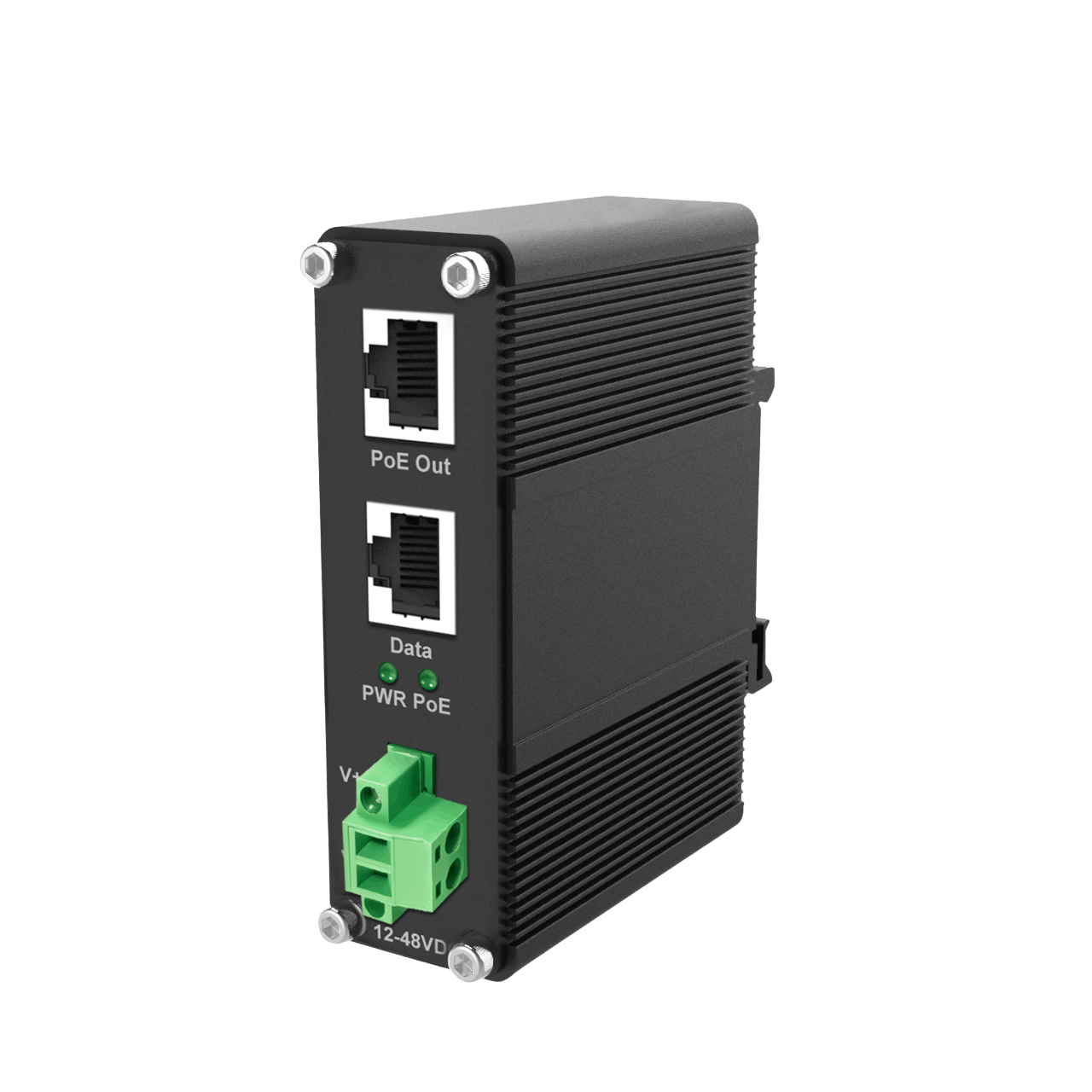

FR-IPM2002I-1PG-D-30

Gigabit PoE (802.3at) Injector

POE SOLUTIONS

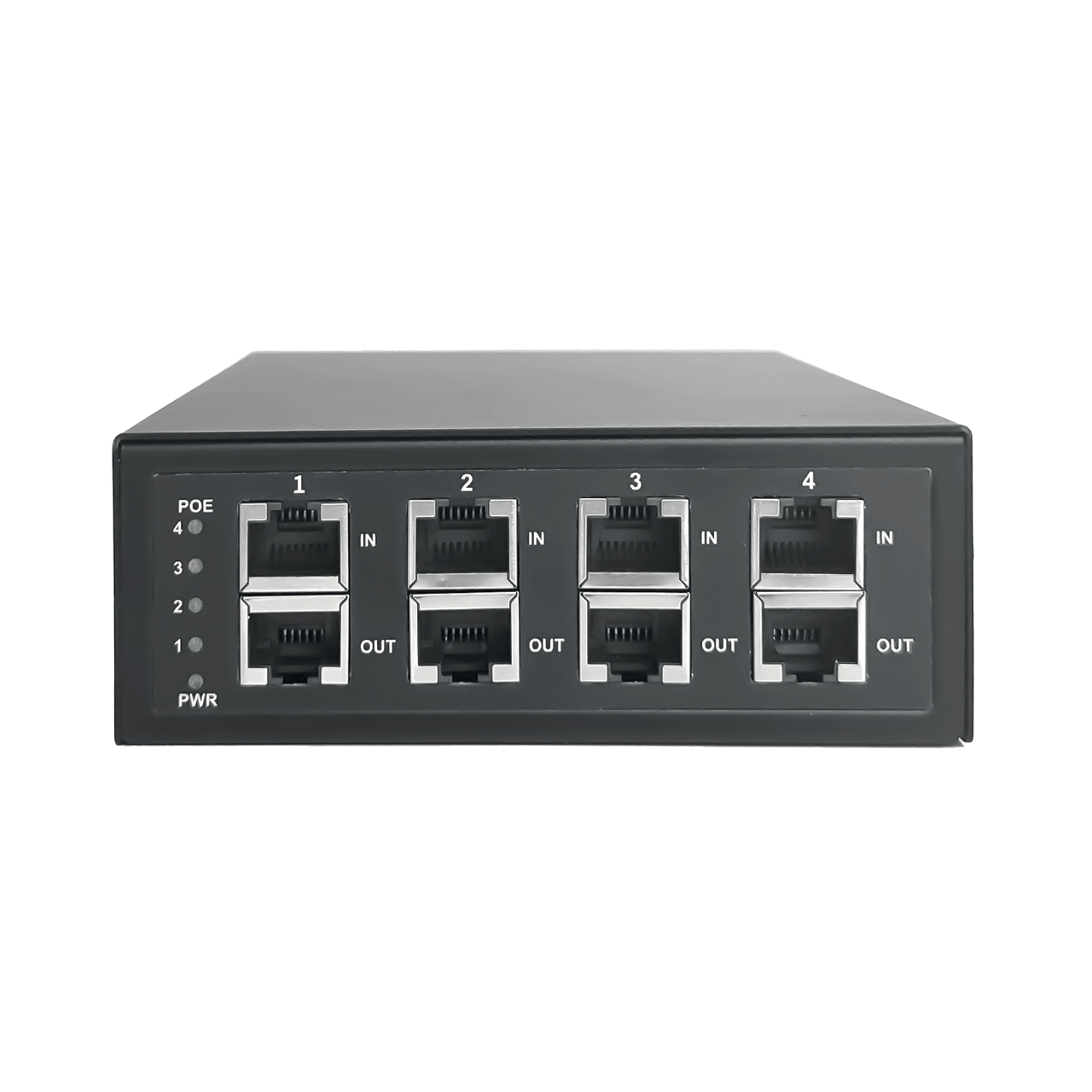

FR-IPS2008I-4PG-A-90

4-port PoE (802.3at/bt) Injector

POE SOLUTIONS

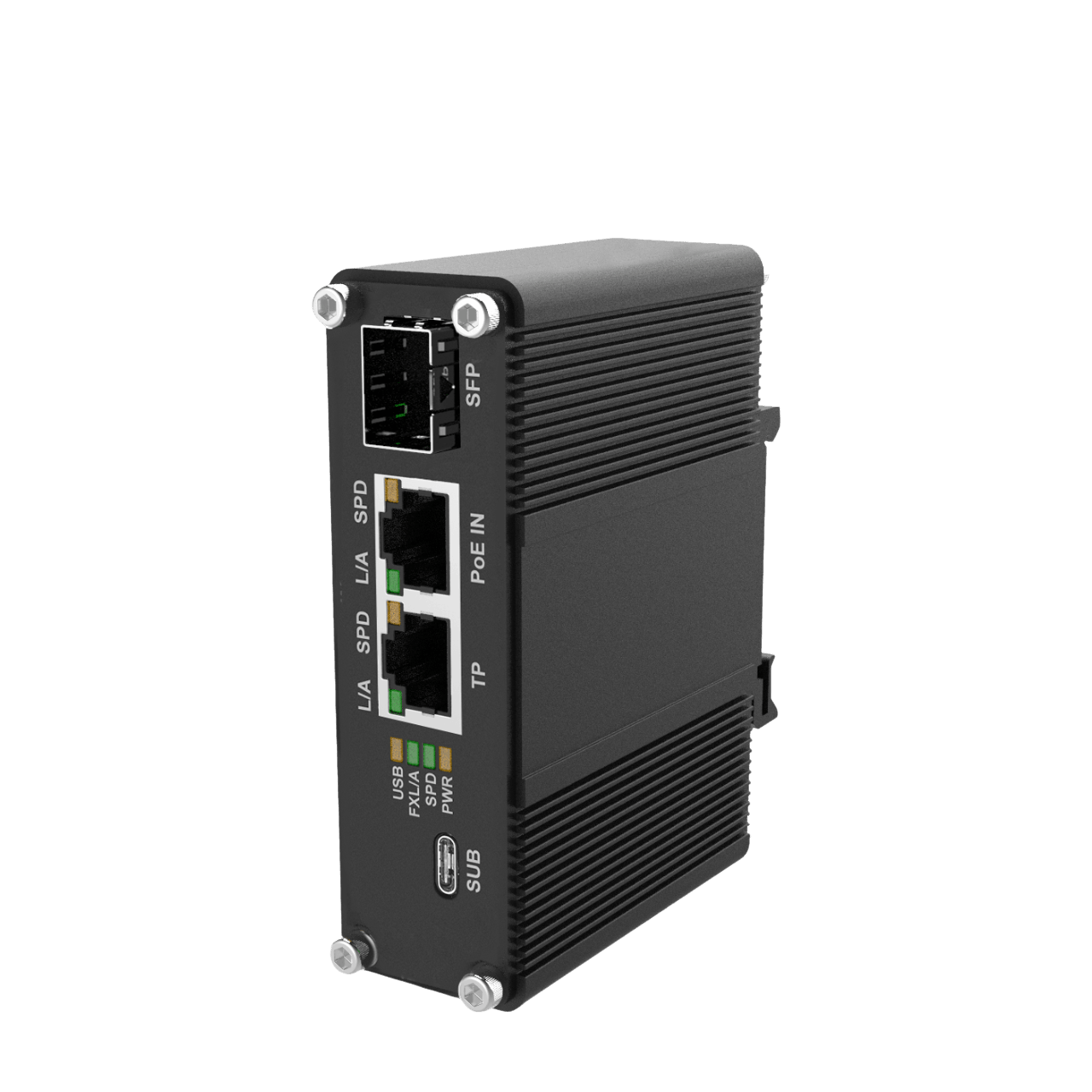

FR-IPM2003MT-1GF1GE-P-60
