FR-IPM2002T-P-30

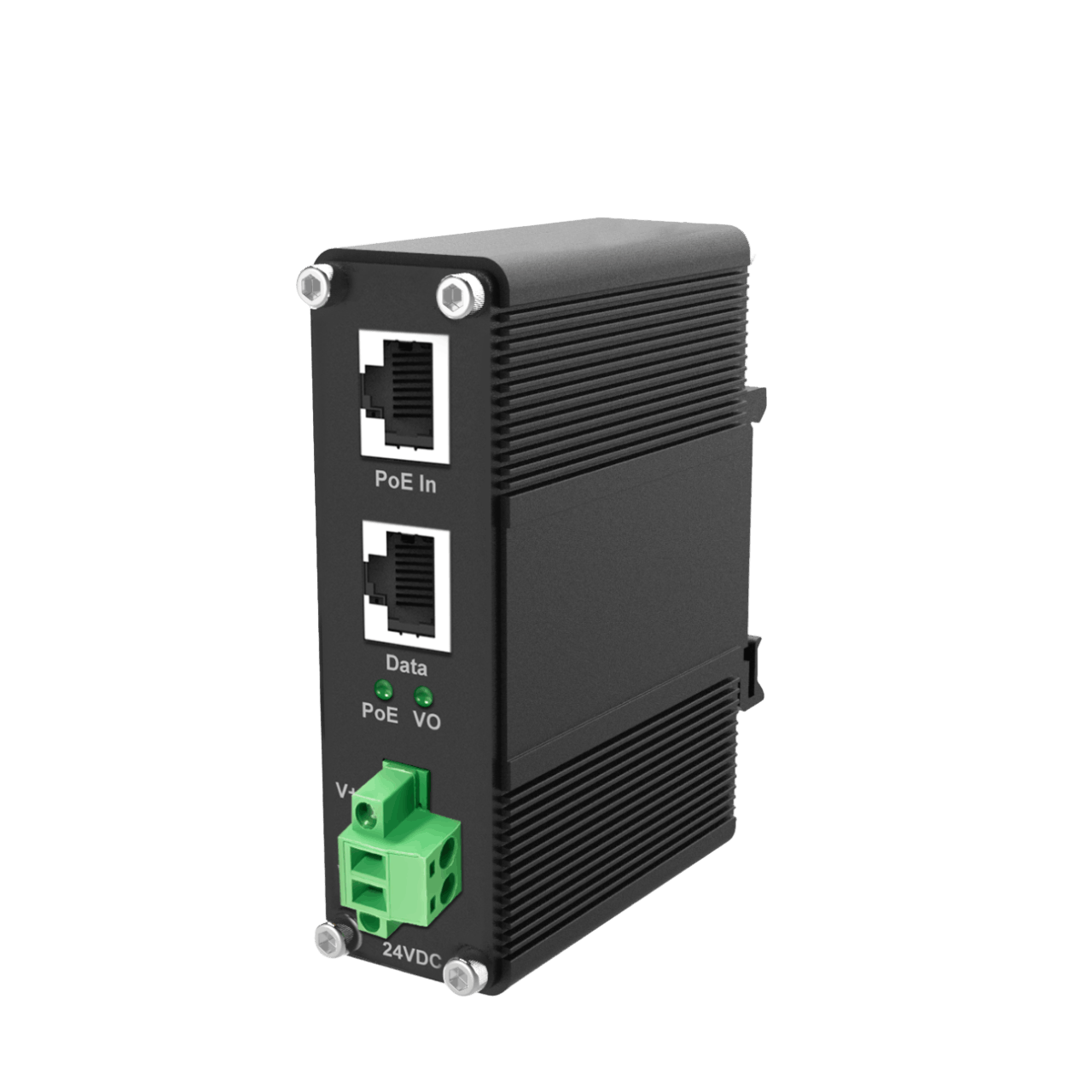

Industrial Gigabit PoE (802.3at) Splitter with 24VDC Power Output

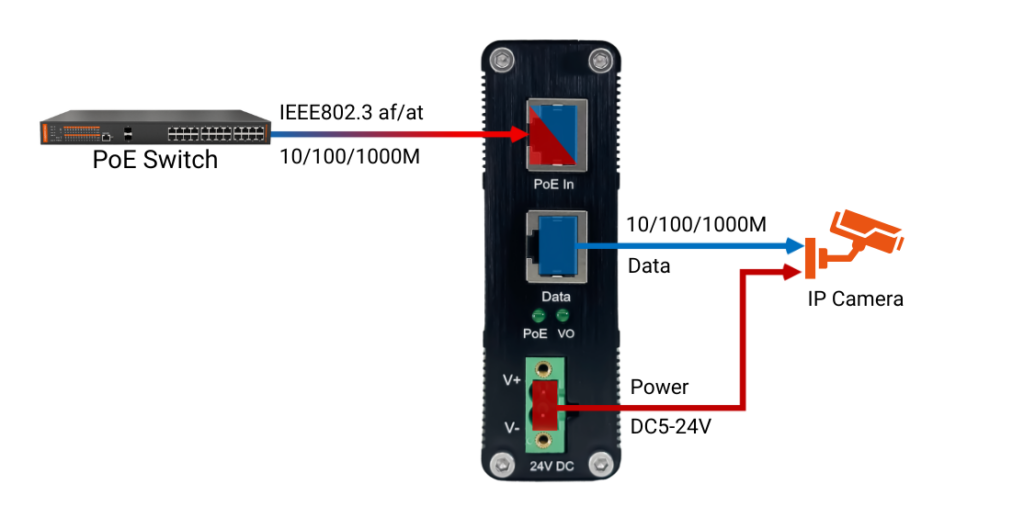

The Fiberroad Industrial PoE Splitter is an ideal solution for powering traditional network devices in demanding environments. It efficiently converts standard 48-56V PoE input (IEEE 802.3at) into a 24V DC output, delivering up to 25 watts to high-power devices. By leveraging existing Ethernet cabling for both data (10/100/1000Mbps) and power, it eliminates the need for costly electrical installations, providing a flexible and reliable power solution for growing industrial applications.

Protected by hardware warranty

Advance replacement. Global coverage.

Protected by hardware warranty

Advance replacement. Global coverage.

  • Splits power and data from the PoE Input
  • Supports PoE IEEE802.3af/at A mode (1, 2, 3, 6) or B mode (4, 5, 7, 8)
  • Supports output power upto 12VDC/1.4A, or 24VDC/0.85A
  • Compliant with 10/100/1000Base-T(X)
  • Wide operating temperature -30 ~ +70°C
  • IP40 rugged metal housing and fanless
Hardware Specifications
Interface
Input Port:1 x 10/100/1000BASE-T RJ45, PoE (Data + Power) In | Output Port:1 x 10/100/1000BASE-T RJ45, Data Out | Output power terminal block: 1 removable 2-Pin terminal block
Network Cable
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) | 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) | 1000BASE-T: UTP category 5e cable or above (maximum 100 m)
Enclosure
IP40 aluminum case

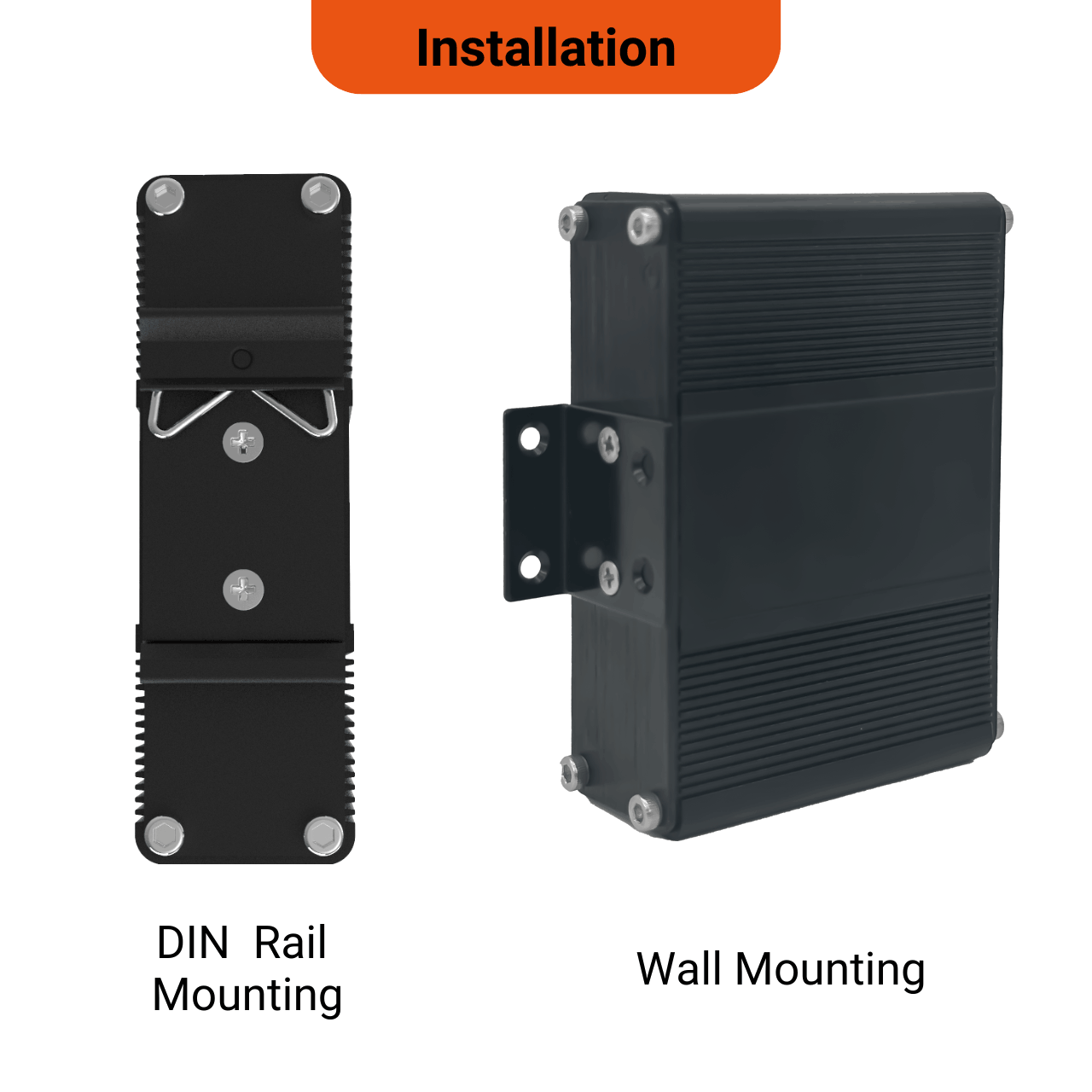

Installation
DIN-Rail and Wall-mount
Dimension
95mm x 70mm x 30mm (L x W x H)
Power Supply and PoE
Power Input
802.3at PoE 48-56V DC
Power Output
24V DC, max 2A
PoE Standard
IEEE 802.3at PoE+
Environmental
Operating Temperature
-30℃ to +70℃ (-22 to 158 ℉)
Storage Temperature
-40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity
5%~90% (non-condensing)
Cooling
Passive Cooling
MTBF
>500,000 hours @MIL-HDBK-217F GF 25℃

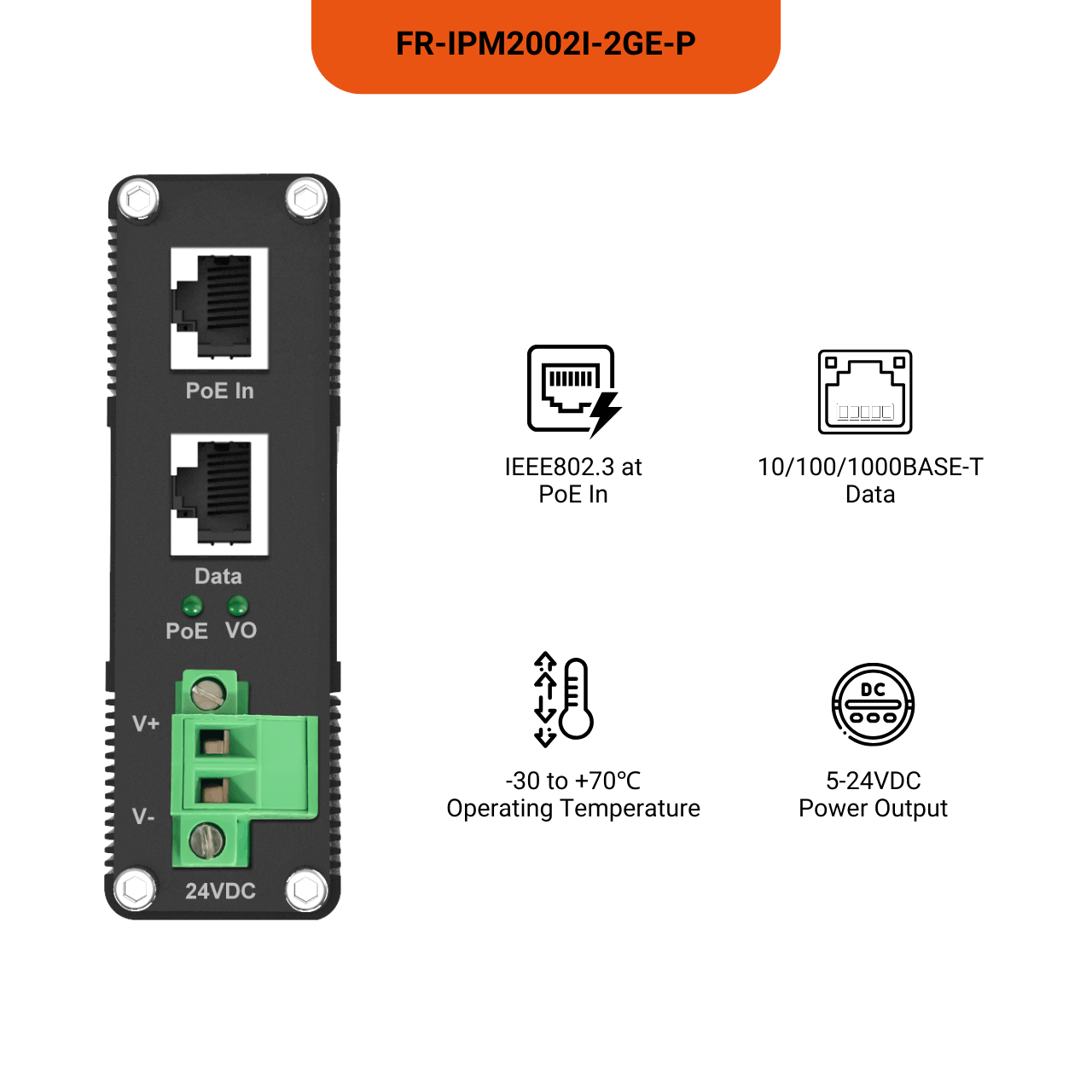

LED Indicators
VO(Green)
ON: Output power is being supplied, OFF: Output power is not being supplied
PoE(Green)
ON: PoE in Use, OFF: PoE not in Use

AVAILABLE MODELS

Industrial Gigabit PoE (802.3at) Splitter with 24VDC Power Output

TypeVersionRelease Date
Datasheet
Industrial PoE Splitter Datasheet
Datasheet

Dimensions (W×D×H)
