FR-7N3104

Industrial Unmanaged 4-port 10/100/1000Base-TX + 1-port 1000Base-SFP Ethernet Switch with Redundant DC Power Inputs

Engineered to withstand harsh weather conditions, this unmanaged industrial Ethernet switch offers seamless connectivity, ensuring that surveillance systems operate flawlessly even in challenging settings. Its optional support for IEEE 802.3 af/at/bt Power over Ethernet standard further enhances its versatility by allowing power delivery along with data transmission through the same cable, simplifying installations and reducing clutter. With multiple ports available for quick integration into existing networks.

Unmanaged
Redundant DC
Din-Rail
-40°C to 75°C

Enquire Now

Supports IEEE 802.3 af/at/bt Power over Ethernet standard
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
IEEE 802.1Q VLAN transparency
9-56V DC redundant power with reverse polarity protection
-40 to +75℃ operating temperature

Hardware Specifications

Product

FR-7N3104

Copper Ports

4×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-4)

Fiber Ports

1x1000BASE-X SFP Slot (Port 5)

Enclosure

IP40 aluminum case

Installation

DIN-Rail and Wall-mount

Dimension

120 x 90 x 35 mm

Weight

380g (Bare weight), 480g (With package)

Surge Protection

±6kV DC, ±4kV RJ45

Switching

Switch Architecture

Store-and-Forward

Switch Fabric

14Gbps/non-blocking

Forwarding Rate

7.44 Mpps (64-byte packet size)

Packet Buffer Size

512 Kbits

Max. Packet Length

9K bytes

MAC Address Table

2K entries, automatic source address learning and aging

Power Supply

Power Input

Power Connector

1 removable 6-contact terminal blocks; Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm (as required)

Operating Voltage

DC9-56V

Power Consumption

6 Watts Max

Protection

Reverse Polarity, Overload Current

Environmental

Operating Temperature

-40℃ to +75℃ (-40 to 167 ℉)

Storage Temperature

-40℃ to +85℃ (-40 to 185 ℉)

Operating Humidity

5%~95% (non-condensing)

Heat Dissipation

10 BTU/h

Cooling

Passive Cooling

MTBF

>500,000 hours @MIL-HDBK-217F GF 25℃

LED Indicators

P1 & P2

ON: Power is being supplied, OFF: Power is not being supplied

Fiber Port

ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active

RJ45 Port Amber LED

ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active

RJ45 Port Green LED

ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s

AVAILABLE MODELS

Industrial Unmanaged 4-port 10/100/1000Base-TX + 1-port 1000Base-SFP Ethernet Switch with Redundant DC Power Inputs

TypeVersionRelease Date

Datasheet

FR-7N3104 Series Datasheet

Datasheet

Download

Manual

7 Series Quick Start Guide

Manual

Media Converters

Industrial Ethernet Switches

Poe Solutions

Network Peripherals

Network Management Software

About Us

Industrial Automation

Security & Surveillance

Intelligent Transportation

Smart City

Energy & Utilities

Applications

INDUSTRIAL ETHERNET SWITCHES

Unmanaged Ethernet Switches

FR-7N3104

Industrial Unmanaged 4-port 10/100/1000Base-TX + 1-port 1000Base-SFP Ethernet Switch with Redundant DC Power Inputs

Protected by hardware warranty

Protected by hardware warranty

AVAILABLE MODELS

Dimensions (W×D×H)

Send Enquiry

Our team typically responds within 1 business day.

FR-7N3104

Your data is handled in accordance with our Privacy Policy.

Related Products

INDUSTRIAL ETHERNET SWITCHES

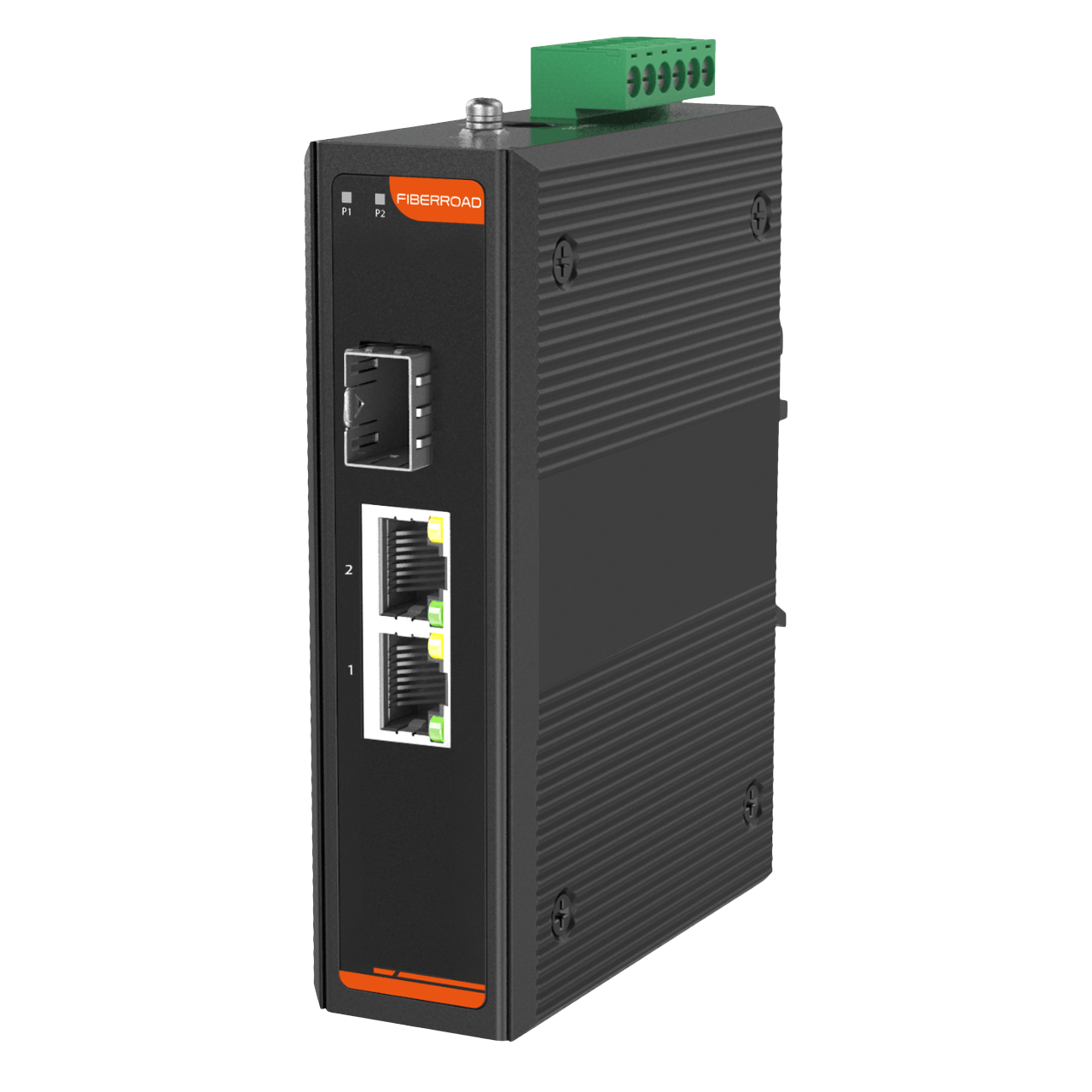

FR-7N3102BT

INDUSTRIAL ETHERNET SWITCHES

FR-7N3016

INDUSTRIAL ETHERNET SWITCHES

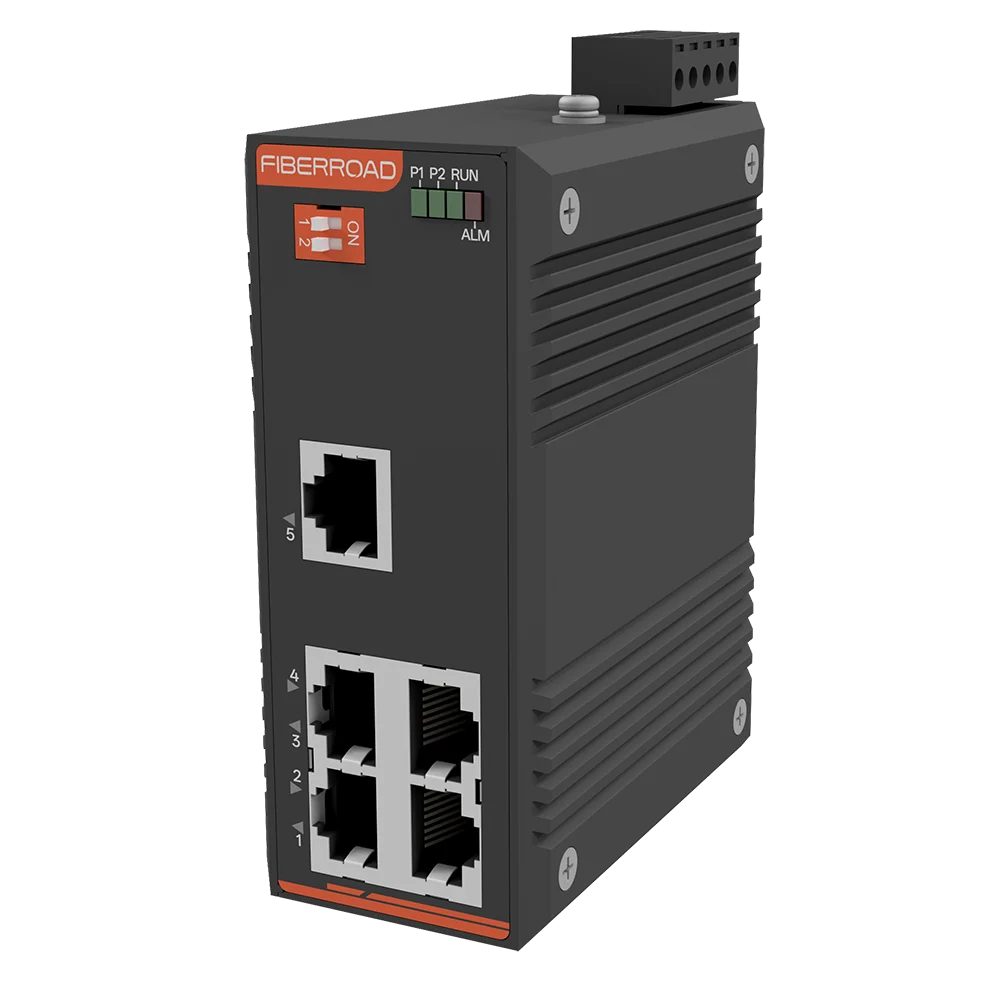

FICE1005/FICE2005
