INDUSTRIAL ETHERNET SWITCHES

Unmanaged Ethernet Switches

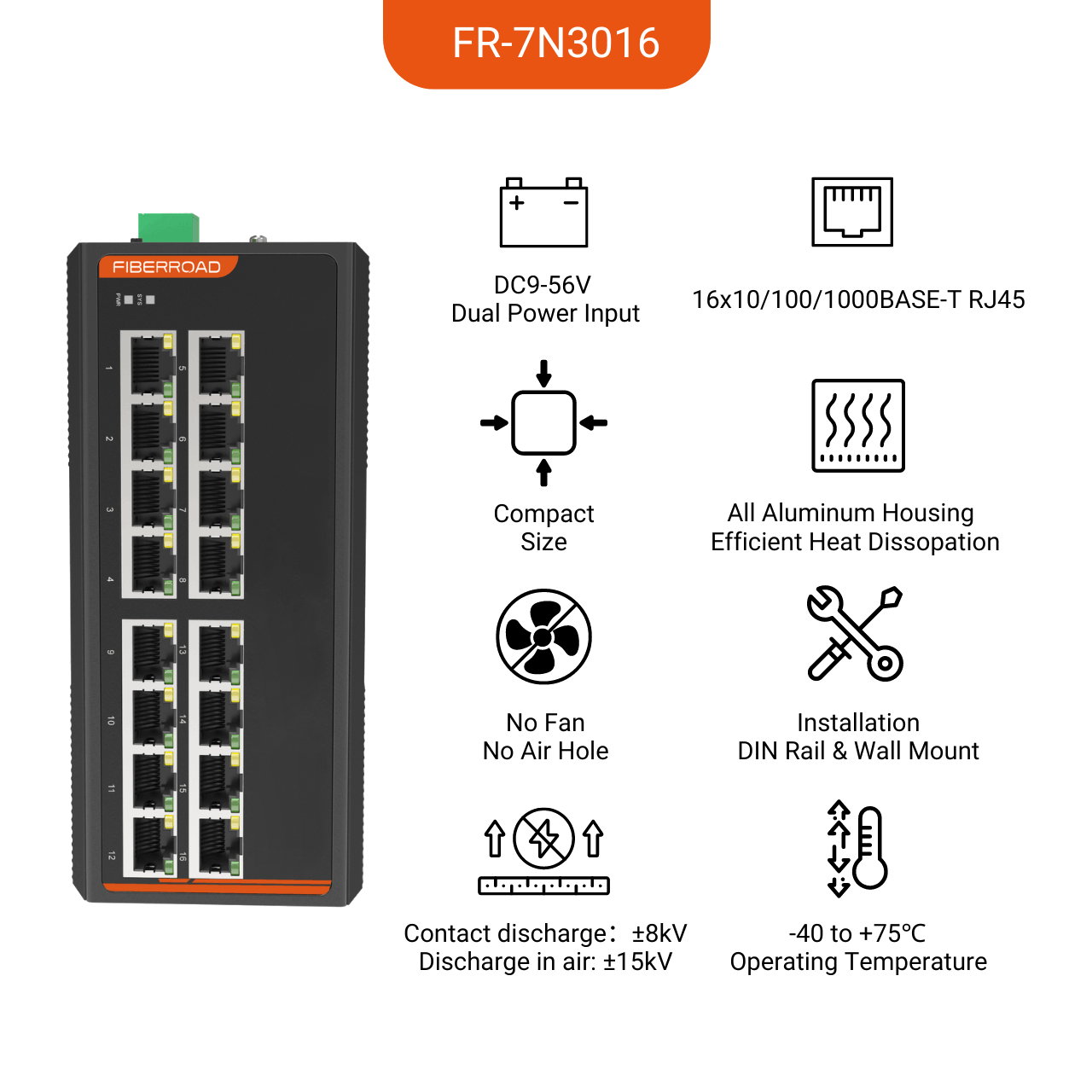

FR-7N3016

Industrial Unmanaged 16-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs

The High Port Density Unmanaged Industrial Switch is a versatile and reliable solution for industrial network applications. With its easy access to Gigabit Ethernet, this switch offers seamless connectivity for demanding environments. Its robust design ensures durability in industrial and outdoor surveillance settings, making it an ideal choice for rugged conditions. The switch can be easily mounted on DIN-Rail or Wall, providing flexibility in installation options. The built-in LEDs offer convenient visual monitoring of connected devices through the RJ45 ports, enhancing ease of use and efficiency in managing network connections.

  • Unmanaged
  • Redundant DC
  • Din-Rail
  • -40°C to 75°C
Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • IEEE 802.1Q VLAN transparency
  • Plug-and-play design simplifies installation
  • 9-56V DC redundant power with reverse polarity protection
  • -40 to +75℃ operating temperature
Hardware Specifications
Product
FR-7N3016
Copper Port
16×10/100/1000BASE-T RJ45
Enclosure
IP40 aluminum case

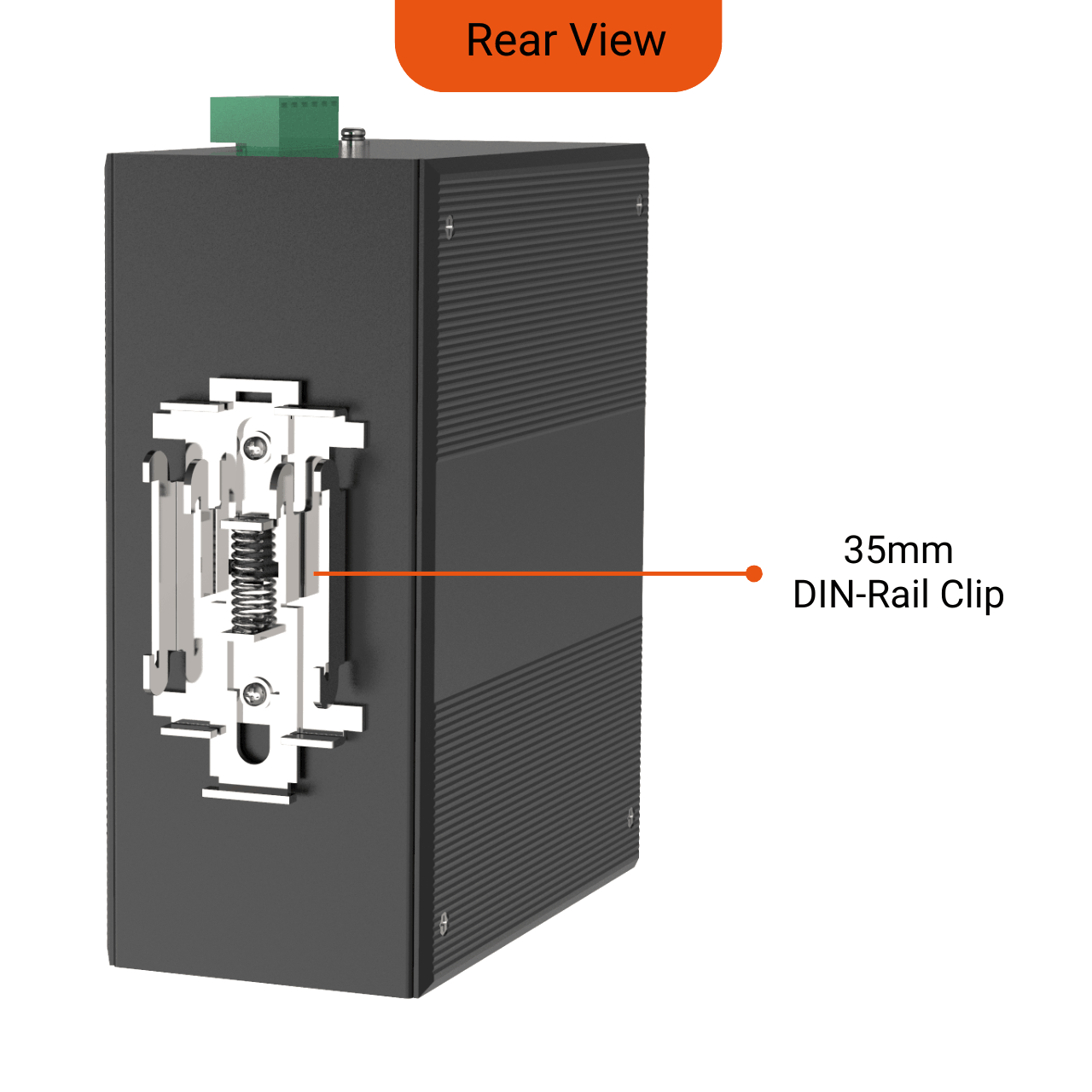

Installation
DIN-Rail and Wall-mount
Dimension
160 x 132 x 70mm
Weight
990g (Bare weight), 1250g (With package)

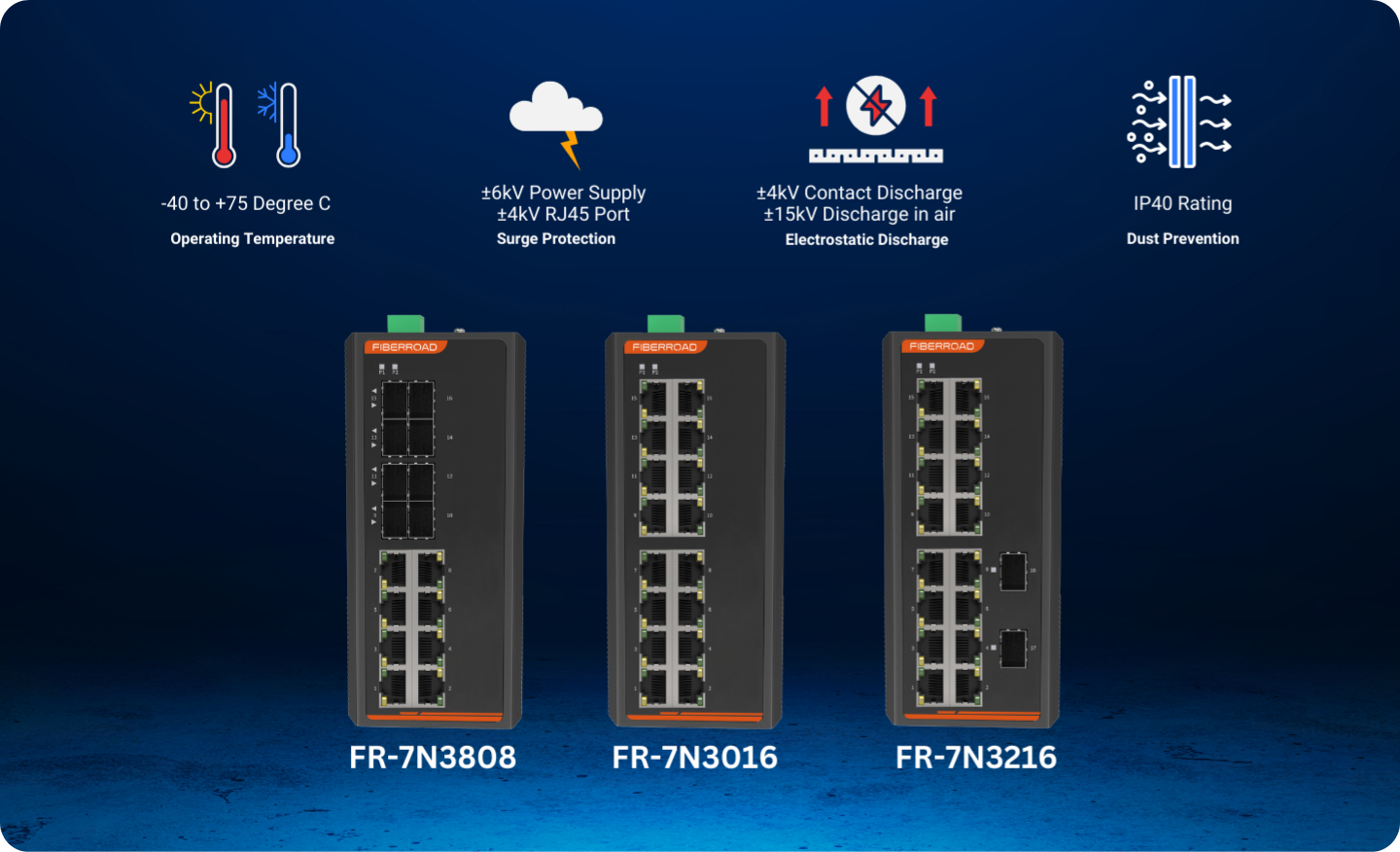

Surge Protection
±6kV DC, ±4kV RJ45
Switching
Switch Architecture
Store-and-Forward

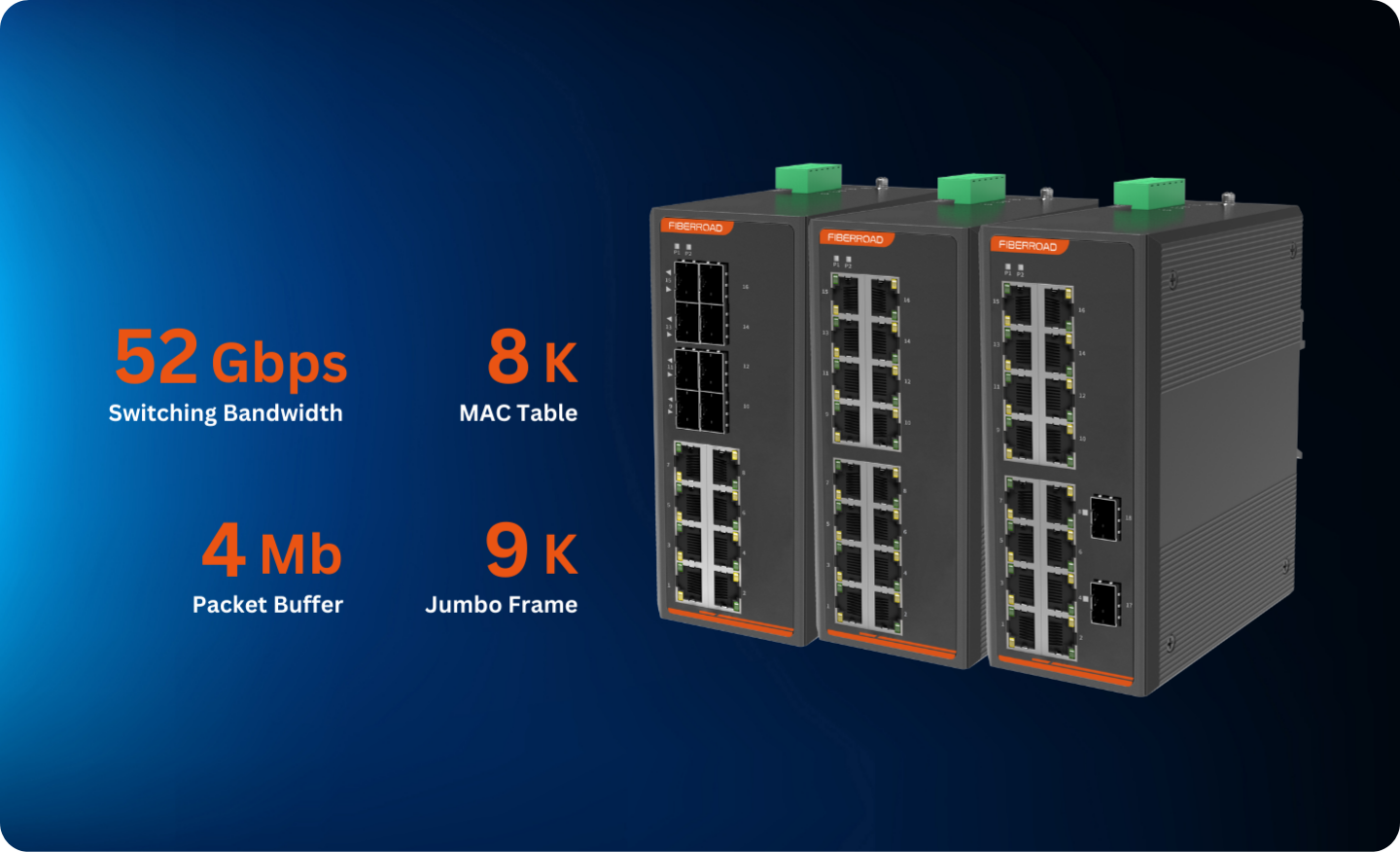

Switch Fabric
52Gbps/non-blocking
Forwarding Rate
23.8 Mpps (64-byte packet size)
Packet Buffer Size
4Mbits
Max. Packet Length
9K bytes
MAC Address Table
8K entries, automatic source address learning and aging
Flow Control
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Power Supply
Power Input
2
Power Connector

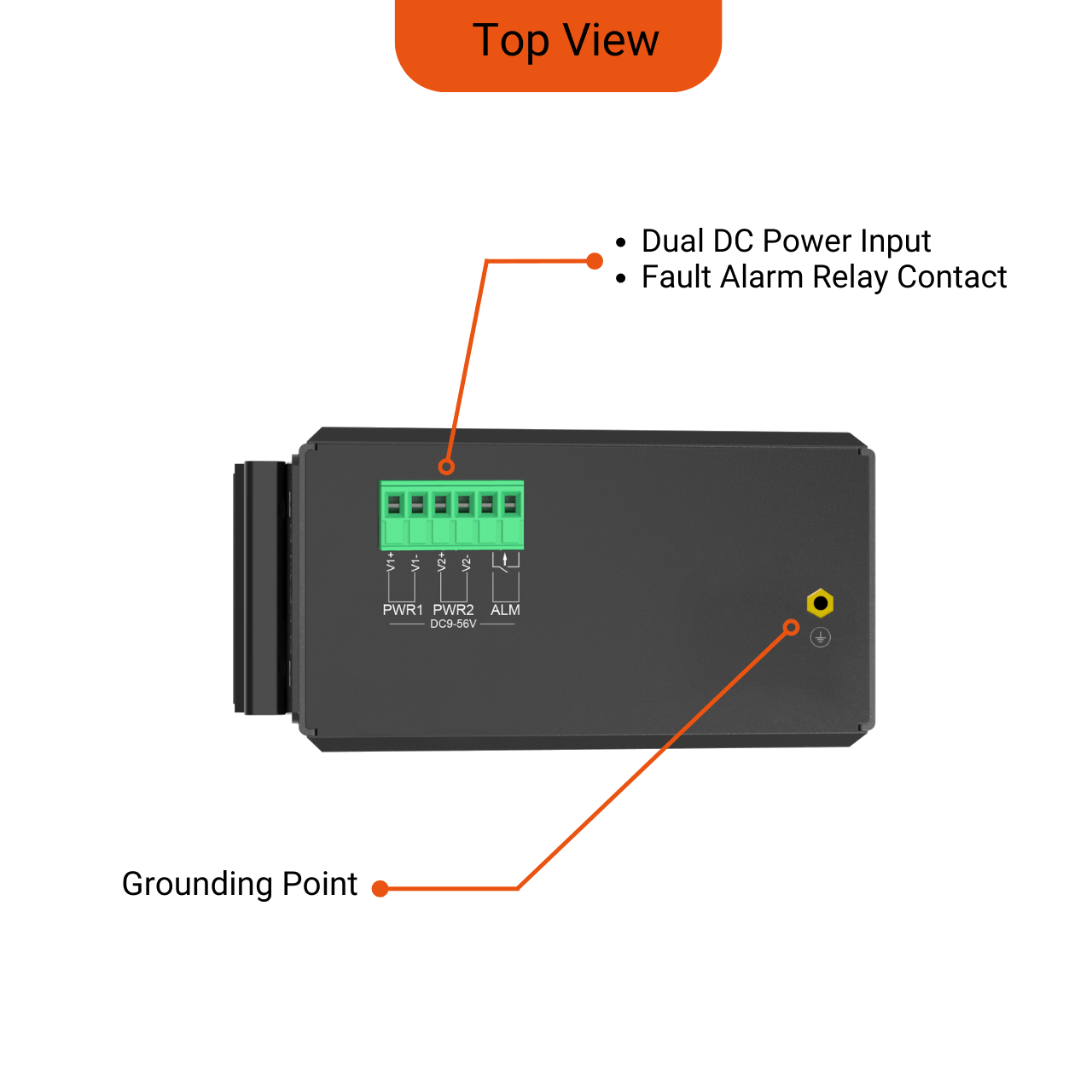

1 removable 5-contact terminal blocks; Pin 1/2 for Power 1, Pin 4/5 for Power 2
Operating Voltage
DC9-56V
Power Consumption
10 Watts Max
Protection
Reverse Polarity, Overload Current
Environmental
Operating Temperature
-40℃ to +75℃ (-40 to 167 ℉)
Storage Temperature
-40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity
5%~95% (non-condensing)
Cooling
Passive Cooling
MTBF
>500,000 hours @Telcordia SR-332 GB 50°C
LED Indicators
P1 & P2
ON: Power is being supplied, OFF: Power is not being supplied
RJ45 Port Amber LED
ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active
RJ45 Port Green LED
ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s
Package Contents
Device
1 x Industrial Ethernet Switch
Installation Kit
1 x DIN-Rail Clip, 2 x Wall-Mount Kits
Documentation
1 x Quick Start Guide, 1 x Warranty Card, 1 x Product Notice

AVAILABLE MODELS

Industrial Unmanaged 16-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs

TypeVersionRelease Date
Datasheet
16 Port Series Datasheet
Datasheet
Manual
7 Series Quick Start Guide
Manual

Dimensions (W×D×H)
