Ports
5×10/100/1000Base-TX Port (RJ45)
Port Mode (Tx)
Auto Negotiation Speed, Full/Half Duplex Mode, Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for Fast Ethernet; IEEE 802.3ab Gigabit Ethernet; IEEE 802.3x for flow control and back pressure; IEEE 802.3az for Energy Efficient Ethernet (EEE)
Transmission Mode
Store and Forward (full/half duplex mode)
PoE Ports
Port 1 to 4 IEEE802.3af/at
PoE Power Supply Type
End-span
Power Supply Pin
1/2(+), 3/6(-)
PoE Power Budget
120W (depending on power input)
Power Consumption
6 Watts Max (without PoE load)
Operating Voltage
DC48-56V

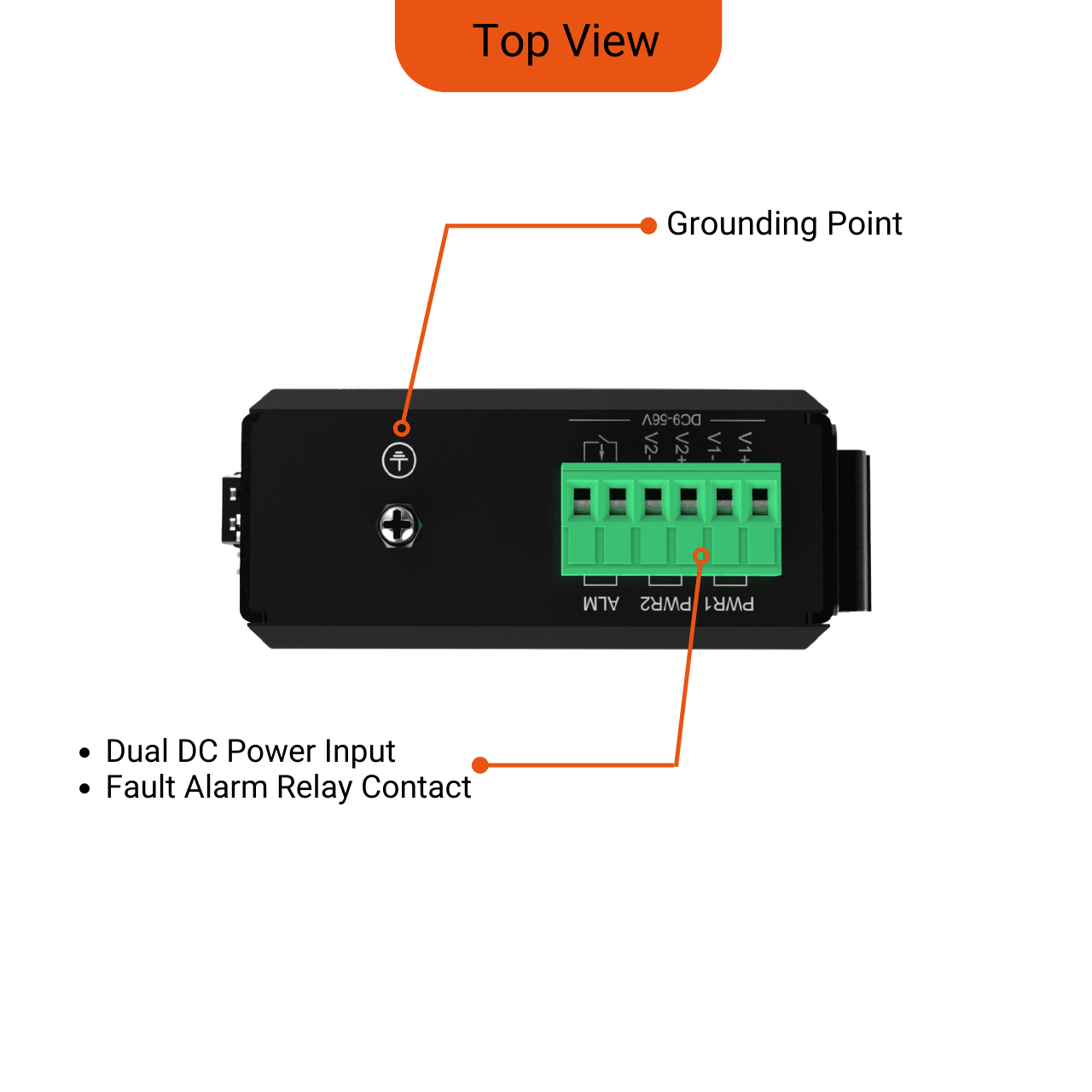

Connector
1 removable 6-contact terminal blocks; Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm (as required)
