POE SOLUTIONS

PoE Unmanaged Switches

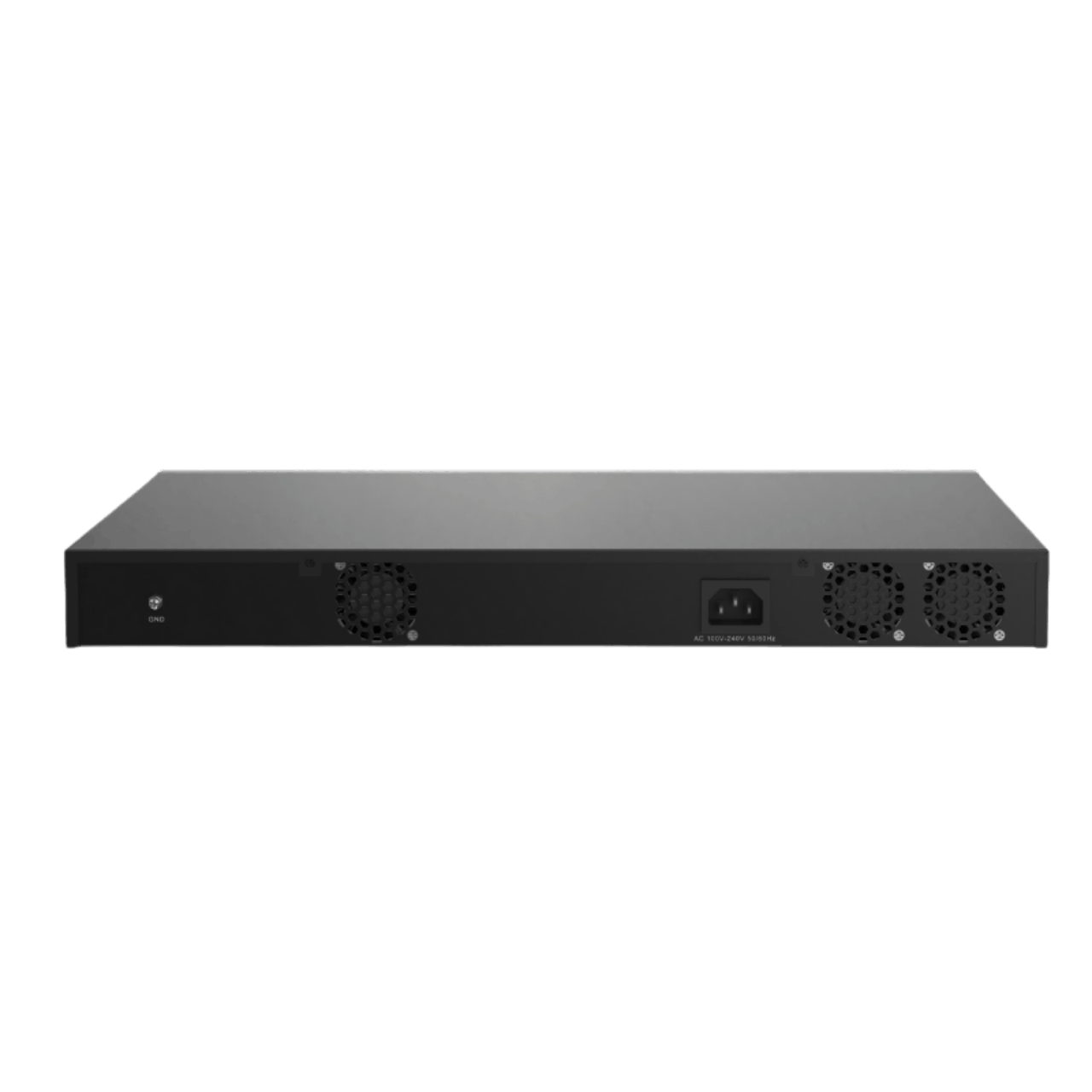

FR-5A3224P

24×10/100/1000BASE-T RJ45 (Port 1 to 24 PoE+ Standard), 2x1000BASE-X SFP Slots, AC220V Power Input, Internal 400W Power supply

It is a new generation PoE switch with 24-Port 10/100/1000Base-TX and 2 Gigabit uplink ports that provide stable and reliable Ethernet transmission offered by Fiberroad, with high-quality design and reliability. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE power supply.

Unmanaged
Single AC
Rack mount
0°C to 50°C

Enquire Now

24×10/100/1000Base-TX RJ45 ports, 2xGigabit SFP/ RJ45
Support full-duplex based on IEEE802.3x and half-duplex based on backpressure
IEEE802.3af/at PoE standard, without damaging non-PoE devices.
Support 10K bytes giant frame, compatible with various extension protocol
Support IEEE802.3az Energy Efficient Ethernet technology
Electric 4kV surge protection
Fanless and noiseless design, IP30 rated
Providing a long term and stable PoE power output
LED indicator of PWR, Link, PoE

Ethernet Interface

Model

FR-5A3224P

RJ45 Port

24×10/100/1000Base-TX

Optical Fiber Port

2×1000Base-X SFP

SFP Slot Port

Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter); 100BASE-TX: Cat5 or later UTP (≤100 meter); 1000BASE-T: Cat5e or later UTP (≤100 meter)

Port Mode (Tx)

Auto-Negotiation; Full/Half Duplex Mode; Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseSX/LX/LHX/ZX; IEEE 802.3x for flow control; IEEE 802.1p for Class of Service; IEEE802.3az Energy Efficient Ethernet

Packet Buffer Size

4Mbits

Maximum Packet Length

Up to 10K

MAC Address Table

Transmission Mode

Store and Forward (Full Wire Speed)

Exchange Property

Delay time: < 7μs; Backplane bandwidth: 52Gbps

Advanced Features

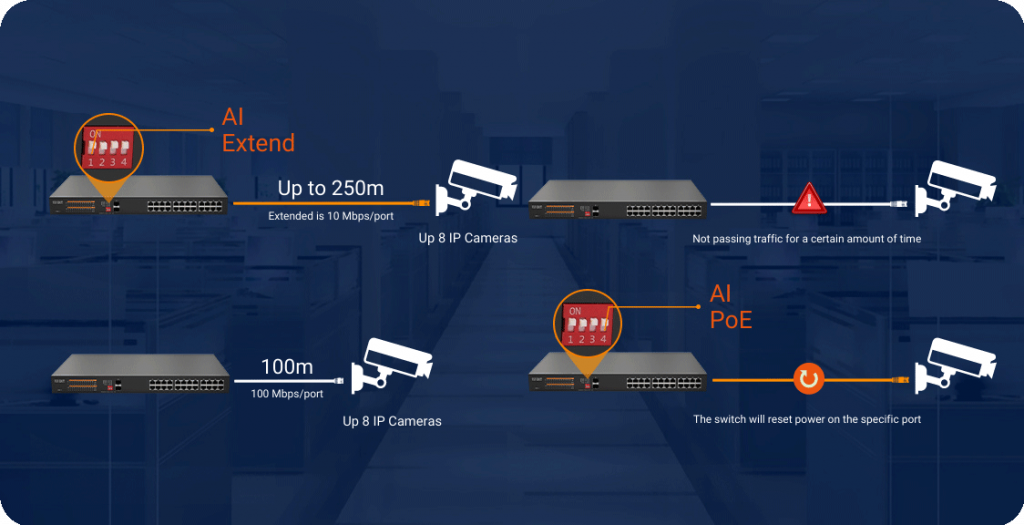

Compatible With IEEE 802.3at/af Compliant PDs; Extend Mode (Up to 250m PoE power supply and data transmission); Priority Mode; Isolation Mode; PD Detection; Intelligent Power Supply; Mac Address Auto-Learning and Auto-Aging

PoE & Power Supply

PoE Port

Port 1 to 24 IEEE802.3af/at @PoE

Power Supply Pin

Default: 1/2(+), 3/6(-)

Max Power Per Port

30W; IEEE802.3af/at

Total PWR

400W

Power Consumption

＜18W (220/50 Hz, no PD connected)

Power Inputs

Power Supply

Internal power adapter with AC100 – 240V 50-60Hz input

Protection

Overload Current Protection

AVAILABLE MODELS

24×10/100/1000BASE-T RJ45 (Port 1 to 24 PoE+ Standard), 2x1000BASE-X SFP Slots, AC220V Power Input, Internal 400W Power supply

TypeVersionRelease Date

Datasheet

FR-5A3216P, FR-5A3224P Datasheet AI-PoE-Switch-Product_2605

Datasheet

Download

Manual

Quick Start Guide-Unmanged PoE Switch

Manual

Download

2D Drawing

2D drawing

2D Drawing

Download

Dimensions (W×D×H)
