POE SOLUTIONS

PoE Managed Switches

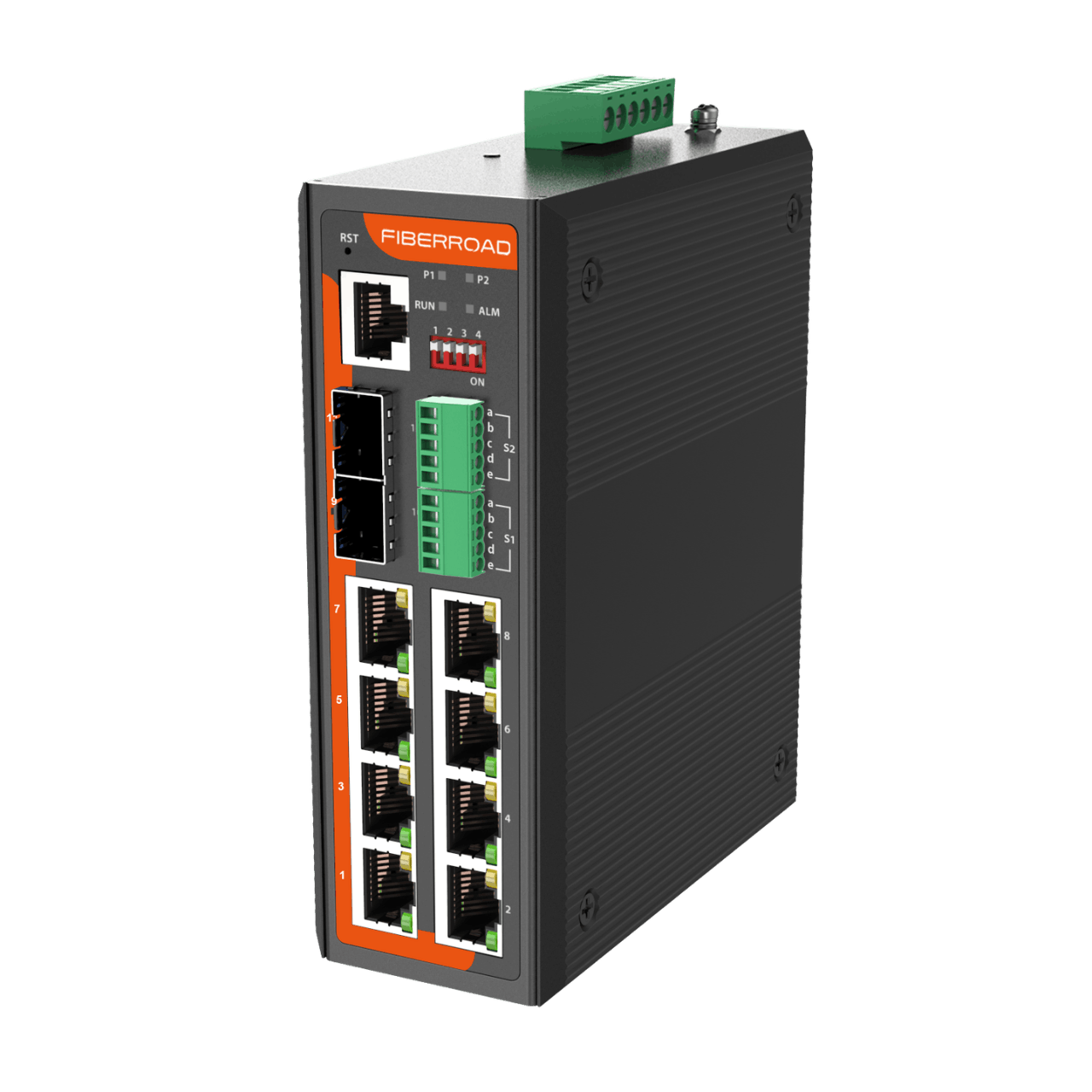

FR-7M3008P

Industrial L2+ Managed 8-port 10/100/1000Base-TX (PoE+) Ethernet Switch with Redundant DC Power Inputs

It is designed for demanding industrial environments requiring high reliability and stable network performance. It supports advanced Layer 2+ management functions to ensure efficient traffic control and secure Ethernet transmission in factories, outdoor installations, and other harsh operating conditions. Its rugged construction ensures reliable operation in industrial applications.

Engineered for continuous operation, the switch features dual power inputs to enhance system availability and ensure uninterrupted connectivity. It is housed in an IP40-rated metal enclosure and supports DIN-rail or wall mounting for flexible deployment. With an operating temperature range of -40 to 75°C, the switch is suitable for use in extreme industrial environments.

  • L2+
  • PoE+
  • Redundant DC
  • Din-Rail
  • -40°C to 75°C
Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy

Protected by hardware warranty

Advance replacement. Global coverage.

View policy

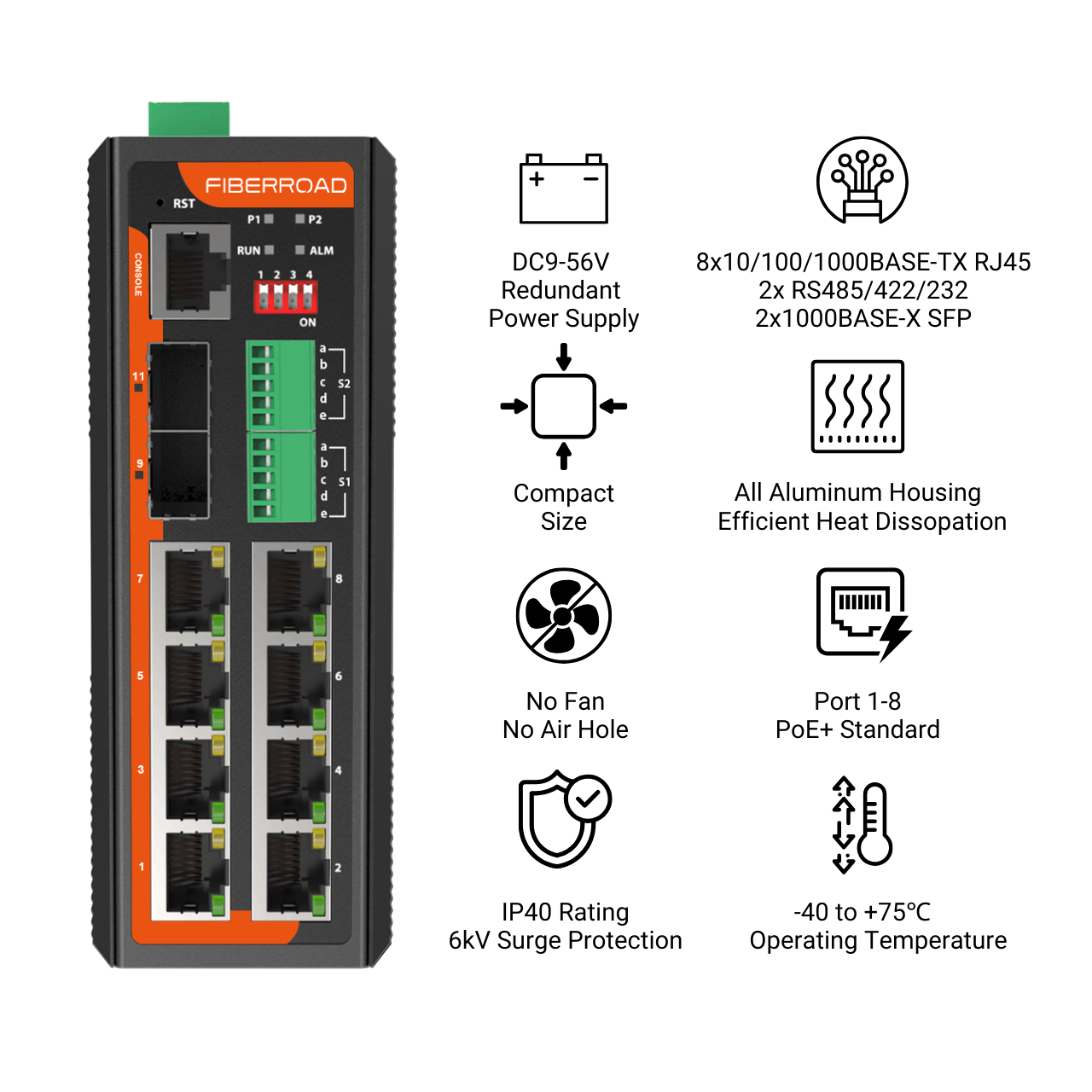

  • 8×10/100/1000BASE-T Gigabit Ethernet RJ45
  • Support IEEE 802.3 af/at/bt Power Over Ethernet Standard
  • Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.
  • Build up a redundant industrial network with STP/RSTP/MSTP/ERPSv2
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Traffic Classification Based on IEEE 802.1p, CoS, WRR, and Strict Mode
  • SNMPv1/v2c/v3 for different levels of network management
  • Wide operating temperature range -40 to 75℃ (-40 to 167℉)
Hardware Specifications
Product
FR-7M3008P
Copper Ports
8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-8)
Surge Protection
±6kV DC, ±4kV RJ45
Console
1x RJ45-to-RS232 Serial Port (115200)

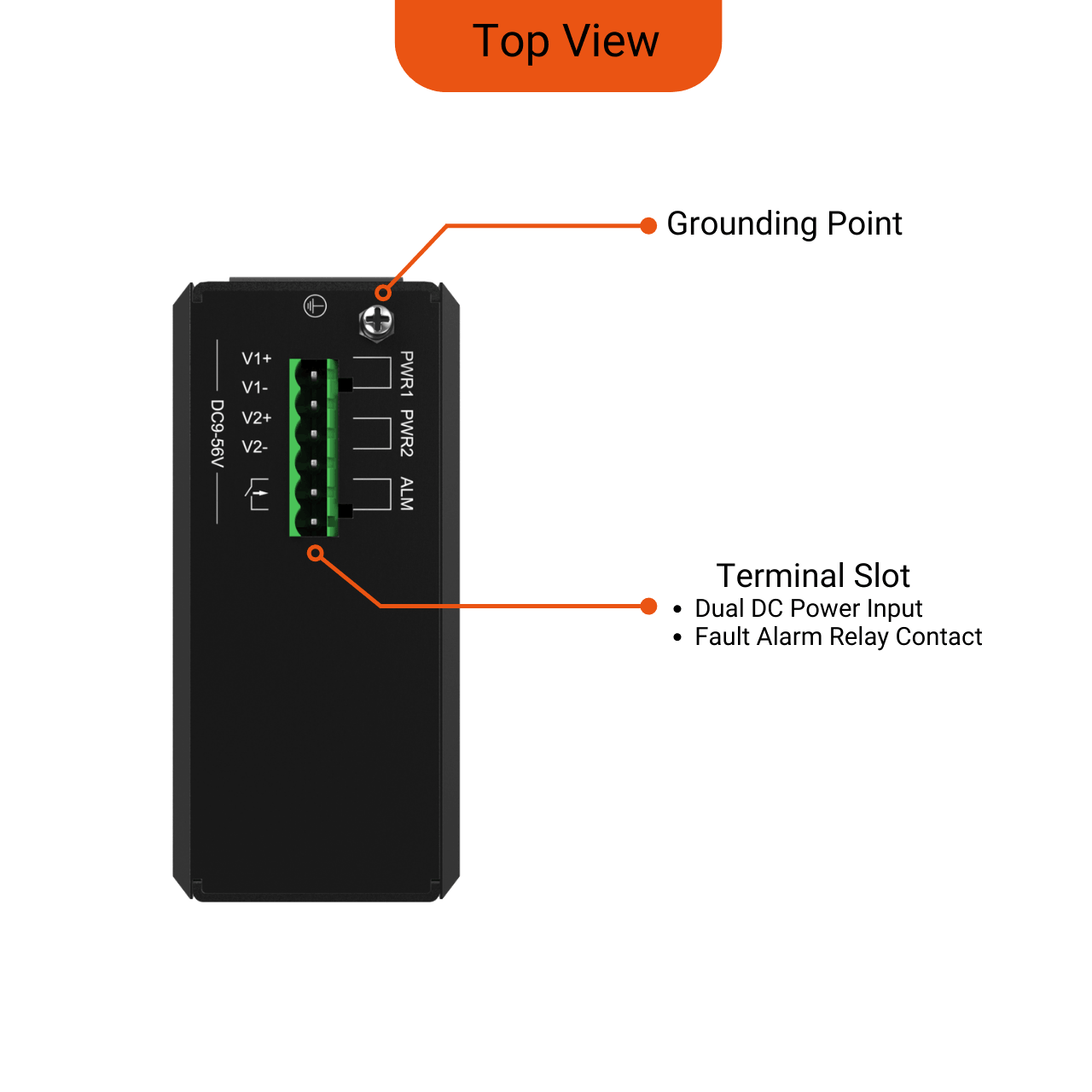

Connector
1 removable 6-contact terminal blocks; Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
Alarm
One relay output for power failure, Alarm relay current carry ability: 1A@24V DC
RAM
128Mbyte
FLASH
32MByte
Reset Button
＜5 sec: System Reboot; ＞10 sec: Factory Default
Enclosure
IP40 aluminum case

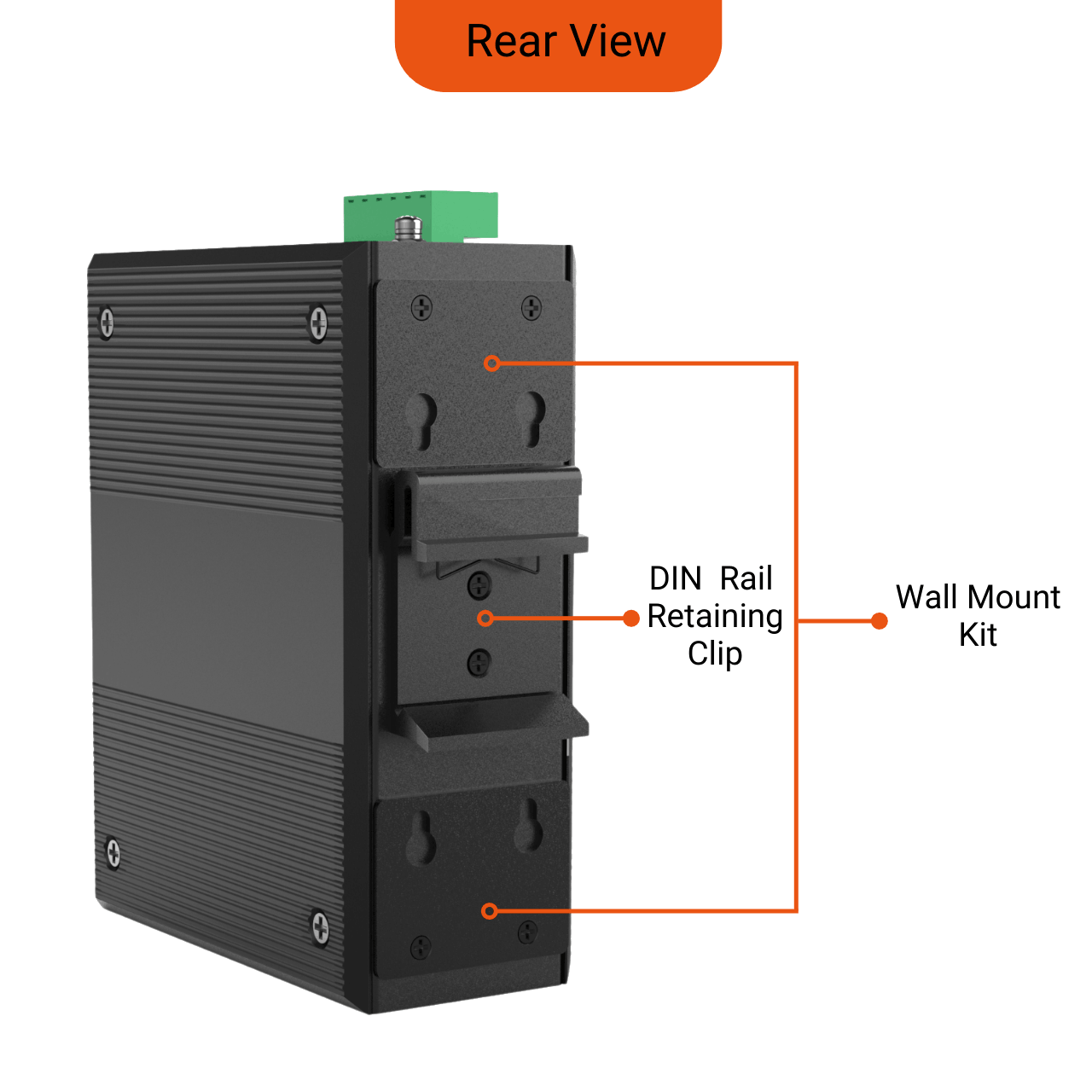

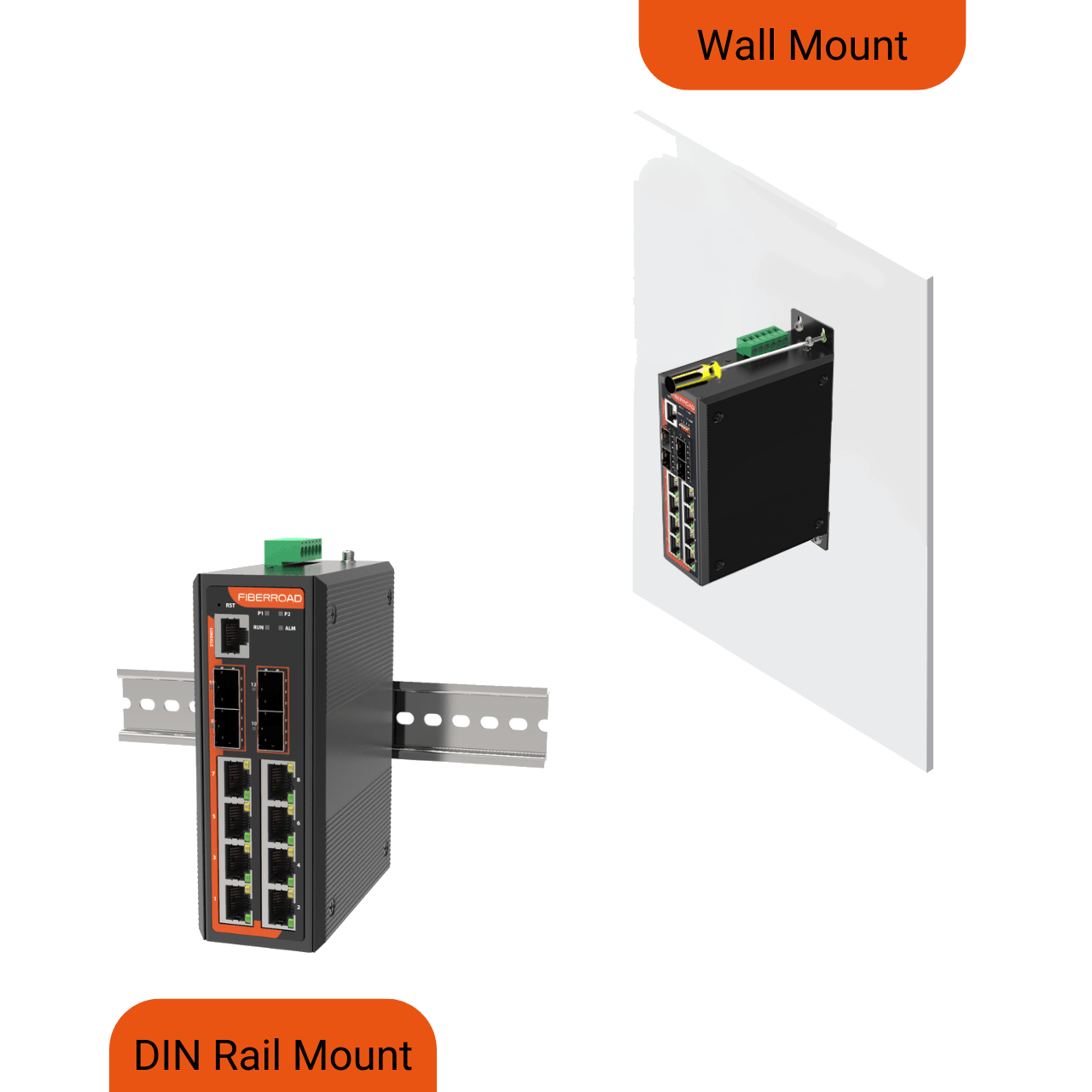

Installation
DIN-Rail and Wall-mount
Dimension
138 x 108 x 49mm
Weight
700g (Bare weight), 800g (With package)
Switching
Switch Architecture
Store-and-Forward
Switch Fabric
36Gbps/non-blocking
Forwarding Rate
11.9Mpps (64-byte packet size)
Packet Buffer Size
4 Mbits
Maximum Packet Length
10K bytes
MAC Address Table
8K entries, automatic source address learning and aging
Flow Control
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
PoE & Power Supply
PoE Ports
Port 1 to 8 IEEE802.3 af/at
PoE Power Supply Type
End-span
Power Supply Pin
1/2(+), 3/6(-)
Max Power Per Port
30W
Input Voltage
DC48-56V
Power Consumption
10 Watts Max (without PoE load)
PoE Power Budget
Max 240W@dual 52VDC inputs
Environmental
Operating Temperature
-40℃~75℃ (-40 to 167 ℉)
Storage Temperature
-40℃~85℃ (-40 to 185 ℉)
Operating Humidity
5%~95% (non-condensing)
MTBF
907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation
34 BTU/h (non-PoE mode); 853 BTU/h (with 240W PoE load)
Cooling
Passive Cooling, Fanless Design
Noise Level
0 dBA

AVAILABLE MODELS

Industrial L2+ Managed 8-port 10/100/1000Base-TX (PoE+) Ethernet Switch with Redundant DC Power Inputs

TypeVersionRelease Date
Datasheet
FR-7M3008P_BT Series Datasheet
Datasheet
3.2
16/06/2026
Manual
WebGUI Network Management User Manual
Manual
2.0
Manual
7 Series Quick Start Guide
Manual

Dimensions (W×D×H)

Send Enquiry

Our team typically responds within 1 business day.

FR-7M3008P

8-port Gigabit-TX (PoE+)


Your data is handled in accordance with our Privacy Policy.

Related Products

Browse all PoE Solutions

POE SOLUTIONS

FR-5A3216P

16x Gigabit-T RJ45 (Port 1 to 16 PoE+ Standard), 2x Gigabit SFP Slots
View Product

POE SOLUTIONS

FR-5A3224P

24x Gigabit-T RJ45 (Port 1 to 24 PoE+ Standard), 2x Gigabit SFP Slots
View Product

POE SOLUTIONS

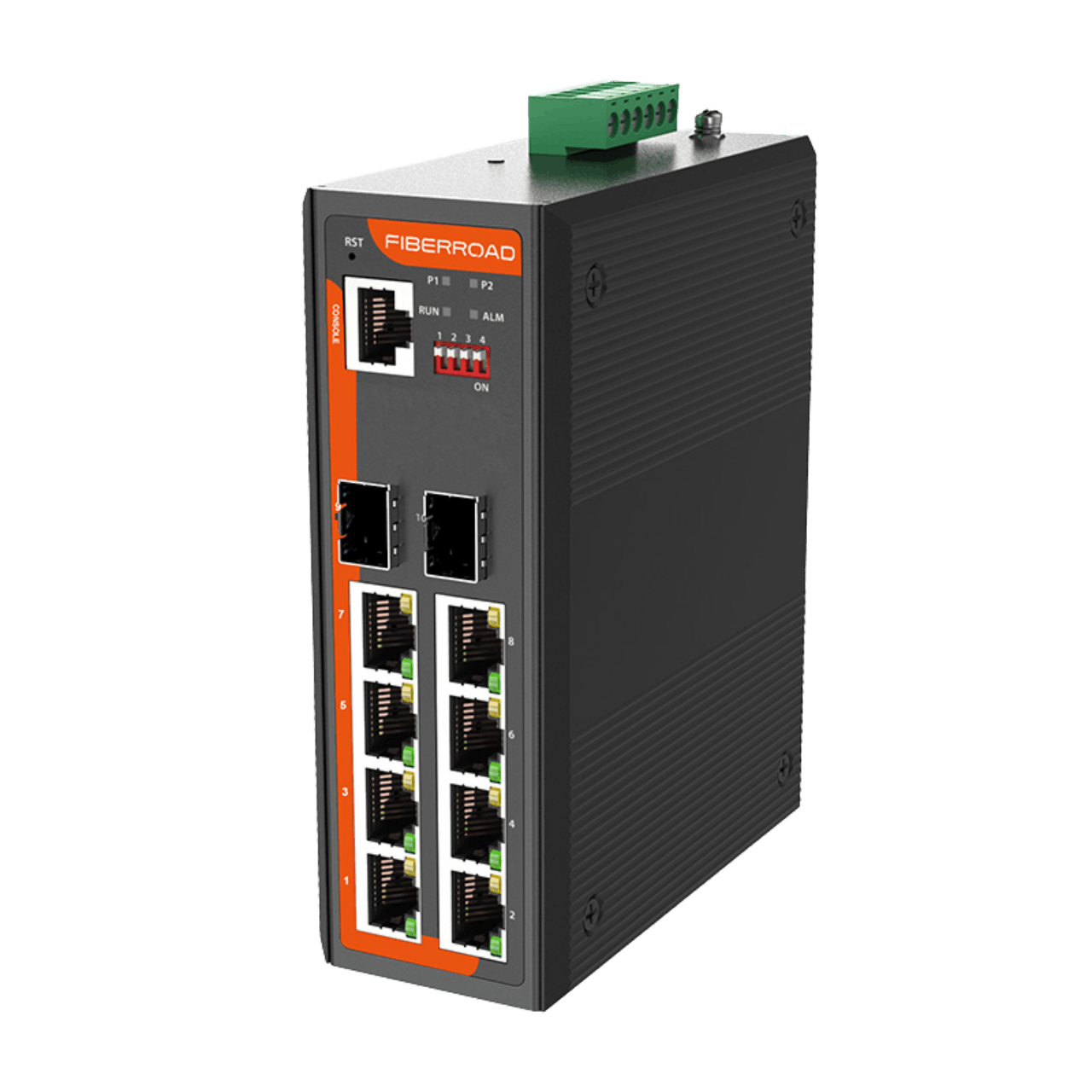

FR-7M3208BT
