INDUSTRIAL ETHERNET SWITCHES

Managed Ethernet Switches

FR-7M3008L

Industrial L2+ Managed 8-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs

It is designed for demanding industrial environments requiring high reliability and stable network performance. It supports advanced Layer 2+ management functions to ensure efficient traffic control and secure Ethernet transmission in factories, outdoor installations, and other harsh operating conditions. Its rugged construction ensures reliable operation in industrial applications.

Engineered for continuous operation, the switch features dual power inputs to enhance system availability and ensure uninterrupted connectivity. It is housed in an IP40-rated metal enclosure and supports DIN-rail or wall mounting for flexible deployment. With an operating temperature range of -40 to 75°C, the switch is suitable for use in extreme industrial environments.

L2+
Redundant DC
Din-Rail
-40°C to 75°C

Enquire Now

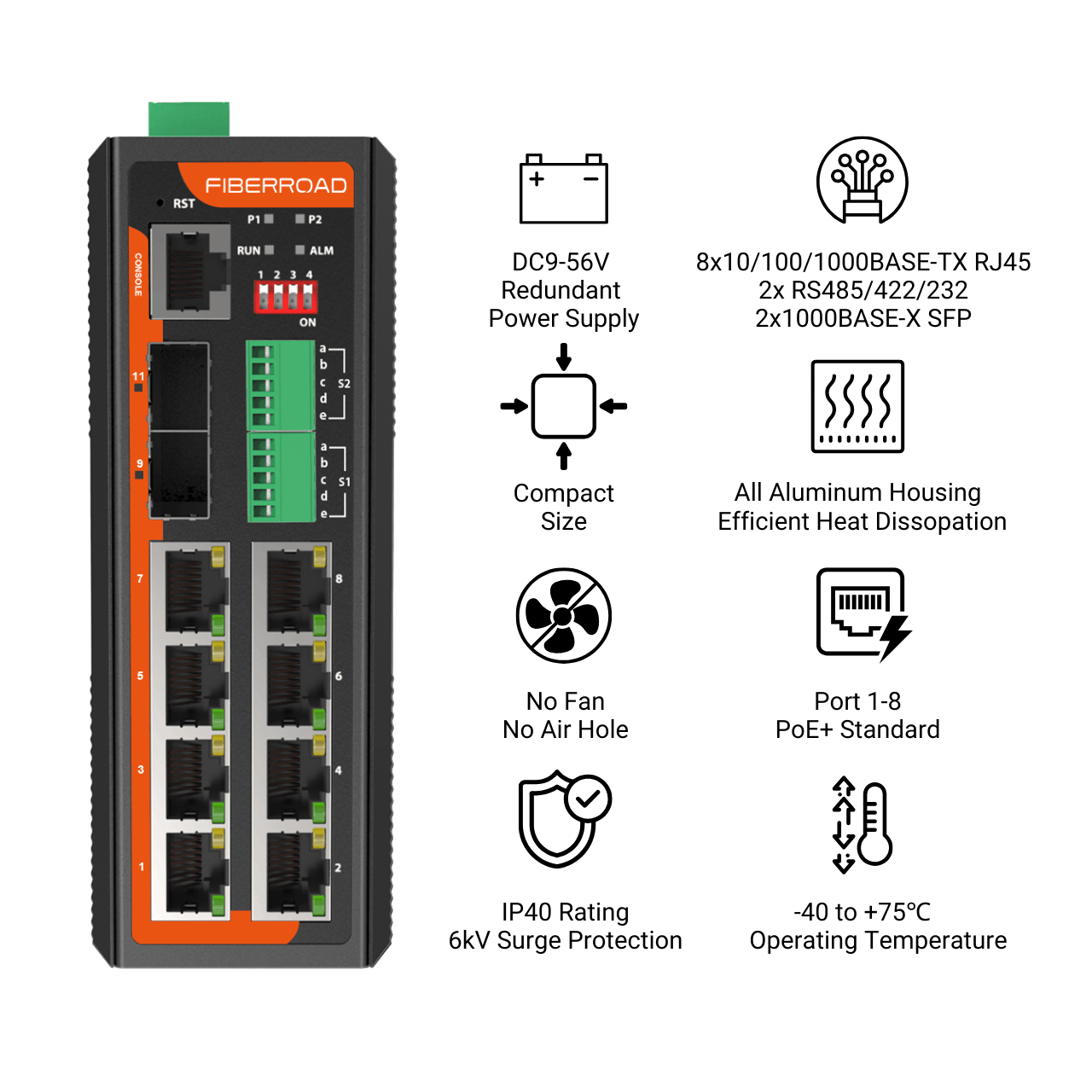

8×10/100/1000BASE-T Gigabit Ethernet RJ45
Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.
Build up a redundant industrial network with STP/RSTP/MSTP/ERPSv2
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
Traffic Classification Based on IEEE 802.1p, CoS, WRR, and Strict Mode
SNMPv1/v2c/v3 for different levels of network management
Wide operating temperature range -40 to 75℃ (-40 to 167℉)

Hardware Specifications

Product

FR-7M3008L

Copper Ports

8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-8)

Console

1x RJ45-to-RS232 Serial Port (115200)

Connector

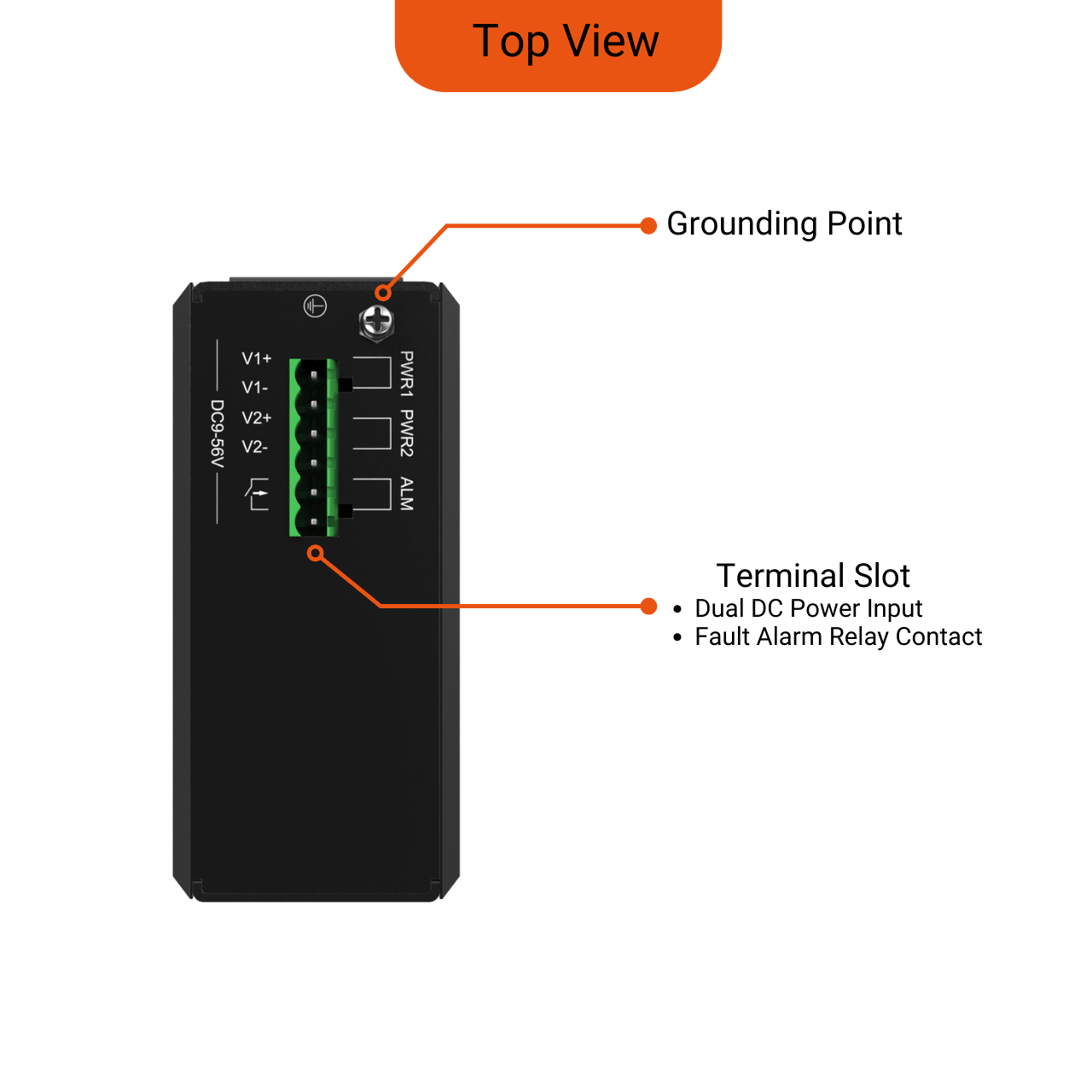

1 removable 6-contact terminal blocks; Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Alarm

One relay output for power failure, Alarm relay current carry ability: 1A@24V DC

RAM

128Mbyte

FLASH

32MByte

Reset Button

＜5 sec: System Reboot; ＞10 sec: Factory Default

Surge Protection

±6kV DC, ±6kV RJ45

Enclosure

IP40 aluminum case

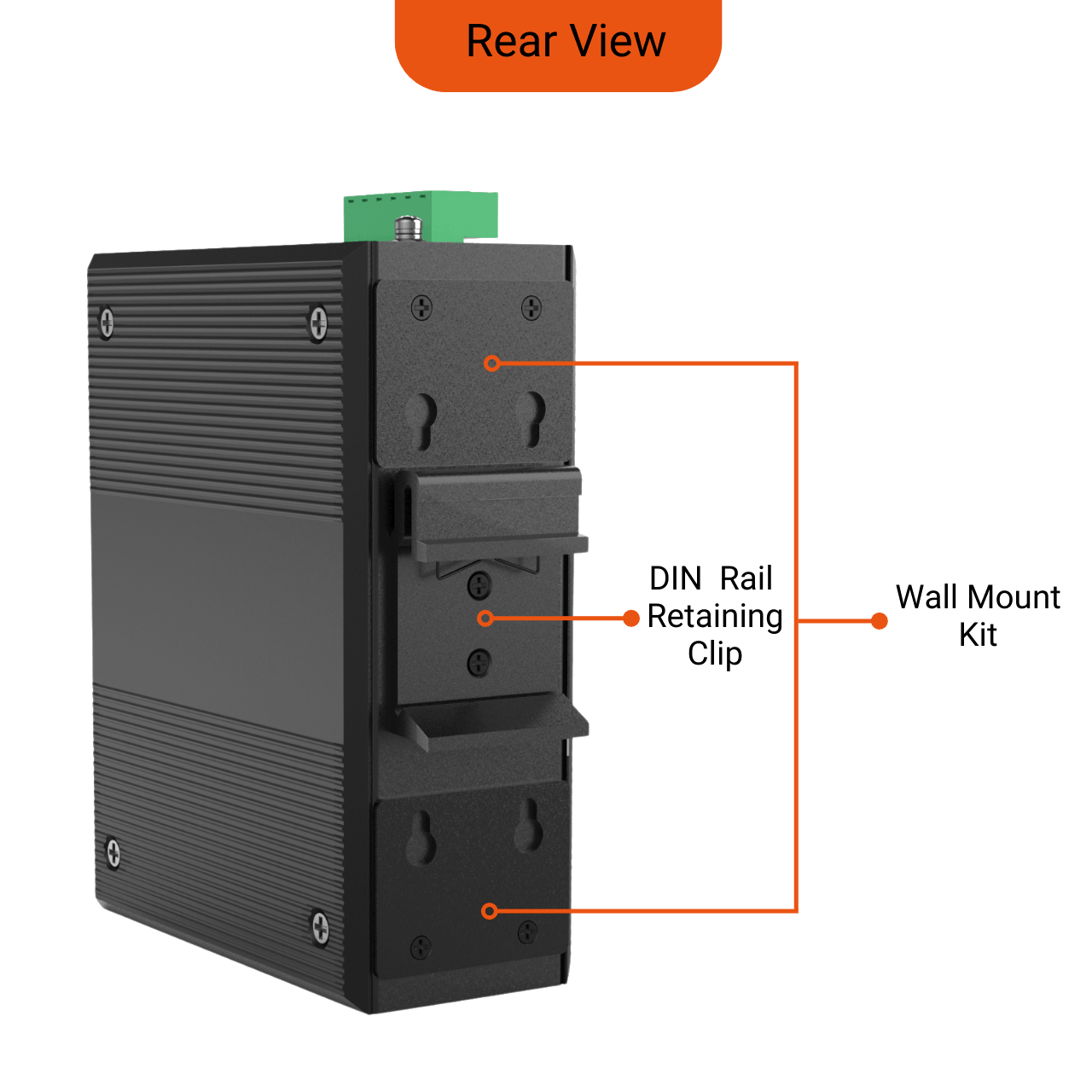

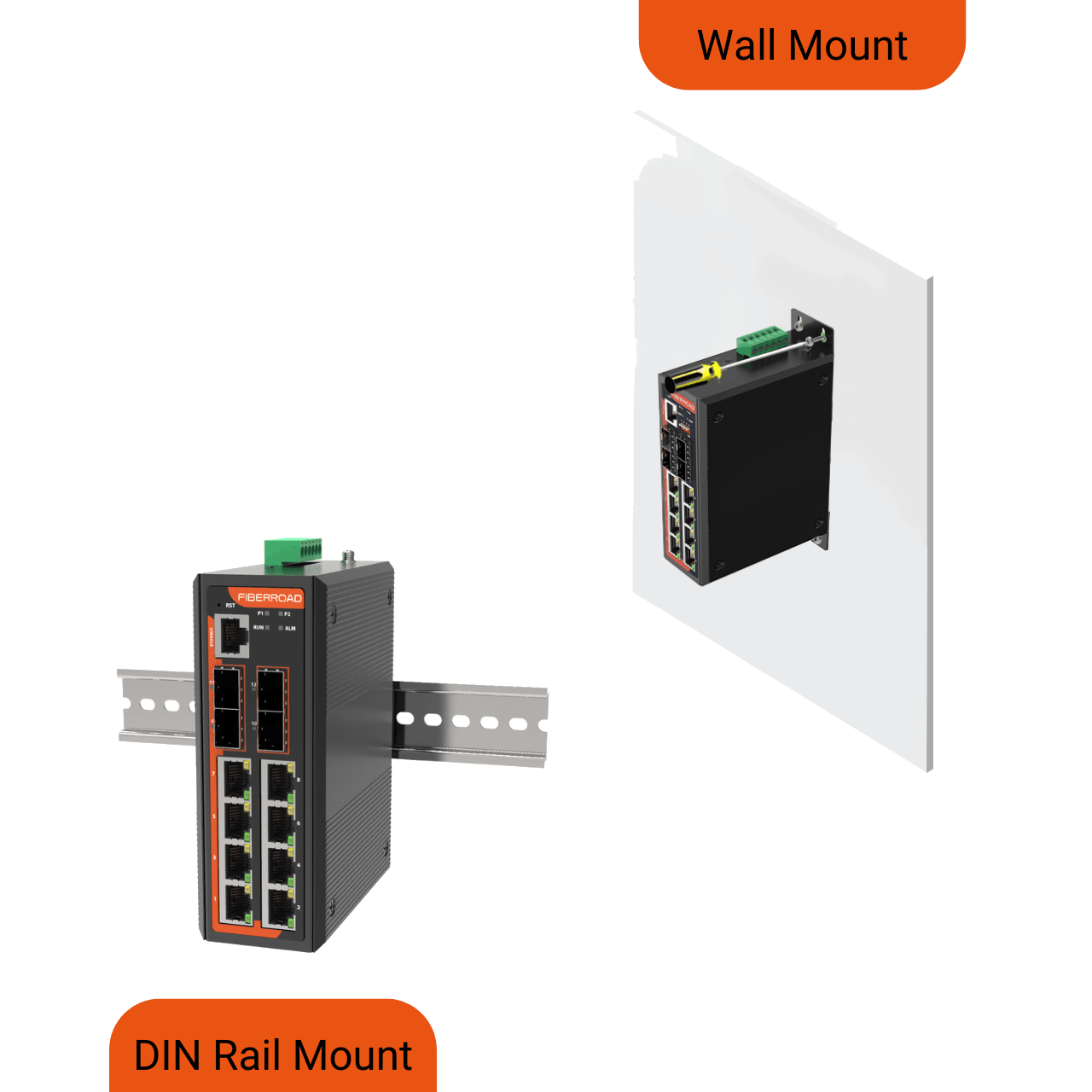

Installation

DIN-Rail and Wall-mount

Dimension

138 x 108 x 49mm

Weight

700g (Bare weight), 800g (With package)

Switching

Switch Architecture

Store-and-Forward

Switch Fabric

16Gbps/non-blocking

Forwarding Rate

11.9Mpps (64-byte packet size)

Packet Buffer Size

4 Mbits

Maximum Packet Length

10K bytes

MAC Address Table

8K entries, automatic source address learning and aging

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Power Supply

Number of Input

Input Voltage

DC9-56V

Power Consumption

8 Watts Max.

Environmental

Operating Temperature

-40℃~75℃ (-40 to 167 ℉)

Storage Temperature

-40℃~85℃ (-40 to 185 ℉)

Operating Humidity

5%~95% (non-condensing)

MTBF

907,476 hours @ Telcordia SR-332 Standard

Cooling

Passive Cooling, Fanless Design

Noise Level

0 dBA

AVAILABLE MODELS

Industrial L2+ Managed 8-port 10/100/1000Base-TX Ethernet Switch with Redundant DC Power Inputs

TypeVersionRelease Date

Datasheet

FR-7M3008L Datasheet

Datasheet

2.0

24/03/2026

Download

Manual

WebGUI Network Management User Manual

Manual

2.0

Download

Manual

7 Series Quick Start Guide

Manual

Download
