Ports
6×10Gigabit SFP plus; 24×10/100/1000M Base-TX RJ45; 1x RJ45 Console Port
Port Mode (Tx)
Auto-Negotiation; Full/Half Duplex Mode; Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseSX/LX/LHX/ZX; IEEE 802.3ae for 10 Gigabit Ethernet; IEEE 802.3x for flow control; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1s for Multiple Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE 802.1Q for VLAN Tagging; IEEE 802.1X for authentication; IEEE 802.3ad for Port Trunk with LACP
Transmission Mode
Store and Forward (full/half duplex mode)
Routing Table
12K (IPv4); 6K (IPv6)
ARP Table
12K (IPv4); 2K (IPv6)
Management
Console, Telnet, SSHv1/v2, HTTP/HTTPs; SNMPv1/v2/v3, RMON; TFTP, FTP, SFTP
Data Center Features
Supports the FVSS virtualization technology (Up to 8 units stacking)
MAC
Supports static configuration and dynamic learning of MAC addresses; View and clear MAC addresses; The MAC address aging time can be configured, limit the number of MAC addresses to be learned; Supports MAC address filtering; Supports black hole MAC entries; Support IEEE 802.1AE MacSec security control
VLAN
Supports 4K VLAN entries; GVRP is supported; Supports 1:1 and N:1 VLAN Mapping; Supports basic QinQ and flexible QinQ functions; Private VLAN support
STP
Support 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP); Supports BPDU protection, root protection, and loop protection
Multicast
IGMP v1/v2/v3 is supported; IGMP Snooping is supported; IGMP Fast Leave is supported; Supports multicast group policies and limits the number of multicast groups; Supports cross-VLAN replication of multicast traffic; Supports PIM-SM, PIM-DM
IPv4

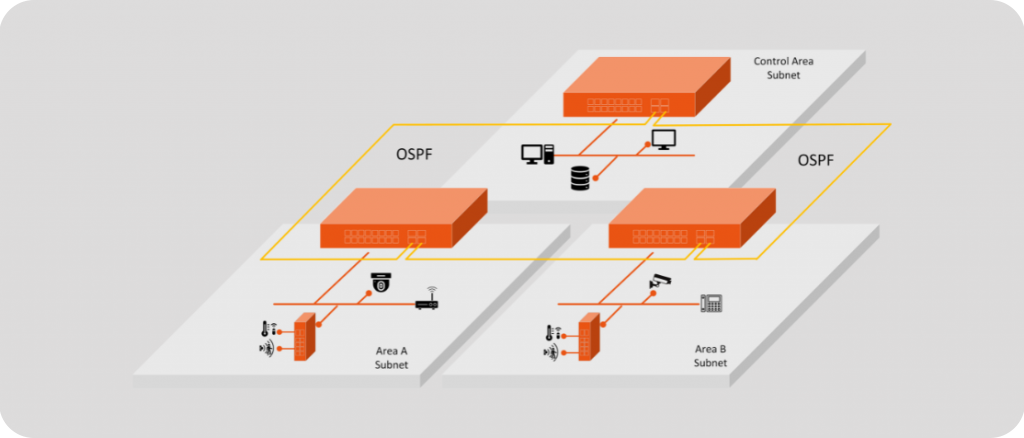

Supports static routes, RIP v1/v2, OSPF, BGP, IS-IS, and EIGRP; Support policy routing; Supports equal-cost routes for load balancing; Supports BFD for OSPF and BGP
IPv6
Supports ICMPv6, DHCPv6, ACLv6, and IPv6 Telnet; Supports IPv6 neighbor discovery; Supports Path MTU discovery; Support MLD v1/v2, Support MLD Snooping; Supports IPv6 static routes, RIPng, OSPFv3, and BGP4+; Supports manual tunnels, ISATAP tunnels, and 6to4 tunnels
MPLS VPN
Support LDP, MCE; Supports the P/PE function requirements of MPLS VPN; Support MPLS TE; Supports MPLS OAM
QOS
Supports traffic classification based on each field of the L2/L3/L4 protocol header; Supports CAR traffic limiting, 802.1P/DSCP priority re-marking is supported; Supports SP, WRR, and SP+WRR queue scheduling modes; Supports congestion avoidance mechanisms such as Tail-Drop and WRED; Supports traffic monitoring and traffic shaping; Ingress and Egress ACLs match L2, L3, L4, and IP quintuples for replication, forwarding, and discard; Supports Hash same-source load balancing to ensure session integrity of traffic output
Security
Supports the security mechanism of ACL traffic identification and filtering based on L2, L3, and L4; Defend against DDoS attacks, TCP SYN Flood attacks, and UDP Flood attacks; Supports suppression of multicast, broadcast, and unknown unicast packets; Support port isolation; Supports port security and IP+MAC+port bonding; DHCP Snooping and DHCP Option 82 are supported; Supports IEEE 802.1x authentication; Supports Radius and Tacacs+ authentication; Support uRPF; Supports hierarchical command line protection
Reliability
Optional support 1+1 power backup; Link aggregation in static or LACP mode, and link aggregation across service cards; Supports EAPS and ERPS ring network protection; Supports HSRP and VRRP hot backup; GR for OSPF and BGP are supported; Supports FD for OSPF and BGP; Supports ISSU service uninterrupted system upgrade
Maintenance
Supports Console, Telnet, and SSH 2.0; Supports browser-based WEB management; SNMP v1, v2, and v3 are supported; Supports file upload and download management in TFTP mode; Supports RMON event history; Supports statistical analysis of traffic such as sFLOW
