NETWORK PERIPHERALS

Power Supplies & Adapters

HDR-30-24

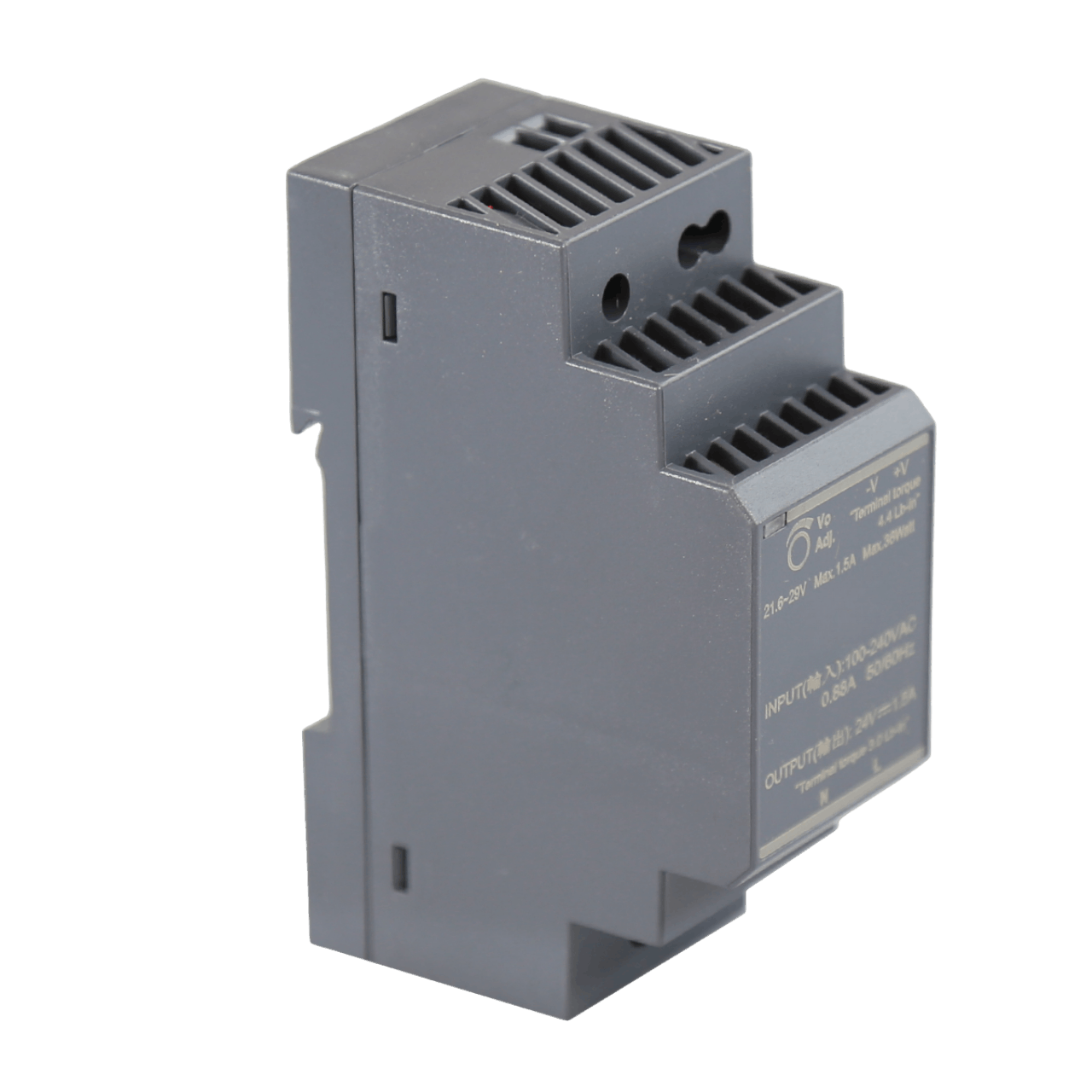

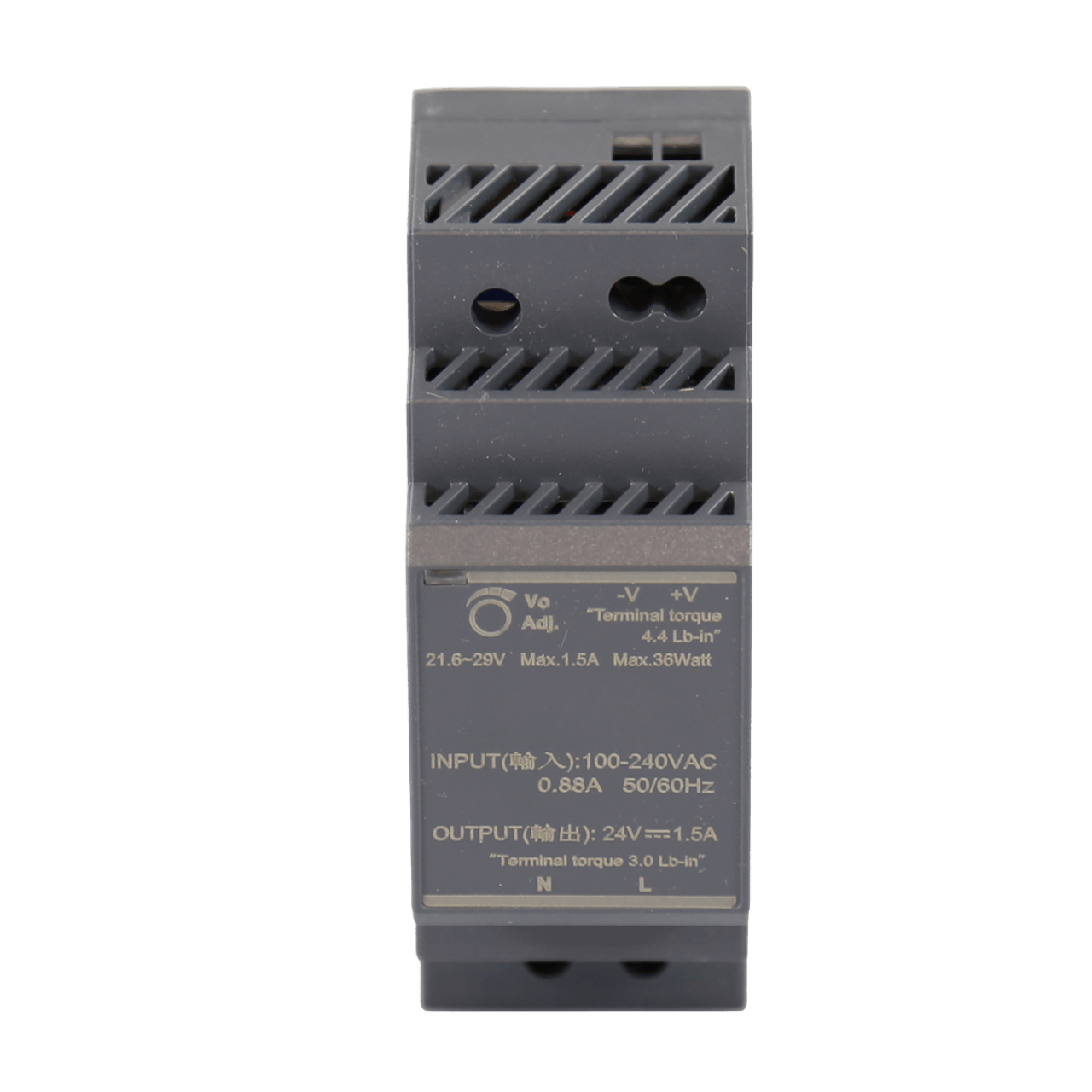

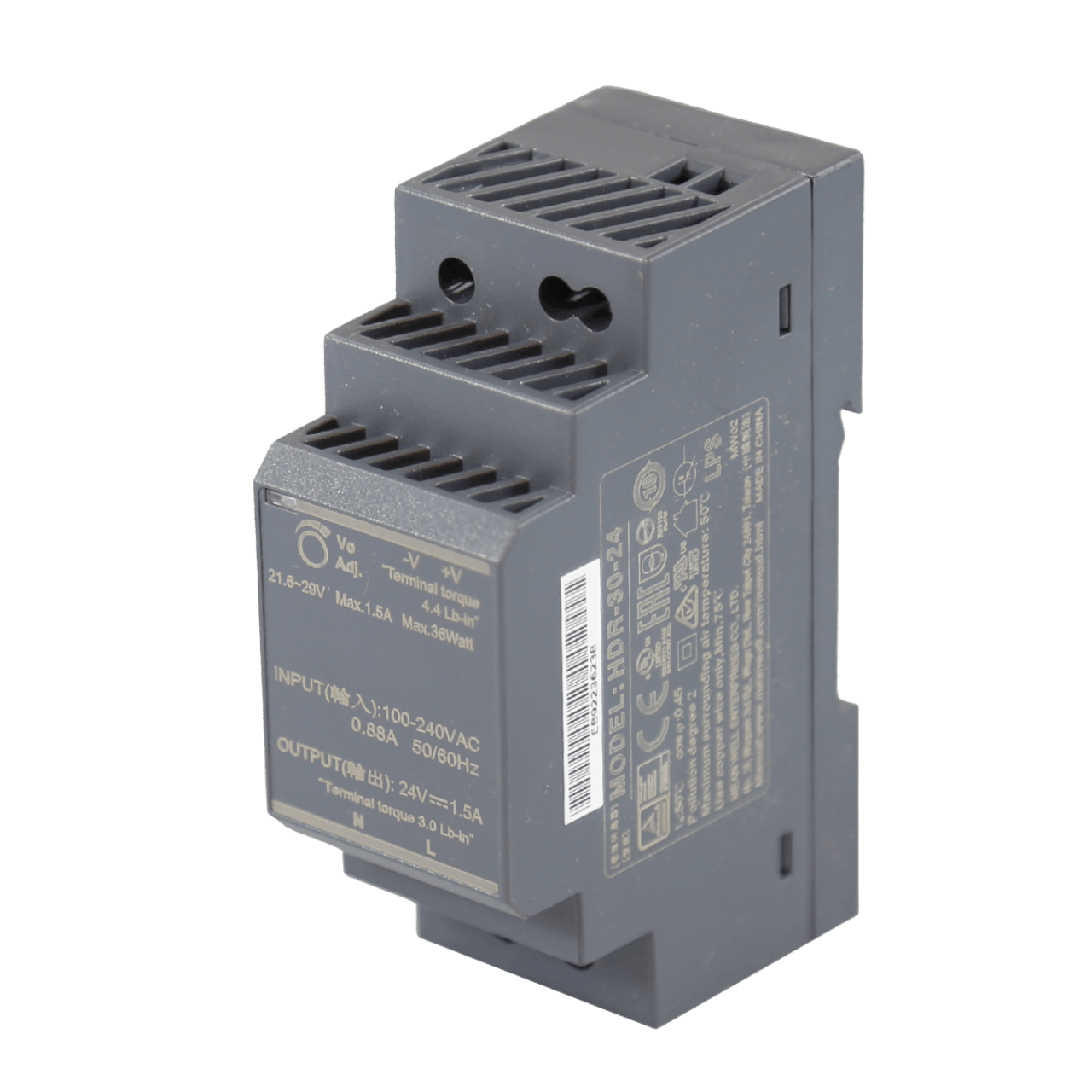

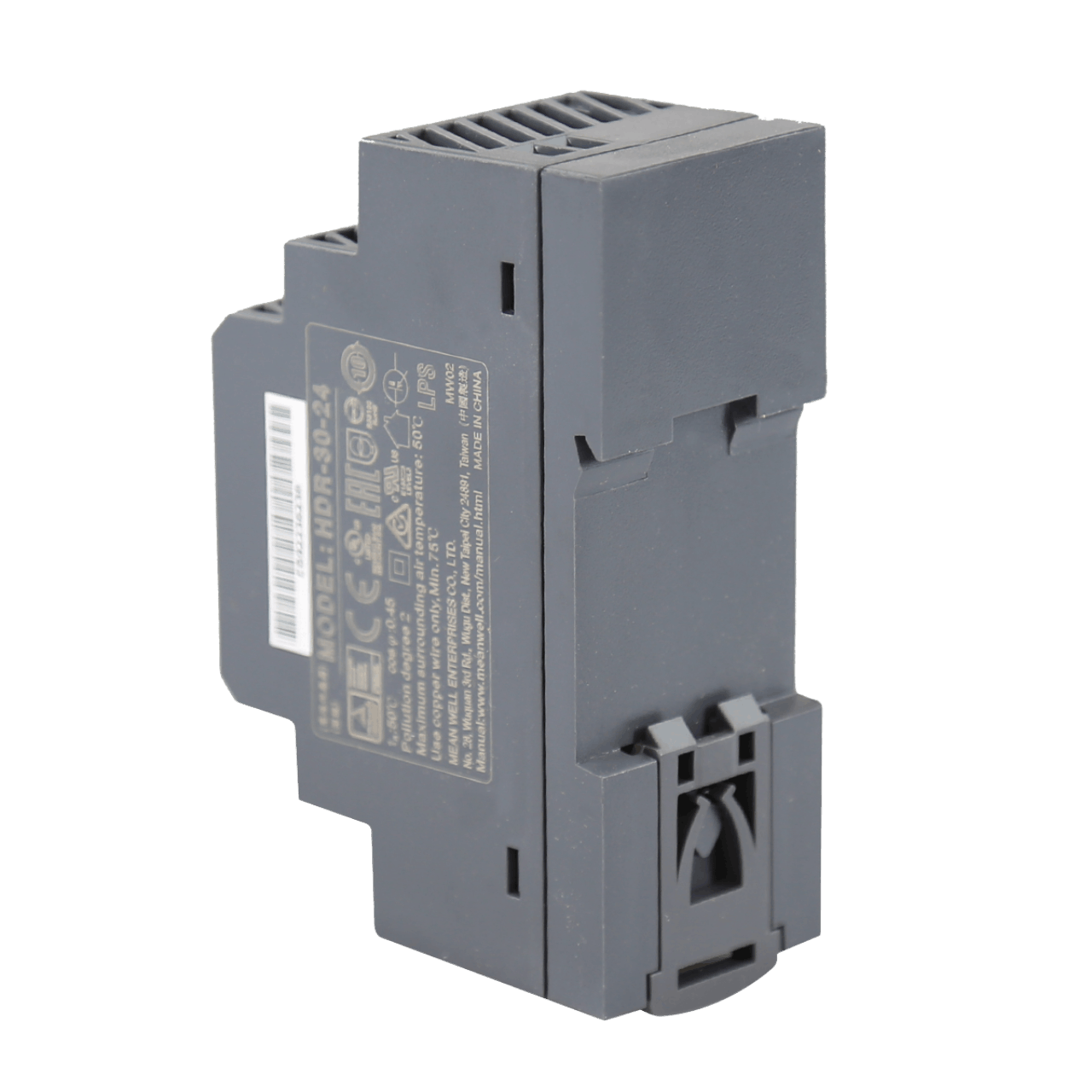

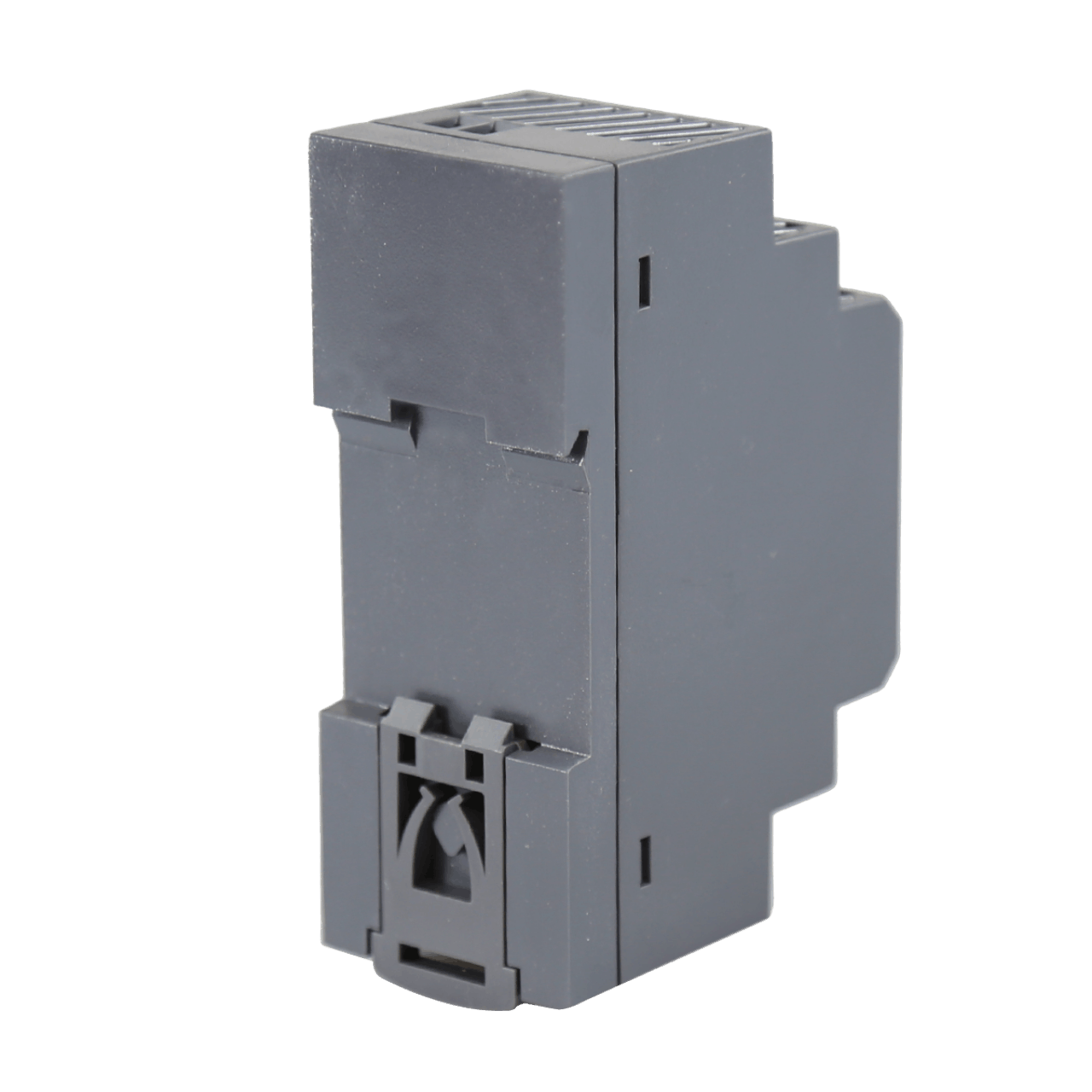

36 Watt Industrial Single Output DIN Rail Power Supply – 24 VDC / 1.5 Amps

HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 35mm(2SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-30 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16) make HDR-30 a very competitive power supply solution for household and industrial applications.

Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
  • Ultra slim design with 35mm(2SU) width
  • Universal input 85~264VAC (277VAC operational)
  • No load power consumption <0.3W
  • Isolation class II
  • Pass LPS (Limited power source)
  • DC output voltage is adjustable
  • Protections: Short circuit / Overload / Overvoltage
  • Cooling by free air convection (working temperature: -30~+70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
Output
DC Voltage
24V
Rated Current
1.5A
Current Range
0 - 1.5A
Rated Power
36W
Ripple & Noise (max.)
150mVp-p
Voltage Adj. Range
21.6-29V
Voltage Tolerance
±1.0%
Line Regulation
±1.0%
Load Regulation
±1.0%
Setup, Rise Time
500ms, 50ms/230VAC | 500ms, 50ms/115VAC at full load
Hold Up Time (Typ.)
30ms/230VAC | 12ms/115VAC at full load
Input
Voltage Range
85-264VAC (277VAC operational) | 120-370VDC (390VDC operational)
Frequency Range
47 ~ 63Hz
Efficiency (Typ.)
89%
AC Current (Typ.)
0.88A/115VAC | 0.48A/230VAC
Inrush Current (Typ.)
Cold start: 25A/115VAC | 45A/230VAC
Protection
Overload
105 ~ 130% rated output power | Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed | Constant current limiting within 50%-100% rated output voltage, recovers automatically after fault condition is removed
Over Voltage
30-36V | Shut down o/p voltage, re-power on to recover
Environment
Working Temperature
-30 ~ +70℃ (Refer to Derating Curve)
Working Humidity
20 ~ 90% RH non-condensing
Storage Temperature, Humidity
-40 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient
±0.03%/℃ (0 ~ 50℃)
Vibration
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | Mounting: Compliance to IEC60068-2-6
Operating Altitude
2000 meters
Over Voltage Category
III; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
Safety & EMC
Safety Standards
UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, BSMI CNS15598-1, BS EN/EN61558-1 approved; EAC TP TC 004 (design refer to TUV EN62368-1)
Withstand Voltage
I/P-O/P: 4KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission
Conducted: EN55032 (CISPR32), CNS15936 (Class B) | Radiated: EN55032 (CISPR32), CNS15936 (Class B) | Harmonic Current: EN61000-3-2 (Class A) | Voltage Flicker: EN61000-3-3
EMC Immunity
Standards: EN55035, EN61000-6-2, EN61204-3 | ESD: EN61000-4-2 (Level 3, 8KV air; Level 2, 4KV contact, criteria A) | Radiated Susceptibility: EN61000-4-3 (Level 3, criteria A) | EFT/Burst: EN61000-4-4 (Level 3, criteria A) | Surge: EN61000-4-5 (Level 4, 2KV/L-N, criteria A) | Conducted: EN61000-4-6 (Level 3, criteria A) | Magnetic Field: EN61000-4-8 (Level 4, criteria A) | Voltage Dips and Interruptions: EN61000-4-11 (>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods)
Others
MTBF
3670.4K hrs min. Telcordia SR-332 (Bellcore); 968.1K hrs min. MIL-HDBK-217F (25℃)
Dimension
35 x 90 x 54.5mm (W x H x D)
Packing
0.13Kg; 96pcs/14.2Kg/1.04CUFT

AVAILABLE MODELS

36 Watt Industrial Single Output DIN Rail Power Supply – 24 VDC / 1.5 Amps

TypeVersionRelease Date
Datasheet
HDR-30-SPEC Datasheet
Datasheet
Manual
HDR Installation Manual
Manual

Dimensions (W×D×H)
