INDUSTRIAL ETHERNET SWITCHES

Managed Ethernet Switches

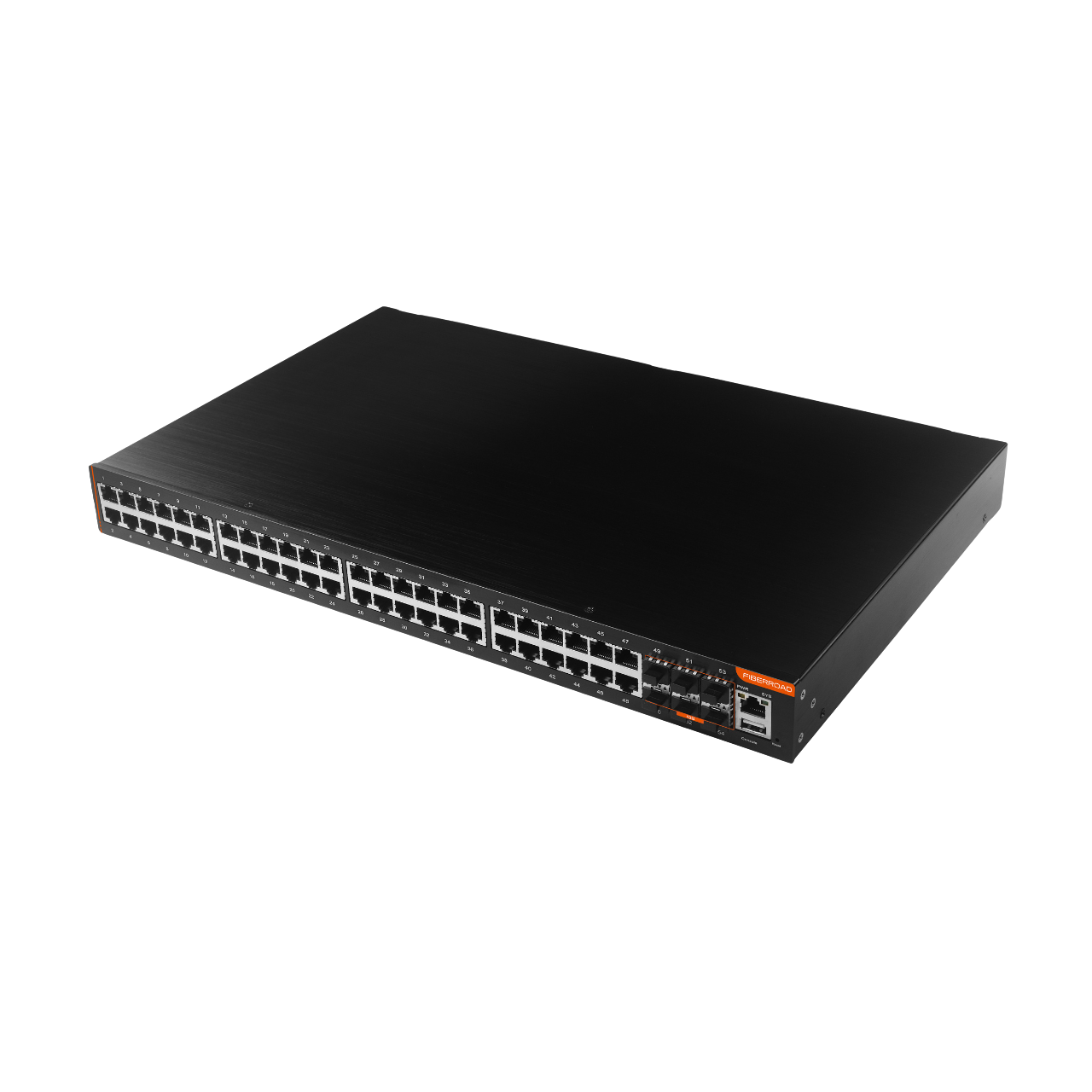

FR-9T4648

Industrial L3 Managed 48-port 10/100/1000Base-TX + 6-port 1000M/10GBase-SFP Ethernet Switch with Redundant AC Power Inputs, 1U Rack-mount

Designed with a focus on durability, this switch features a shell that follows the design standards of industrial products and adopts a 19-inch rack design for easy installation. It can withstand a wide range of working temperatures, making it perfect for deployment in harsh environments. With dual power supply redundancy (DC37-75V/AC100-240V), this switch ensures uninterrupted operation even in case of power failures.

Its high/low temperature and lightning protection capabilities guarantee excellent industrial-grade quality. In terms of functionality, the FR-9T4648 offers powerful management functions including system management, comprehensive Layer 2 and Layer 3 routing management, QoS queue management, network security management, monitoring, and maintenance management. Additionally, its industrial-grade 3rd ESD protection makes it suitable for various deployment scenarios.

  • L3
  • Redundant AC
  • Rack mount
  • -40°C to 75°C
Enquire Now
Download Datasheet

Protected by hardware warranty

Advance replacement. Global coverage.

View policy

Protected by hardware warranty

Advance replacement. Global coverage.

View policy
  • Supports ARP/RIP/OSPF/OSPFv3/BGP/Router Discovery/VRRP/Route-Map/BFD Layer 3 routing
  • Supports both IPv4/IPv6 applications
  • Supports RADIUS/TACACS+ server and 802.1x/Enable level/HTTP/HTTPS/Dot1x authentication
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Supports STP/RSTP/MSTP spanning tree protocol and loop protection protocol, CST and MST configuration, eliminates second-layer loops, and enables link backup

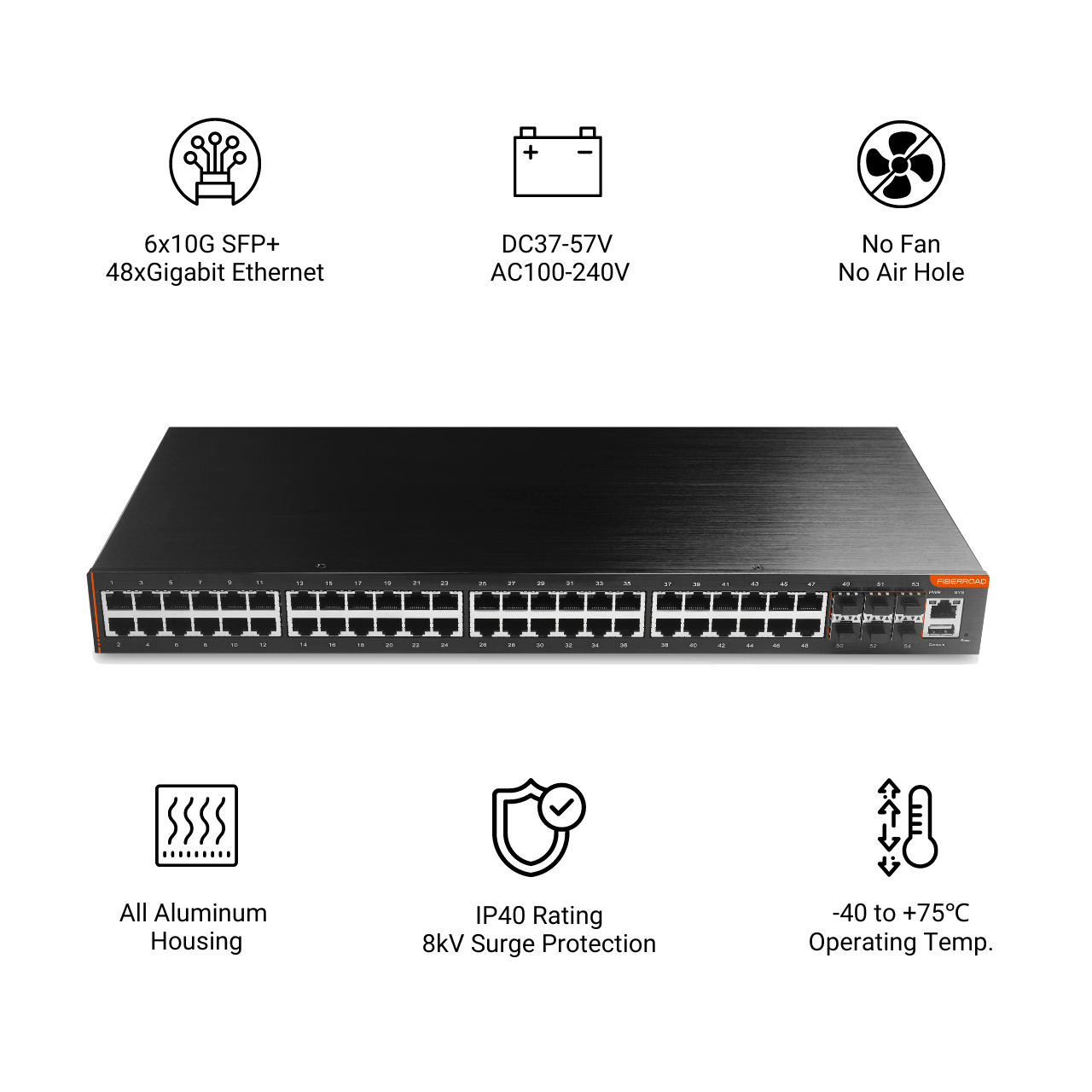

  • Fanless, IP40 rating, -40℃~75℃ operation temperature design for harsh environments
  • Redundant AC power inputs
Ethernet Interface
Model
FR-9T4648
Ports
6×1G/10G SFP+ Slot; 48×10/100/1000Base-T RJ45; 1x RJ45 Console Port; 1x USB 2.0 Storage Port
Port Mode (Tx)
Auto-Negotiation, Full/Half Duplex Mode, Auto MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseSX/LX/LHX/ZX; IEEE 802.3ae for 10 Gigabit Ethernet; IEEE 802.3x for flow control; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1s for Multiple Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE 802.1Q for VLAN Tagging; IEEE 802.1X for authentication; IEEE 802.3ad for Port Trunk with LACP
Packet Buffer Size
16 Mbits
Maximum Packet Length
Up to 12K
MAC Address Table
32K
Transmission Mode
Store and Forward (full/half duplex mode)
Exchange Property

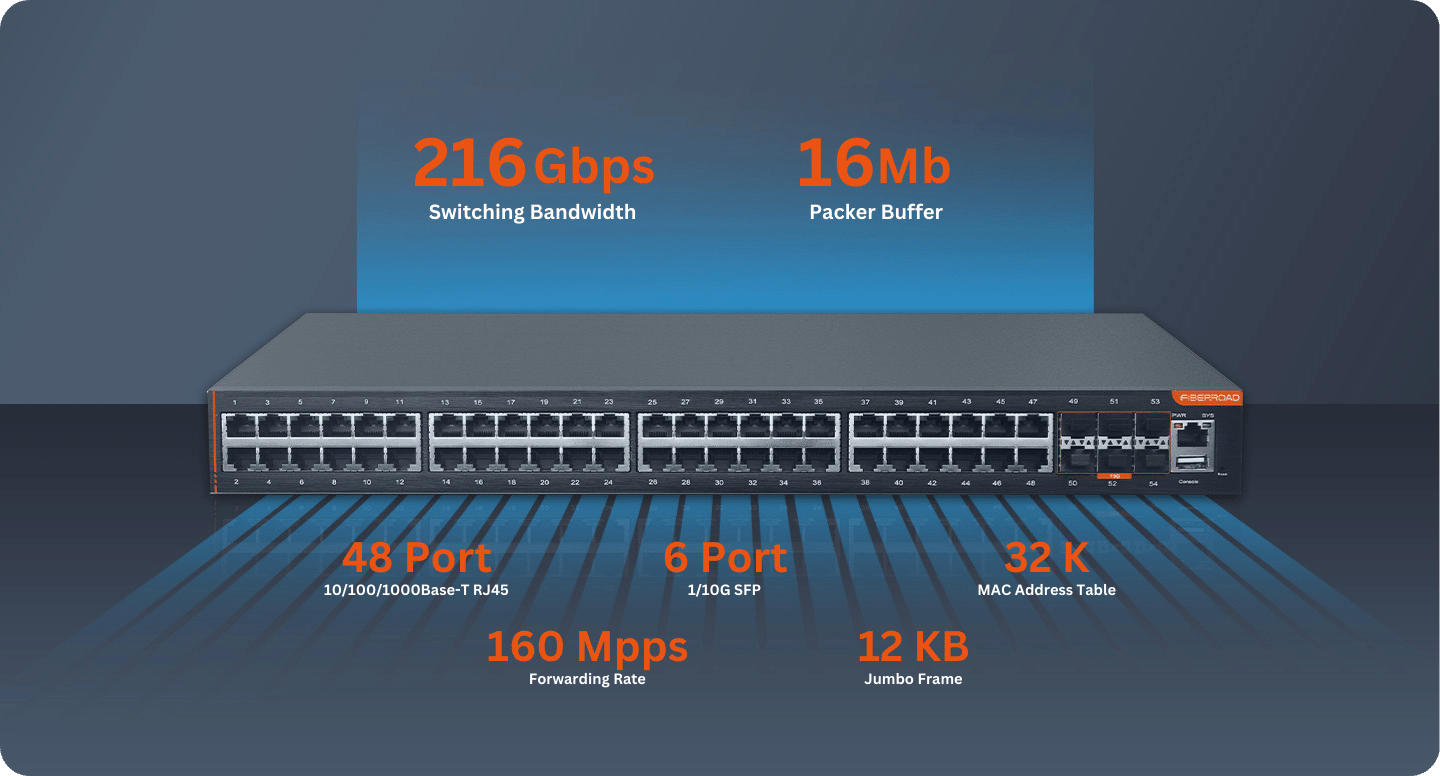

Backplane bandwidth: 216G
Packet Forwarding Rate
160.7 Mpps
Physical Characteristics
Housing
Aluminum case
IP Rating
IP40
Dimensions
440mm x 250mm x 45mm
Installation

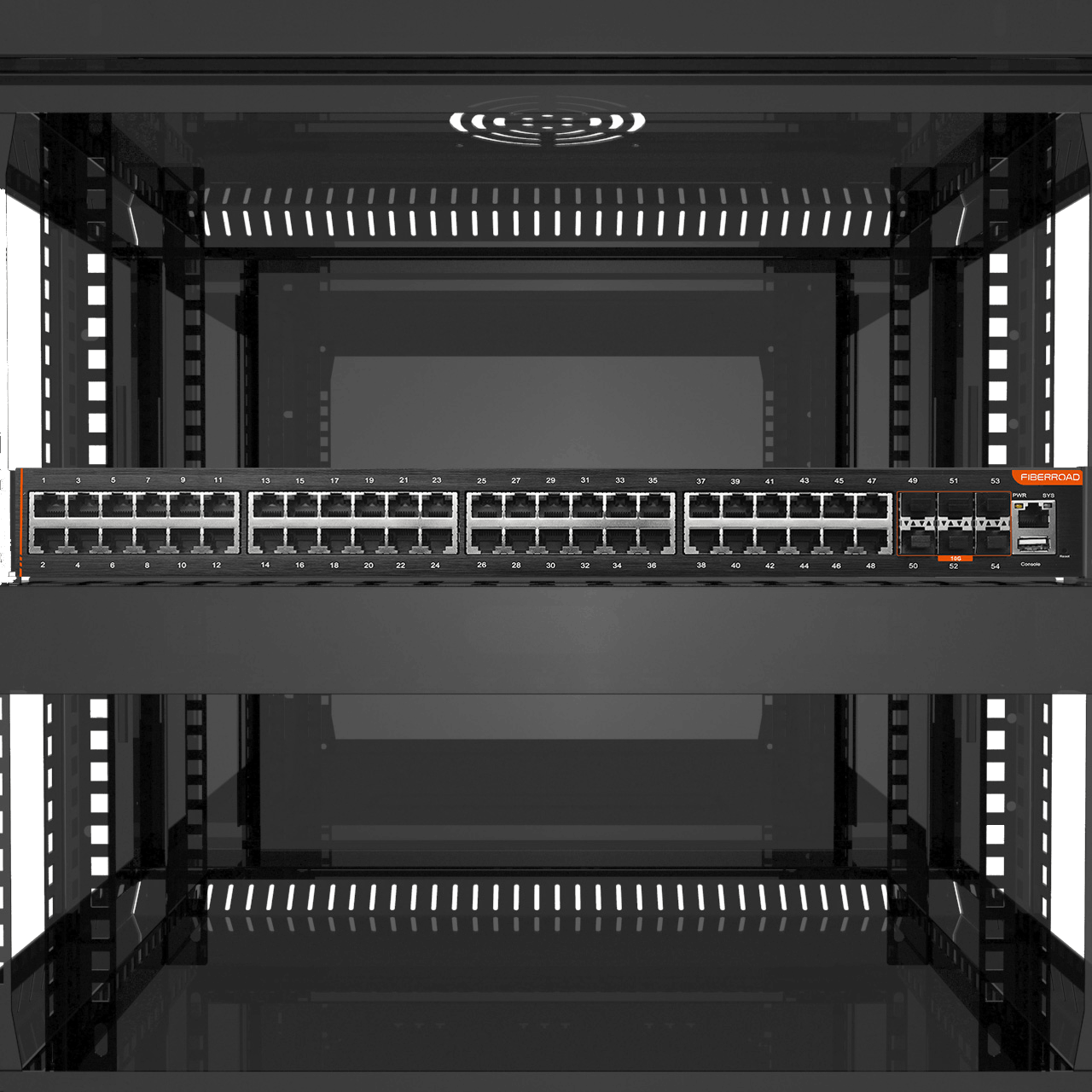

Rack Mount
Weight
3800g
Environmental
Operating Temperature
-40℃~75℃ (-40 to 167 ℉)
Operating Humidity
5%~90% (non-condensing)
Storage Temperature
-40℃~85℃ (-40 to 185 ℉)
MTBF
>250,000 hours @ Telcordia (Bellcore) GB
Heat Dissipation
220.69 BTU/h
Cooling
Passive Cooling, Fanless Design
Noise Level
0 dBA
Software Features
Layer 3 Routing
ARP, RIP, OSPF, OSPFv3, BGP, Router Discovery, VRRP, Route-Map, BFD
IP Support
IPv4/IPv6 applications
Security
RADIUS/TACACS+ server, 802.1x, Enable level, HTTP/HTTPS, Dot1x authentication
VLAN
Port-based VLAN, IEEE 802.1Q VLAN, GVRP
Redundant Network
STP/RSTP/MSTP spanning tree protocol and loop protection protocol, CST and MST configuration, second-layer loop elimination, link backup
ESD Protection
Industrial-grade 3rd level ESD protection
Power Supply
Power Consumption
50 Watts Max (220V/50Hz)
Power Inputs
2
Input Voltage

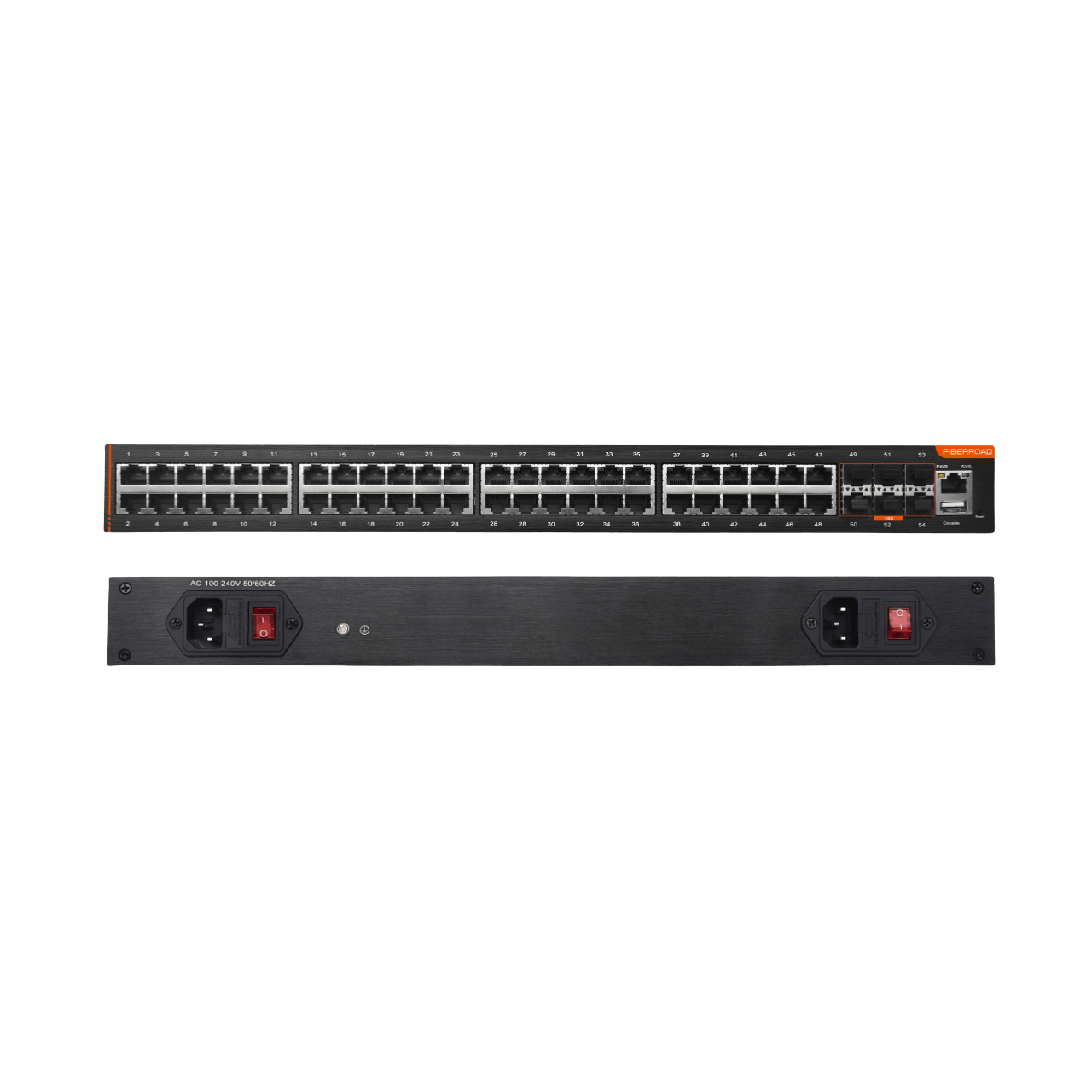

37-75VDC / 110-240VAC, Redundant dual inputs
Connector
DC: Pin 1/2 for Power 1, Pin 3/4 for Power 2; AC: 3 Pin AC Socket
Protection
Overload Current Protection, Reverse Polarity Protection

AVAILABLE MODELS

Industrial L3 Managed 48-port 10/100/1000Base-TX + 6-port 1000M/10GBase-SFP Ethernet Switch with Redundant AC Power Inputs, 1U Rack-mount

TypeVersionRelease Date
Datasheet
FR-9T4648 Product Data Sheet
Datasheet
Manual
Software User Manual
Manual
Manual
Quick Start Guide(Rack Mount)
Manual

Dimensions (W×D×H)
