INDUSTRIAL ETHERNET SWITCHES

Unmanaged Ethernet Switches

FICE1008/FICE2008

Industrial Unmanaged 8-port 10/100Base-TX or 10/100/1000Base-TX PROFINET Ethernet Switch with Redundant DC Power Inputs

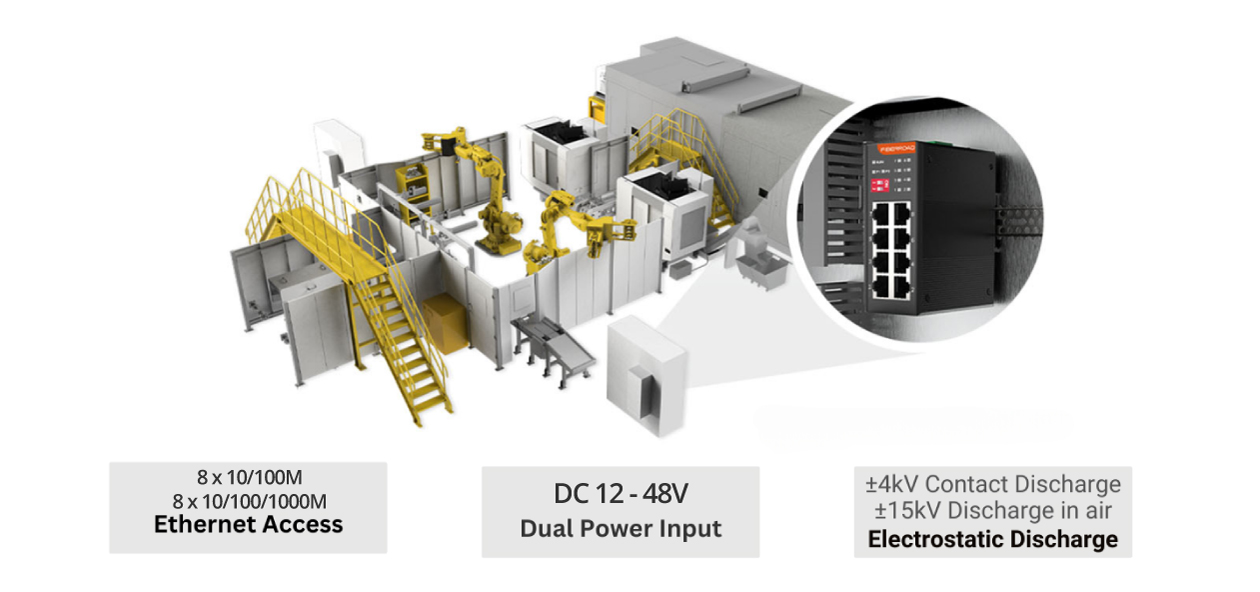

The PROFINET Unmanaged Ethernet Switches are designed for industrial automation networks requiring stable and efficient Ethernet transmission. It provides 10/100/1000Mbps Ethernet ports for connecting PLCs, I/O modules, HMIs, and other automation devices. Its compact design allows installation in space-limited environments such as control cabinets or machine-level installations.

Unmanaged
Redundant DC
Din-Rail
-50°C to 75°C

Enquire Now

DIP Switch supports Broadcast Storm Protection
Auto QoS Priority can automatically adjust the priority of packets based on traffic characteristics and network requirements to ensure real-time transmission of critical data.
Auto PROFINET PTCP Filtering blocks PROFINET PTCP-Delay traffic.
Auto Jumbo Frame technology, which allows the switch to intelligently identify and process jumbo frames, enhances the efficiency and volume of data transmission.

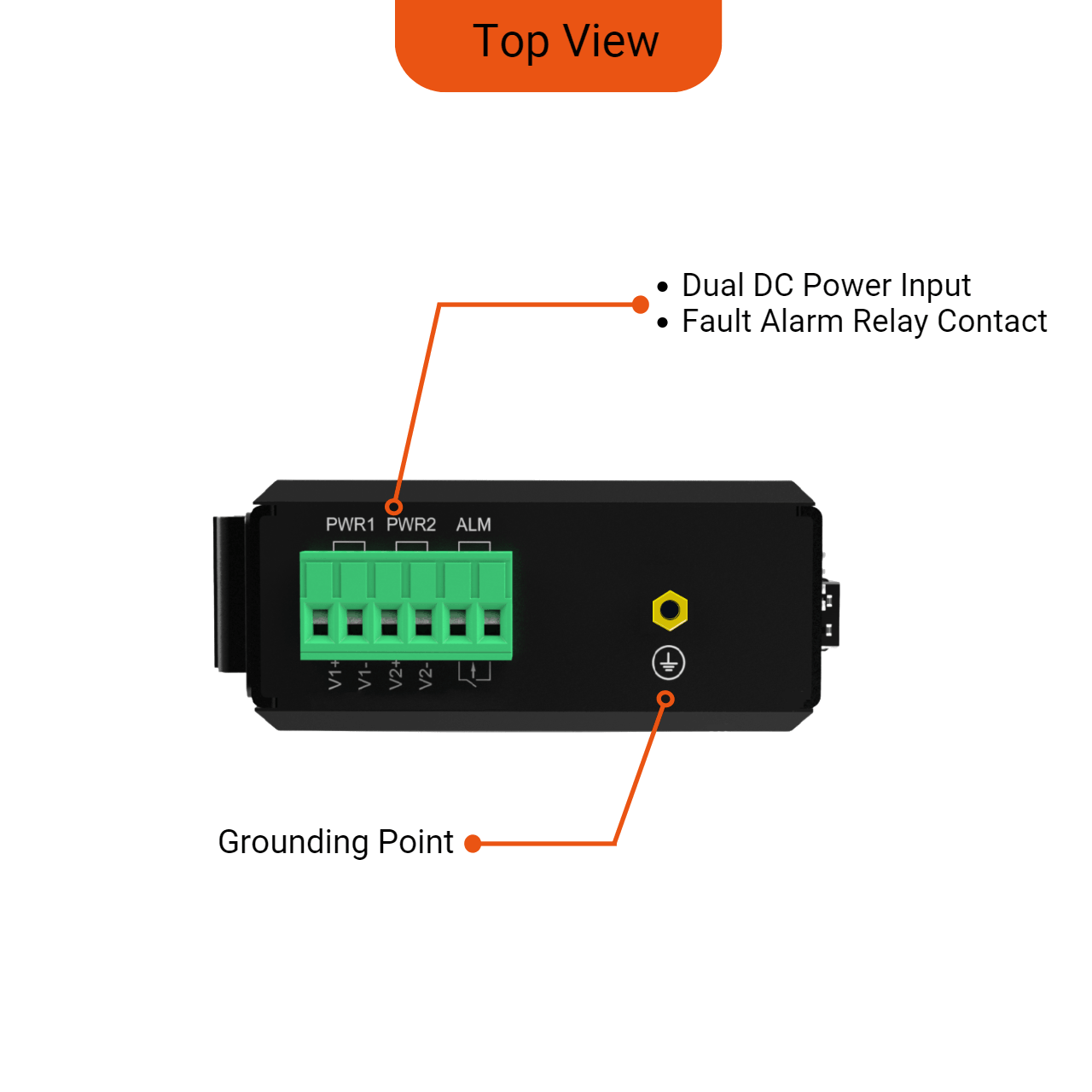

Dual redundant power DC12-48V inputs with industrial surge, spike and reverse power protection.
-40 to +75℃ Operating Temperature

Hardware Specifications

Ethernet Ports

FICE1008: 8× 10/100Base-TX RJ45;

FICE2008: 8× 10/100/1000Base-TX RJ45

Power Supply

Power Input

Dual DC12-48V

Power Consumption

FICE1008: ≤1.6W;

FICE2008: ≤4W

Function

Broadcast Suppression

Yes

QoS-4 Queue

Yes

PROFINET Class A Compliance

Yes

Environmental

Operating Temperature

-40℃ to 75℃

Storage Temperature

-40℃ to 85℃

Operating Humidity

5%~95% (non-condensing)

EMC Immunity Design Specifications

ESD

Air: ±15kV; Contact: ±8kV

Surge

Power supply common-mode ±4kV, differential-mode ±2kV, Ethernet port common-mode ±2kV

EFT

Power supply ±4kV, Ethernet port ±2kV

Physical Characteristics

Housing

High-strength aluminum alloy housing with deep heat sink grooves and fanless cooling design

Dimensions

100mm×43mm×80mm

Net weight

400g

IP Rating

IP40

Installation

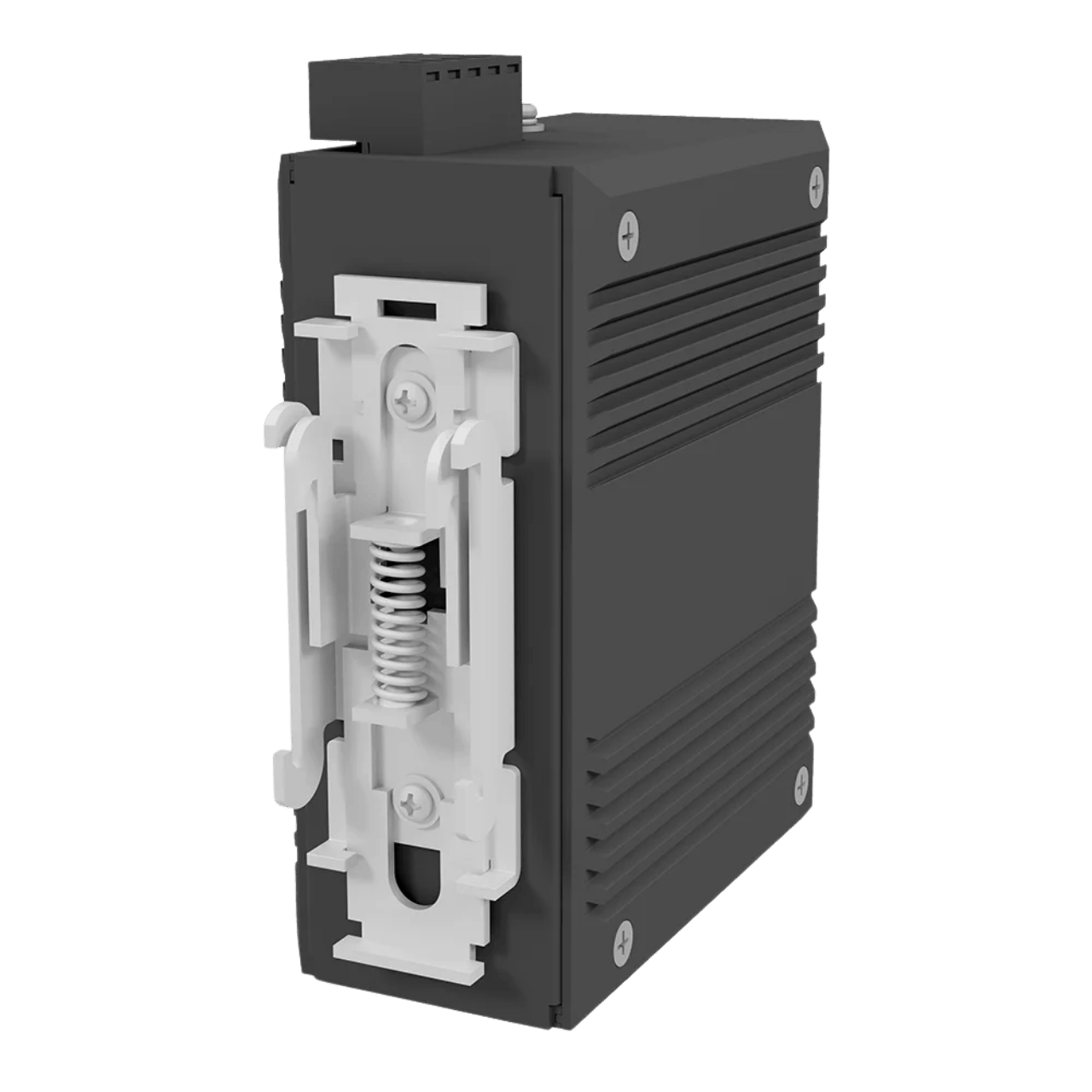

Din-rail installation with standard spring-loaded metal rails

DIP Switch

Broadcast Storm Protection

Function Reservation

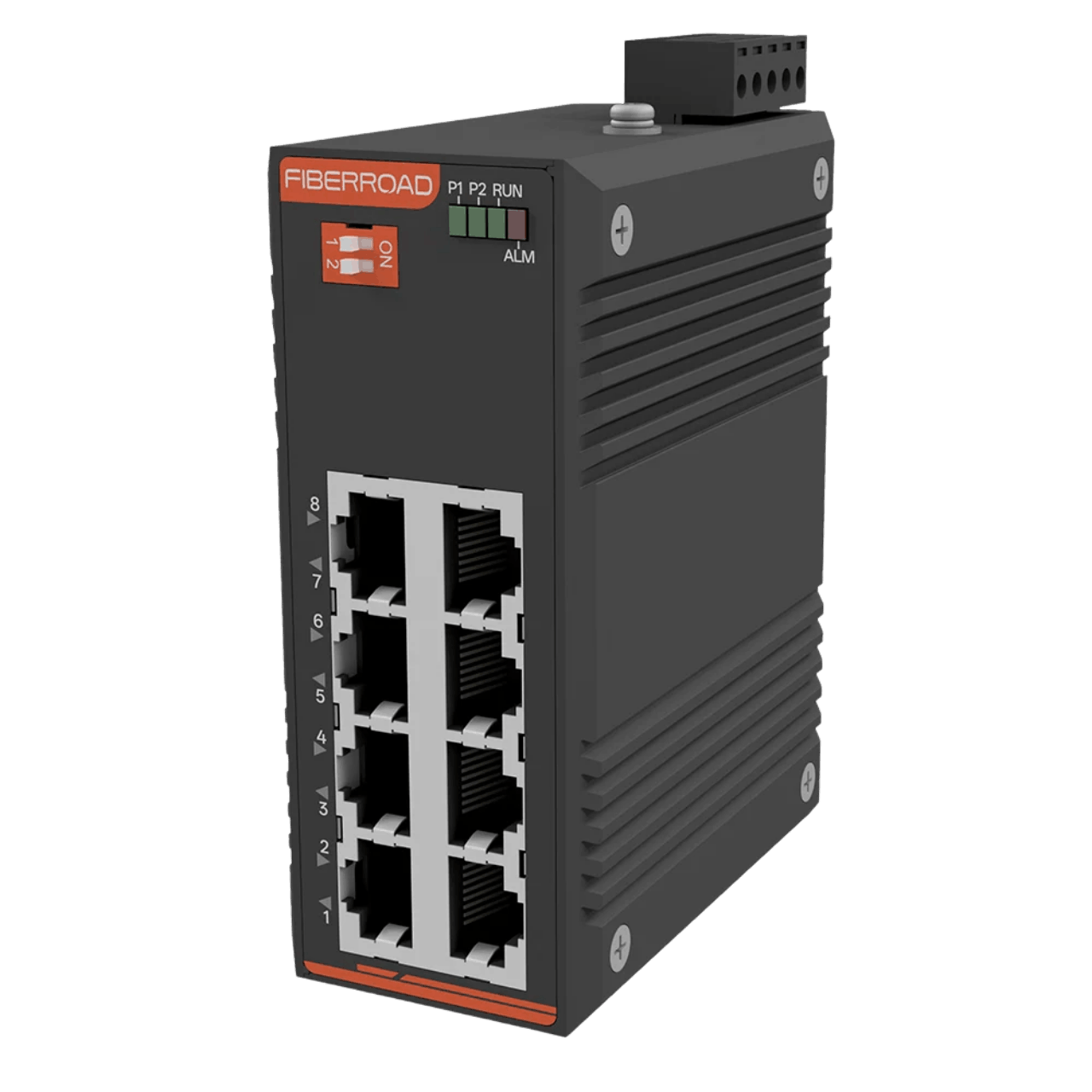

LED Indicators

PI & P2

ON: Power is being supplied; OFF: Power is not being supplied

LINK/ACT

ON: Port connection is active; Blinking: Data transmitted; OFF: Port connection not active

RUN

Blinking: The system is running well; OFF: The system is running unwell

AVAILABLE MODELS

Industrial Unmanaged 8-port 10/100Base-TX or 10/100/1000Base-TX PROFINET Ethernet Switch with Redundant DC Power Inputs

TypeVersionRelease Date

Datasheet

FICE1005_FICE1008_FICE2005_FICE2008 Datasheet

Datasheet

Download
